ตู้ลำโพง Martin Audio Blackline XP15 Powered Loudspeaker 15″
ลำโพง Martin Audio Blackline XP15 แบบมีกำลังขยายในตัว ขนาดดอกลำโพง LF 15 นิ้ว เสียงแหลม HF 1 นิ้ว มีกำลังขยายในตัว 1300W of Class D amplification, Onboard DSP with rotary control interface, Three-band channel EQ, Bluetooth Control
coming soon…..
฿67,900.00
Description

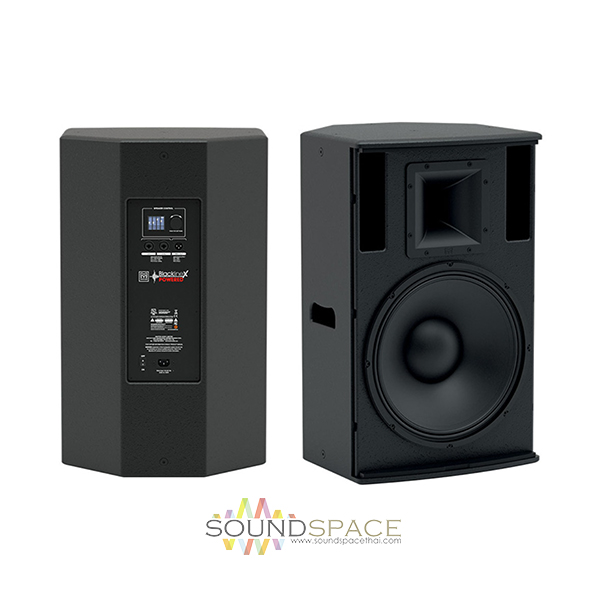

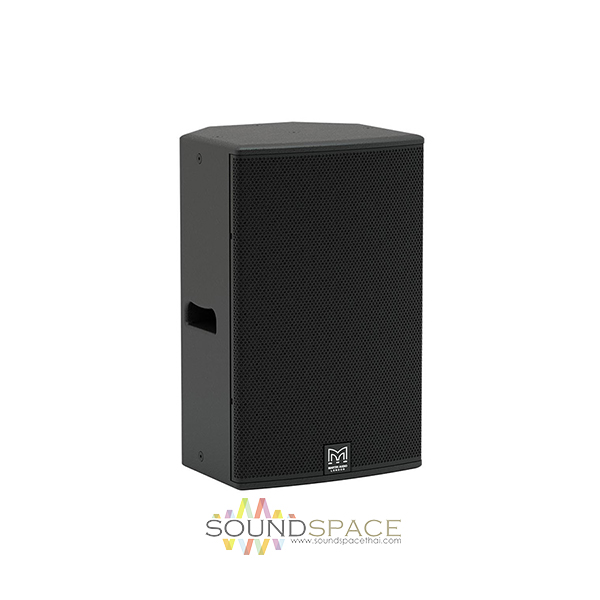

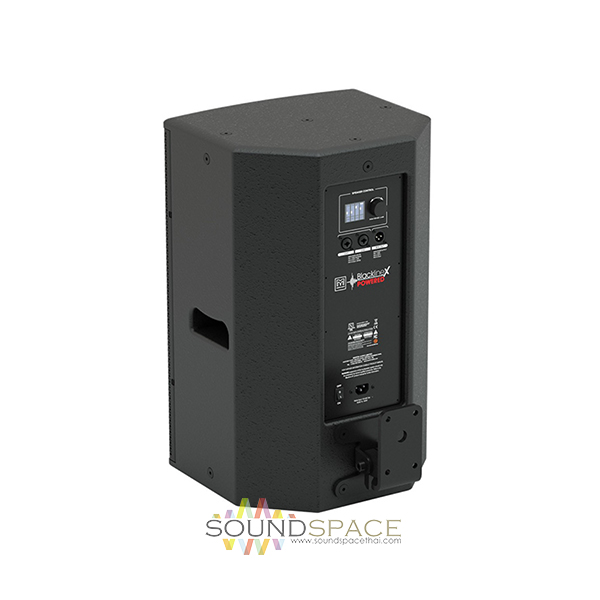

Martin Audio Blackline XP15 Powered 2-way Loudspeaker 15″ 1300W
ลำโพง Martin Audio Blackline XP15 แบบมีกำลังขยายในตัว ขนาดดอกลำโพง LF 15 นิ้ว เสียงแหลม HF 1 นิ้ว มีกำลังขยายในตัว 1300W of Class D amplification, Onboard DSP with rotary control interface, Three-band channel EQ, Bluetooth Control
The XP15 is a self-powered two-way system designed by leading acoustic engineers for indoor portable applications and installations that require powerful performance from a single portable loudspeaker.
Featuring a 15” (380mm)/3” (75mm) voice coil LF drive unit, and a 1” (25mm) exit HF compression driver with a 1.75” (44mm) polyimide diaphragm. With an accurately-defined 80° x 50° coverage pattern, it combines very high output capability with exceptional sonic performance and low frequency impact.
Its Class D amplifier module delivers 1000W LF + 300W HF peak output to the drivers, which are independently protected by RMS and peak limiters. Onboard DSP functions are controlled by a rotary encoder interface and multi-function, easy-to-use colour display on the rear panel.
DSP features include crossover function, a three-channel mixer with three- band EQ on each input channel and a choice of three voicing presets and operating modes for flexible operation without external processing.
The symmetrical, multi-angle enclosure is manufactured from birch and poplar plywood and finished in textured black paint.
It is fitted with M8 inserts for eyebolt suspension plus a pole-mount socket with a removable cap. Its cloth-backed protective steel grille is a spring-fit into the sides of the enclosure for easy access to rotate the HF horn.
Features:
- High output, self-powered, portable two-way system
- 1300W of Class D amplification
- Global power supply with PFC (Power Factor Correction)
- Onboard DSP with rotary control interface
- Multi-function display for metering, control and function selection, Three-channel mixer
- Three-band channel EQ, plus HPF (Ch1/2)
- Independent LF and HF peak and RMS limiters
- Three speaker mode and voicing preset
- Bluetooth® control and streaming option
- Durable plywood enclosure
- User-rotatable 80° x 50° HF horn

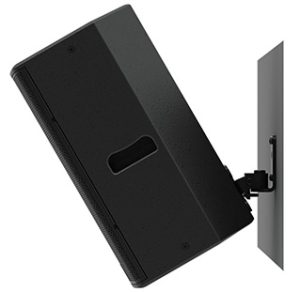

- Vertical and horizontal mounting options

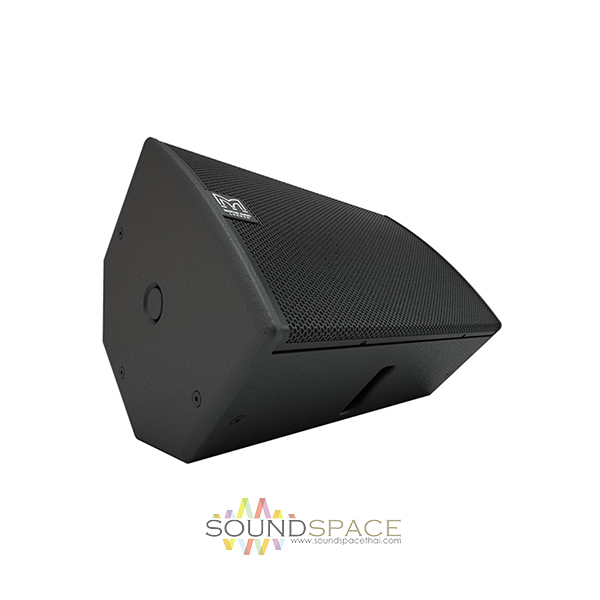

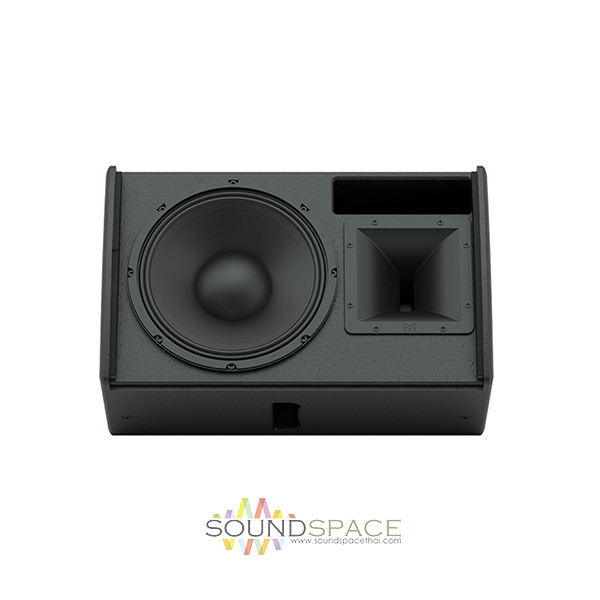

- Symmetrical multi-angle enclosure for PA or stage monitor use
- Screw-free, cloth-backed steel grille
- Integral ergonomic handles
- Mounting options include pole-mount and flying inserts
Specifications
| Acoustics | |
| Type | High output, self-powered two-way system |
| Frequency Response (5) | 55Hz – 20kHz ±3dB -10dB @ 45Hz |
| Drivers | LF: 15” (380mm)/3” (75mm) voice coil ferrite motor system HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver |
| Maximum Spl (9) | 125dB continuous / 131dB peak |
| Dispersion | 80° H x 50° V (user-rotatable) |
| Crossover | 2kHz active, 24dB/octave |
| Module Audio In/Out | |
| Input Connectors | 2 x female XLR/ 1⁄4” jack combo |
| Mic/Line Input Impedance | 8 kΩ balanced |
| 1⁄4” Jack Ts Input Impedance | 1 MΩ unbalanced |
| Mix Output Connector | 1 x male XLR |
| Mix Output Impedance | 600Ω balanced |
| Internal Processing | |
| Input Channel Eq | 3-band on each channel plus HPF (Ch1/2) |
| Speaker Eq | 3 speaker mode/voicing presets |
| Protection | LF and HF Peak and RMS limiting, amplifier thermal protection |
| Amplifier Module | |
| Type | 2 channel switch-mode, class D |
| Peak Output Power | 1300W total 1000W LF, 300W HF |
| Average Efficiency | 89% |
| Cooling | External convection cooled |
| Maximum Ambient Temperature | 35°C (95°F) for full output |
| Power Supply | |
| Type | Switch-mode, fixed frequency with PFC |
| Ac Input Operating Range | 100-240V ~ AC, 50 – 60Hz |
| Power Factor | > 0.98 |
| Nominal Power Consumption | 550W Max |
| Mains Connector | 3-pin IEC |
| Mechanical | |
| Enclosure | Multi-angle birch/poplar ply |
| Finish | Black textured paint |
| Protective Grille | Black perforated steel with scrim cloth backing |
| Fittings | 13 x M8 inserts, pole-mount socket, 2 x pocket handles |
| Dimensions | (W) 427mm x (H) 690mm x (D) 407mm (W) 16.8in x (H) 27.2 x (D) 16.0in |
| Weight | 26kg (57lbs) |
