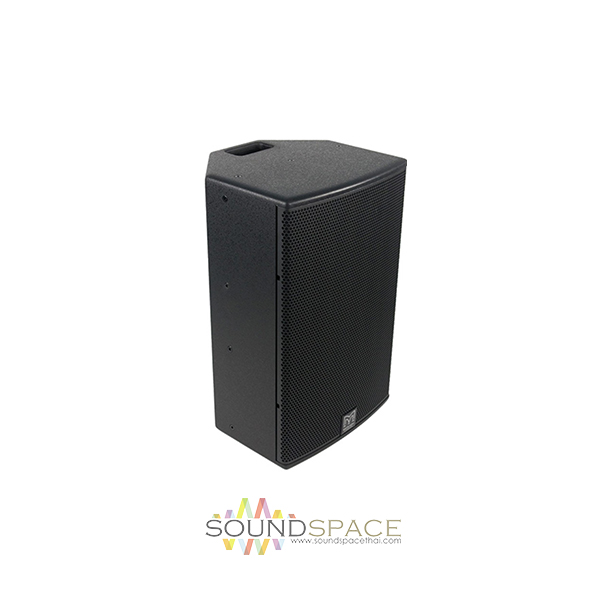

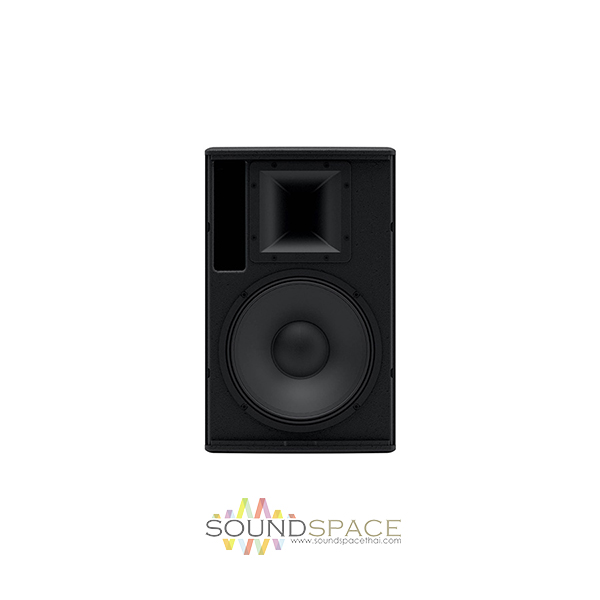

ตุ้ลำโพง Martin Audio Blackline X10B Passive Loudspeaker 10″
ลำโพงแบบไม่มีกำลังขยายในตัว Martin Audio Blackline X10 เป็นลำโพงแบบ 2 Way Passive ขนาดดอกลำโพง LF 10 นิ้ว เสียงแหลม HF 1 นิ้ว ทนกำลังขับ 250 วัตต์ AES, 1000 วัตต์ peak, 8Ω nominal impedance, User-rotatable 90° x 50° horn, Vertical and horizontal orientation
สินค้าเป็นราคาใบละ…..ไม่รวมภาษีมูลค่าเพิ่ม…..
฿32,600.00
Description
Martin Audio Blackline X10 Passive 2-Way Loudspeaker 10″ 250W
ลำโพงแบบไม่มีกำลังขยายในตัว Martin Audio Blackline X10 เป็นลำโพงแบบ 2 Way Passive ขนาดดอกลำโพง LF 10 นิ้ว เสียงแหลม HF 1 นิ้ว ทนกำลังขับ 250 วัตต์ AES, 1000 วัตต์ peak, 8Ω nominal impedance, User-rotatable 90° x 50° horn, Vertical and horizontal orientation
The X10 is a high performance yet very compact two-way passive loudspeaker system which utilises a 10” (250mm)/2.5” (63mm) voice coil LF driver and a 1” (25mm) exit HF compression driver with a 1.4” (35mm) polyimide diaphragm. The rotatable 90° x 50° HF horn has equal horizontal and vertical mouth dimensions for directivity control in both planes.
Features:
- Compact passive two-way system
- Symmetrical multi-angle plywood enclosure
- User-rotatable 90° x 50° horn
- Vertical and horizontal orientation
- Screw-free, cloth-backed perforated steel grille
- Integral ergonomic handle
- Pole-mount bung maintains clean lines
- 8Ω nominal impedance
- Twin NL4 connectors
- Flexible mounting options via M8 inserts
Specifications
| Type | Compact, passive two-way system |
| Frequency Response | 65Hz-20kHz ± 3dB, -10dB @ 55Hz |
| Driver | LF: 10” (250mm)/2.5” (63.5mm) voice coil, ferrite motor system HF: 1” (25mm) exit/1.4” (35mm) voice coil, polyimide dome compression driver |
| Rated Power | 250W AES, 1000W peak |
| Sensitivity | 94dB |
| Maximum Spl | 118dB continuous, 124dB peak |
| Nominal Impedance | 8Ω |
| Dispersion (-6db) | 90° H x 50° V (user-rotatable) |
| Crossover | 2.4kHz passive |
| Enclosure | Multi-angle birch/poplar ply |
| Finish | Black textured paint |
| Protective Grille | Black perforated steel with scrim cloth backing |
| Connectors | 2 x NL4 type |
| Pin Connections (Input) | 1+/1- |
| Pin Connections (Link) | 1+/- to 1+/- |
| Fittings | 19 x M8 inserts, pole-mount socket, 1 x bar handle |
| Dimensions | (W) 324mm x (H) 522mm x (D) 289mm (W) 12.8ins x (H) 20.6ins x (D) 11.4ins |
| Weight | 14kg (30.9lbs) |
| Accessories | Wall bracket, eyebolts |
