เครื่องขยายเสียงระบบประกาศ LAB GRUPPEN CMA1202 Commercial Mixer Amplifier

Name: เครื่องขยายเสียงระบบประกาศ LAB GRUPPEN CMA1202 Commercial Mixer Amplifier
Price: 13500.00 THB
Availability: InStock

เพาวเวอร์มิกเซอร์ LAB GRUPPEN CMA1202 สำหรับงานระบบประกาศ, 8 Mic/Line Inputs with Volume Control, มีกำลังขยาย 2 x 120W, 4/8 Ohms + 70/100V Operation, Individual Master Volume + Treble/Bass, Direct Drive, Constant Power Technology, Rack-mountable 1U, 19″

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

฿13,500.00

สอบถามและสั่งซื้อสินค้า

Category: เพาวเวอร์มิกเซอร์ (Power Mixer) Tag: LAB GRUPPEN

Description

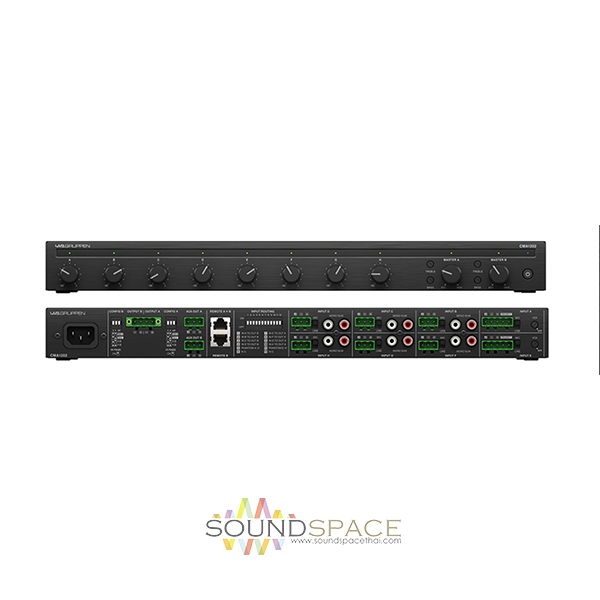

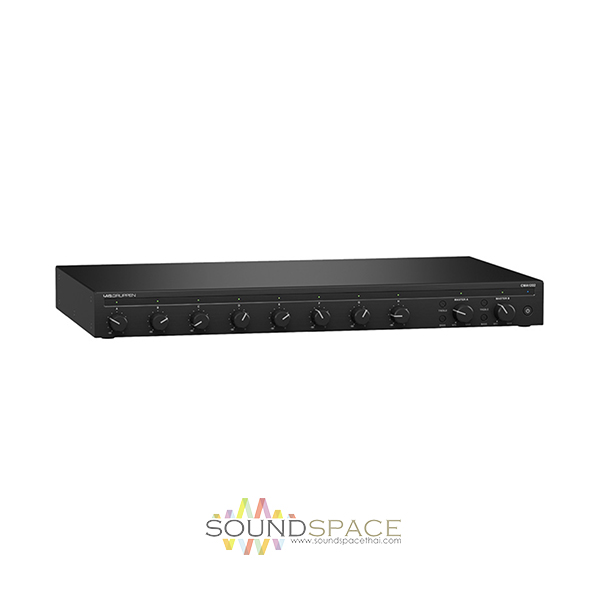

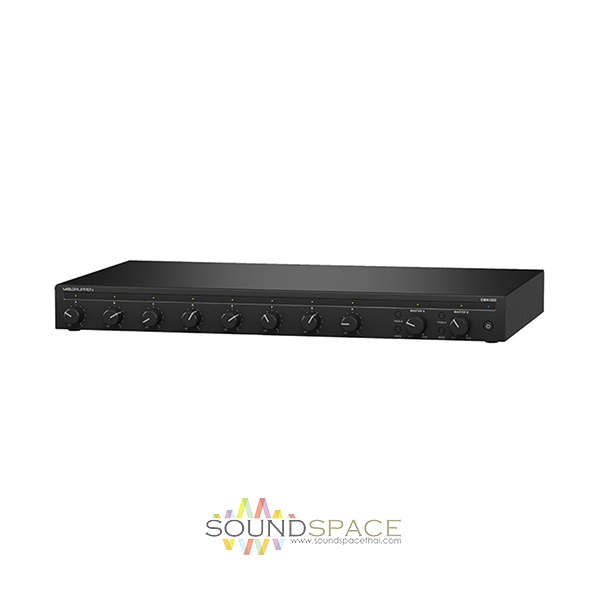

LAB GRUPPEN CMA1202 Commercial Mixer Amplifier 120Wx2

Lab.Gruppen CMA1202, a commercial mixer amplifier that’s the perfect solution for commercial and industrial applications requiring great sounding distributed audio coupled with power conservation and reduced operating expense.

The 8-input mixer features independent volume controls on the front panel as well as individual front panel master volume and bass/treble controls for each output.

The CMA1202 features two 120W channels that are capable of delivering high-quality sound over both Low-Z (4/8 ohms) and High-Z (70/100V) loudspeaker configurations, offering flexibility on every channel. CMA1202 is easy to install and operate, even for non-technical personnel.

It is ideally suited for bars, restaurants, retail destinations, hotels, corporate, education or other venues needing background music and/or a public address system.

Features:

2 x 120 Watt mixer amplifier for commercial and industrial applications
Low-Z (4/8 Ohm) and High-Z (70/100 V) operation per output with switchable high-pass filter
8 mic/line inputs with individual volume controls and output routing
Individual front panel master volume and bass/treble controls for each output
Configurable priority muting function for background music override
Direct drive, constant power technology for superior audio performance and reliability
GPI remote volume control using standard RJ-45 connector and Ethernet cable
Auto Ramp circuitry for quiet and fast power up/down enables real-world energy savings
Front panel power control button for direct access
Aux outputs for expansion to additional amplifiers
Rack-mountable 1U, 19″ enclosure with brackets for rack mounting
Euroblock type mic/line input and output connectors
Convection-cooled, fan-less amplifier technology for low noise

Specifications

Amplifier

Number of Channels	2
Amplifier Power Rating	4 Ohms / 8 Ohms / 70 V / 100 V: 2x 120 W Peak
Amplifier Class	Class-D
Load Impedance / Voltage	Mono/Stereo: 4 / 8 Ohms per Channel (Minimum) Mono/Stereo: 70 V (41 Ohms Minimum) 100 V (82 Ohms Minimum)

Performance

Protections	DC Fault, Overcurrent, Thermal, Ultrasonic
Frequency Response	20 Hz to 20 kHz +0.5/-2 dB
Input Sensitivity	Block Mic: 0.038 V / -26 dBu Block Line: 1.23 V / +4 dBu RCA Line: 0.62 V / -2 dBu
SNR	> 97 dBA
Distortion	< 0.05% (1/8th Rated Power)
Crosstalk	> 70 dB

Signal Processing

Crossover	Yes
EQ	2-Band Shelving EQ per Channel: Treble: ±10 dB at 10 kHz Bass: ±10 dB at 100 Hz
Filters	1x High-Pass: 80 Hz
Ducking/Muting	Yes
Limiting	Output

Connectivity

Analog Audio I/O	2x Block 5-Pin Balanced Line/Mic Input 6x Block 3-Pin Balanced Line/Mic Input 6x 2RCA TS Female Unbalanced Line Input 1x Block 4-Pin Speaker Output 2x Block 3-Pin Aux Output
Digital I/O	No
Network I/O	2x RJ45 Ethernet
USB I/O	No
Phantom Power	48 VDC
Mobile App Compatible	No
Wireless	No

Power

AC Input Power	Universal: 100 to 240 VAC, 50 / 60 Hz (T 6.3 A H 250 V)
AC Power Connector	1x IEC 15 A / NEMA 5-15
Power Consumption	4 Ohms: 70 W (1/8 Power)
