มิกเซอร์ Hill Audio LMD802 Stage Mixer

เครื่องผสมสัญญาณเสียง มิกเซอร์ขนาดเล็ก Hill Audio LMD802, 2 mono microphone, 2 stereo Line inputs with balance,3-band EQ, pan control, Control Room/headphones output


฿4,000.00 ฿3,600.00

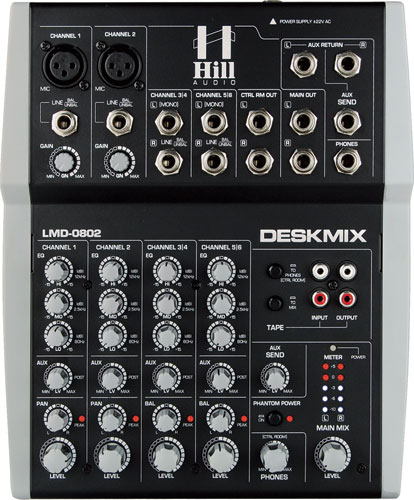

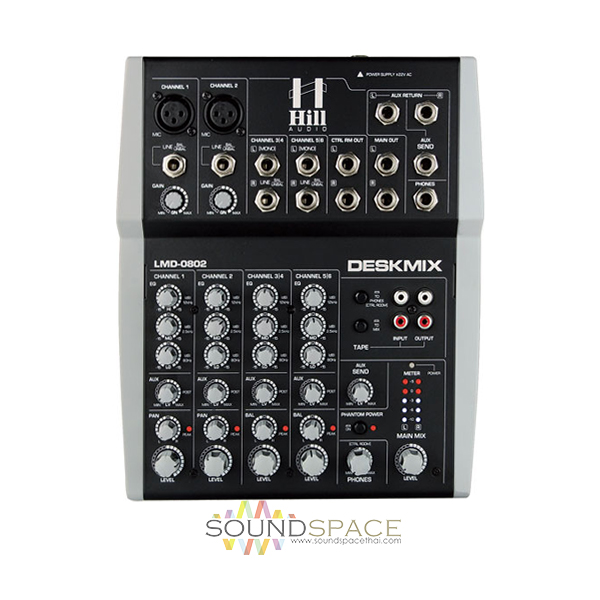

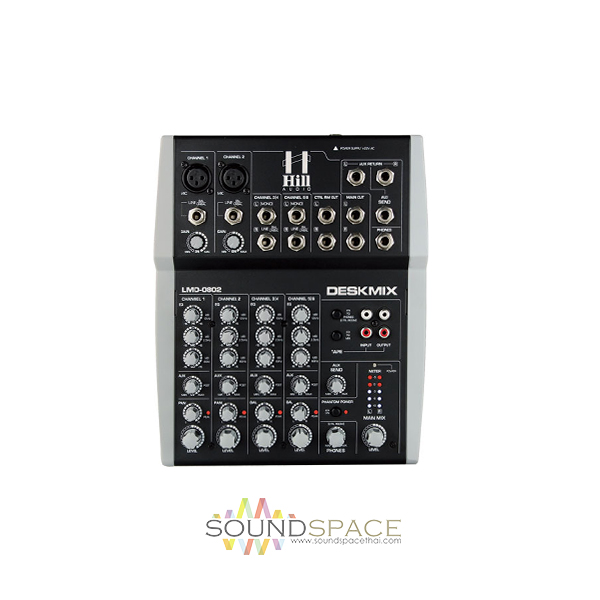

Hill Audio LMD802 Stage Mixer 2 Mono 2 Stereo Inputs

เครื่องผสมสัญญาณเสียง มิกเซอร์ขนาดเล็ก Hill Audio LMD802,  2 mono microphone, 2 stereo Line inputs with balance,3-band EQ, pan control, Control Room/headphones output


Entertainers or duos which heavily rely on stereo sources such as keyboards and accompaniment arrangers, will make the Hill Audio LMD802 their preferred choice. Providing compact and budget-conscious, yet sophisticated preamplification and mixing for two microphones/instruments and two stereo sources,

The LMD802 grants great sound from a simple setup in a breeze. Microphones can either be of the dynamic or condenser type, given that a +48V phantom power is built in. The post-volume AUX bus with stereo return facilitates the integration of external effects if required. An external symmetrical AC power supply, connected to the mixer via a locking mini XLR connector, provides for low hum and noise and thus outstanding audio performance.


  • 2 mono microphone inputs with wide-range gain control covering microphone and line signal sensitivities
  • Switchable +48V phantom power for microphone inputs
  • 3-band EQ, post-volume Aux (EFX) bus, pan control, Peak LED and volume control for both mono inputs
  • 2 stereo Line inputs with 3-band EQ, post-volume Aux (EFX) bus, balance control, Peak LED and volume control
  • Stereo tape record/playback port with flexible routing options (to main mix, to control room)
  • Control room/headphones output with adjustable volume
  • Main output with volume control
  • 2×5 LED level meter for main output
  • AUX send/return connections for external effects with adjustable send volume and stereo return port
  • External symmetrical AC power supply for lowest hum and high dynamics, connected via locking 3-pin mini XLR
  • Full metal case
  • CE/ROHS compliant


  • Preamp Noise (EIN) 20 Hz to 20 kHz, (150Ω source): -118dB
  • Residual Output Noise All level controls @ minimum: -88dB
  • Crosstalk Same channel (stereo separation): -82dB
  • Frequency response +0 / -1dB: 10Hz-22kHz
  • THD Mic In to Main Out, 20Hz to 20kHz: 0.013%
  • AC IN (EU version): AC220-250V~ 50Hz
  • Dimensions: W212xH255xD60mm
  • Weight without PSU (PSU=0.55kg): 1.45kg
