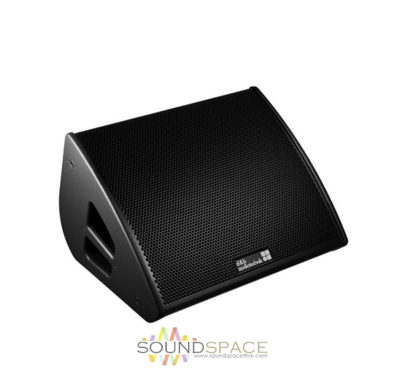

ลำโพง d&b audiotechnik M2 Monitor 2-Way Stage Monitor 2×12″

ลำโพงสเตจมอนิเตอร์ d&b audiotechnik M2 เป็นลำโพงมอนิเตอร์ขนาด 2 x 12″ driver 1.4″ compression driver with CD Horn, ทนกำลังขับ (RMS/peak 10 ms) Low 500/2000 W, High 50/200 W, impedance 4 Ω (LOW) / 8 Ω (HIGH), Dispersion 45° x 60° Max SPL 143 dB

ปรึกษา-ออกแบบระบบ Contact Us 086-3114142

สอบถามและสั่งซื้อสินค้า

Description

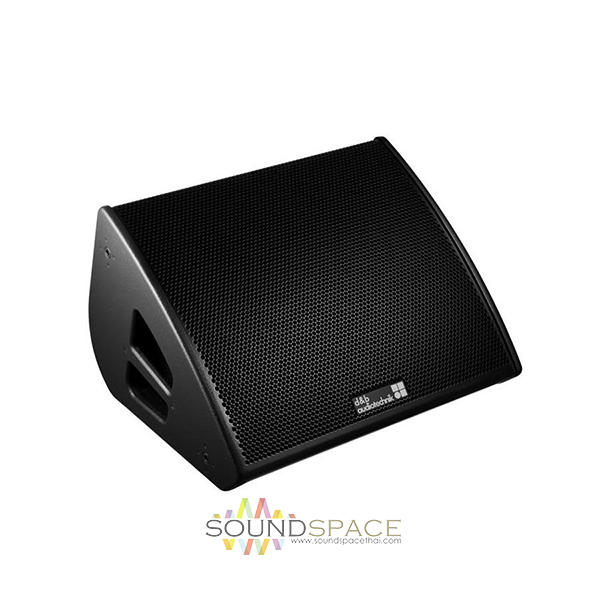

d&b audiotechnik M2 Monitor 2-Way Stage Monitor 2×12″ 500W

ลำโพงสเตจมอนิเตอร์ d&b audiotechnik M2 เป็นลำโพงมอนิเตอร์ขนาด 2 x 12″ driver 1.4″ compression driver with CD Horn, ทนกำลังขับ (RMS/peak 10 ms) Low 500/2000 W, High 50/200 W, impedance 4 Ω (LOW) / 8 Ω (HIGH), Dispersion 45° x 60° Max SPL 143 dB

The d&b audiotechnik M2 is a 2-way high performance stage monitor, with a peak sound pressure level of 143 dB. Its design uses a low height cabinet, achieves a constant directivity of 45° x 60° > 600 Hz and significantly raises the feedback stability margin. Together with the cabinets baffle angle of 40° (to floor), the dispersion performance offers a realistic artist listening area starting directly above the cabinet and reaching quite far upstage.

The result is a loudspeaker system with remarkable vocal presence, clarity and neutral, balanced sound. The M2 cabinet is constructed from marine plywood, incorporates handles and has an impact resistant paint finish. Two fittings, which accept ball-lock shackle pins, are located on each side of the cabinet allowing quick and flexible rigging.

Features:

  • High performance 2-way stage monitor
  • Components 2 x 12″ driver 1.4″ compression driver with CD horn
  • Power handling capacity LOW (RMS/peak 10 ms) 500/2000 W
  • Power handling capacity HIGH (RMS/peak 10 ms) 50/200 W
  • Impedance 4 Ω (LOW) / 8 Ω (HIGH)
  • Dispersion Angle (H X V) 45° X 60°
  • Max SPL 143 dB

Amplifiers recommended:

The d&b audiotechnik loudspeaker range is designed exclusively for operation with d&b amplifiers. These provide power as well as comprehensive control and protection functions tailored to achieve the performance, reliability and longevity associated with the d&b System approach. The M2 monitor must be driven in 2-Way active mode, requiring two amplifier channels. The d&b D80 and 30D amplifiers are recommended to drive the M2.

Specifications

System data
Frequency response (–5 dB standard) 50 Hz – 17 kHz 4
Max. sound pressure (1m, free field)1
with 30D
with D80
143 dB
143 dB
Cabinets per D80/30D 4
Loudspeaker data
Configuration High performance 2-way stage monitor
Nominal impedance 4 Ω (LOW) / 8 Ω (HIGH)
Power handling capacity LOW (RMS/peak 10 ms) 500/2000 W
Power handling capacity HIGH (RMS/peak 10 ms) 50/200 W
Nominal dispersion angle (h x v) 45° x 60° 11
Components 2 x 12″ driver
1.4″ compression driver with CD horn
Connections 2 x NLT4 F/M
optional 2 x EP5 or 2 x NL8
Dimensions, weight
Dimensions (H x W x D) 419 x 680 x 560 mm 2
16.5 x 26.8 x 22.1″ 2
Weight 38 kg
83 lb
  • 1 SPL max peak test signal: pink noise with crest factor 4
  • 2 overall dimensions (projected footprint)
  • 4 with floor coupling
  • 11 ≥ 600 Hz

Application information is presented for guidance only. d&b reserves the right to make any necessary changes to the products and the published specifications. As part of the ongoing development program d&b tries to maintain the highest degree of product compatibility.
