เครื่องบันทึกเสียงพร้อมมิกเซอร์ Zoom LiveTrak L6 Digital Mixer and Multitrack Recorder

Name: เครื่องบันทึกเสียงพร้อมมิกเซอร์ Zoom LiveTrak L6 Digital Mixer and Multitrack Recorder
Price: 10725.00 THB
Availability: InStock

มิกเซอร์พร้อมเครื่องบันทึกเสียง Zoom LiveTrak L-6, 10-ch Digital Mixer with 32-bit Float 12-track Recording, 12-in/4-out USB Audio Interface, 2 x XLR/TRS Combo Jack In, 4 x Stereo In, USB-MIDI, MIDI I/O, 4 x Sample Pad, microSD Slot, and Battery-powered Operation – Mac/PC/iOS

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

~~฿14,300.00~~ ฿10,725.00

สอบถามและสั่งซื้อสินค้า

Category: ไมโครโฟนไร้สาย (WireLess Mic) Tag: ZOOM

Description

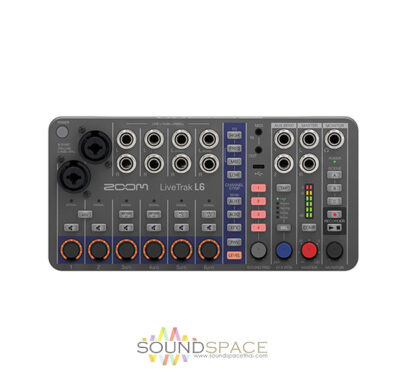

Zoom LiveTrak L-6 Portable 6-Channel Digital Mixer and Multitrack Recorder

the Zoom LiveTrak L-6 is a small, portable, battery powered digital mixer and recorder, providing tactile controls and intuitive functionality, so you can start a music recording session in minutes. The L-6 offers two combo XLR-1/4″ mic/line inputs and four stereo pairs of 1/4″ line inputs, as well as four sound pads, two aux sends, and five internal send effects.

Each channel offers channel strip controls including Level, Pan, Aux 1, Aux 2, and a 3-band EQ with adjustable mid. Whether you record to an SD card, stream via USB to a computer or iOS mobile device, or do both at the same time, the LiveTrak L-6 gives you up to 6 channels (10 inputs) of simultaneous multitrack recording.

Features:

Ultra-compact 10-channel digital mixer supports versatile operation in a mobility-minded form factor, optimized for synth and beat-production rigs
32-bit float recording ensures premium fidelity with streamlined exports via onboard microSD card reader
Multimode functionality expands the mixer to be used as a 12-in/4-out recording interface
Built-in MIDI I/O and USB-MIDI extend performance controls and USB-MIDI interface usage to encompass multitudes of live or studio mixing and performing
4 customizable sound pads allow you to queue and perform with recorded samples for expanded creative control
Dual XLR/TRS combo jacks and 4 stereo-capable inputs provide 10 points of flexible audio connection
2 dedicated auxiliary send outputs and 5 internal send FX support diverse sonic contouring with internal and external hardware and software integration
Diverse Eurorack and MIDI compatibility allow for extensive modularity and creative interoperative use with nearly any setup of physical, virtual, analog, and digital gear
Adaptable USB- or battery-powered operation means uncompromising performance anywhere

Specifications

Mixer

Max I/O Capacity	6x Input / 6x Output
Number of Analog Input Channels	6 (2 Mono / 4 Stereo)
Number of Mic Preamps	2
Number of Analog Output Channels	4
Mix Routing	2x Mono Aux Send 1x Stereo Main LRC
Presets	3x Scene
Faders & Level Adjustment	6 Channel Knob
Meters	Main Meter: 2x 6-Segment LED

Signal Processing

EQ	3-Band EQ
EQ Parameters	1x HF Shelf: ±15 dB at 10 kHz 1x MF Peak: ±15 dB at 100 Hz to 8 kHz 1x LF Shelf: ±15 dB at 100 Hz
Graphic EQ	No
Solo/Mute	Mute per Input Channel
Built-In Effects	5x Stereo Effect (Type Unspecified)
Audio Delay	No
Automatic Mic Mixing	No

Digital Audio

Sample Rates	48 kHz
Bit Depth	Up to 32-Bit

Performance

Frequency Response	20 Hz to 20 kHz -1 dB
Max Input Level	Combo XLR-1/4″ Mic/Line Input: +4 dB (Mic) +24 dB (Line) 1/4″ TS Line Input: +9 dB
Headphone Output Power	50 mW per Channel into 63 Ohms (Max)
I/O Impedance	XLR Line/Mic Input: 3.8 Kilohms 1/4″ TRS Line Input: 39 Kilohms 1/4″ TRS Aux/Main Output: 147 Ohms 1/4″ TRS Monitor Output: 14.7 Ohms
Signal Generator	No

Connectivity

Analog Inputs	2x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line Input 8x 1/4″ TS Balanced/Unbalanced Line Input (4 Stereo Pairs)
Analog Outputs	2x 1/4″ TRS Balanced/Unbalanced Aux Send 2x 1/4″ TRS Balanced/Unbalanced Stereo Main Output (1 Stereo Pair) 1x 1/4″ TRS Unbalanced Stereo Headphone Output
Phantom Power	+48 V
Digital I/O	No
MIDI I/O	No
USB I/O	1x USB-C 2.0 (Host Connection)
USB I/O Capacity	12x Input / 4x Output
Expansion Ports	No
Wireless	No
External Display I/O	No
