ชุดตู้ลำโพงไลน์อาเรย์ WORK ARION 5 แบบมีแอมป์ในตัว ในชุดประกอบด้วยลำโพงไลน์อาเรย์กลางแหลม 4 ตู้ (ใน 1 ตู้เป็นลำโพง 5 นิ้ว 2 ดอก เสียงแหลม 1.75 นิ้ว) และตู้ซับเบส 1 ตู้ ขนาดดอกลำโพง 15 นิ้ว มีกำลังขับ 800W peak in bass, 650W peak in midrange and 150W peak in treble, Clase-D Amplifier พร้อมชุดแขวน
฿212,000.00
ชุดตู้ลำโพงไลน์อาเรย์ WORK ARION 5 แบบมีแอมป์ในตัว ในชุดประกอบด้วยลำโพงไลน์อาเรย์กลางแหลม 4 ตู้ (ใน 1 ตู้เป็นลำโพง 5 นิ้ว 2 ดอก เสียงแหลม 1.75 นิ้ว) และตู้ซับเบส 1 ตู้ ขนาดดอกลำโพง 15 นิ้ว มีกำลังขับ 800W peak in bass, 650W peak in midrange and 150W peak in treble, Clase-D Amplifier พร้อมชุดแขวน

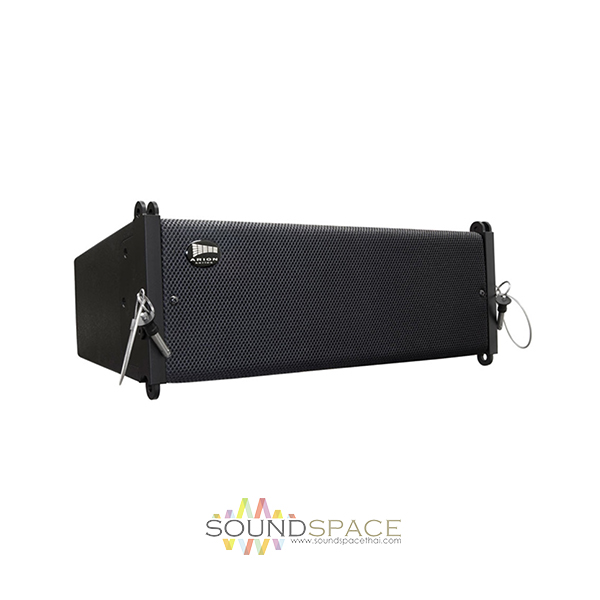

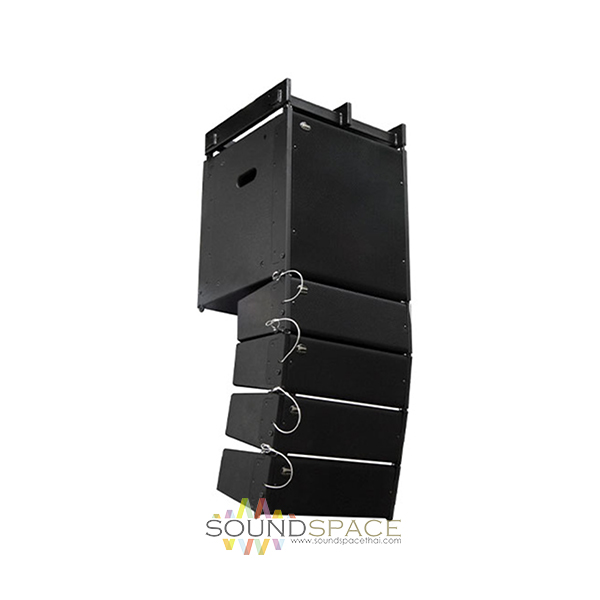

ARION 5 is an active three-way line array, composed of 4 SL 025 units and 1 SL 115 A unit. Each SL 025 consists of 2 5.25″ loudspeakers and a 2.2″ compression driver with polymer membrane attached to the VI-5 waveguide. The SL 115 SA subwoofer cabinet uses a 15″ driver, with a 3.5″ voice coil.
It has digital signal processing, and the power is provided by a Class D amplifier of 800W peak in bass, 650W peak in midrange and 150W peak in treble, which incorporate thermal and overload protections. Independent RMS and peak limiters are used on each path.
LF Transducer | Woofer 15″, Voicecoil 3.5″ |
MF transducer | 2 x woofer 5″, Voicecoil 1.46″ |
HF Transducer | Driver compression 2.2″, exit 1.75″ |
LF amplifier | Clase-D 800 W peak |
MF amplifier | Clase-D 650 W peak |
HF amplifier | Clase-D, 150 W peak |
Input Impedance | 10 KOhm |
Input Sensitvity | +4 dBu |
Max SPL | 122 dB |
Horizontal coverage | 140º |
Material | Birch plywood |
Finished | Polyurethane paint |
Power supply | 115Vac/230Vac, 50Hz/60Hz |
Consumption | 2 A |
Dimensions | Satellite: 165x490x251 mm, Subwoofer: 521x490x492 mm |
Weight | Satellite: 9.2 Kg, Subwoofer: 33.5 Kg |

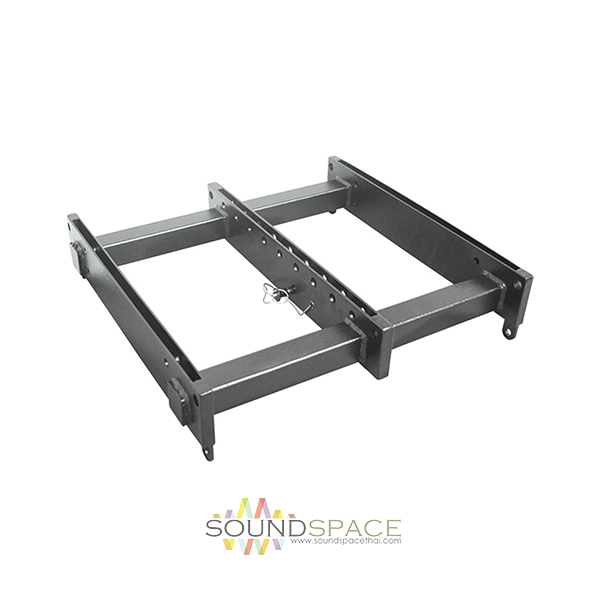

Includded accessories | Flying support, interconnecting cables |
Connections | Audio In: Female XLR & Stereo RCA, Audio Out: Male XLR, Power Input: IEC, Satellite Output: Speakon NL4 |
Protections | RMS limiter and Peak |
