ดิจิตอลสเตจบ๊อก WAVES DSPRO StageGrid 4000

Name: ดิจิตอลสเตจบ๊อก WAVES DSPRO StageGrid 4000
Brand: WAVES
SKU: 38429
Price: 219000.00 THB
Availability: InStock

฿219,000.00

ดิจิตอลสเตจบ๊อก WAVES DSPRO StageGrid 4000 SoundGrid Stagebox for Use with eMotion LV1 Mixer, with 32 Analog Mic/Line Inputs, 16 Analog Line Outputs, 4 Stereo AES/EBU Ins/Outs, and 44.1-96 kHz Sample Rate, 4 RU Rackmountable Chassis

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

สอบถามและสั่งซื้อสินค้า

Category: RACK/อุปกรณ์/อะไหล่ Tag: WAVES

แชร์สินค้านี้: Facebook X LINE

Description

Waves DSPRO StageGrid 4000 32-Input / 16-Output Digital SoundGrid Stagebox

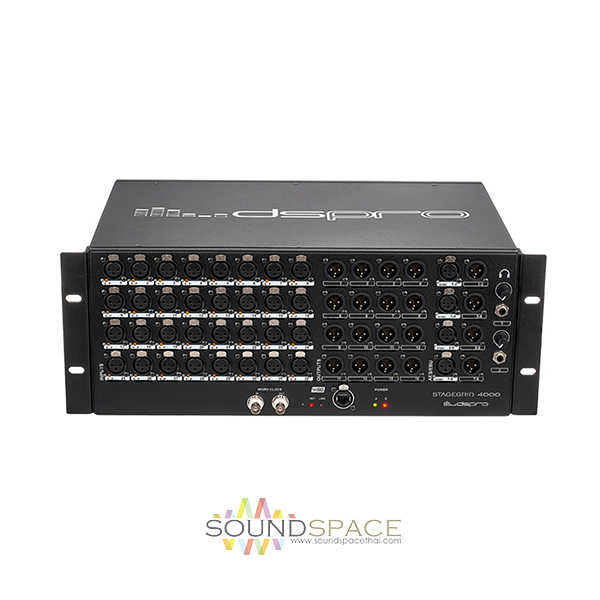

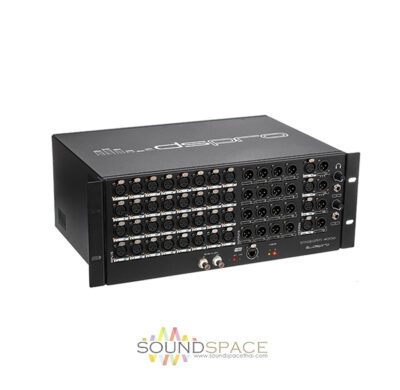

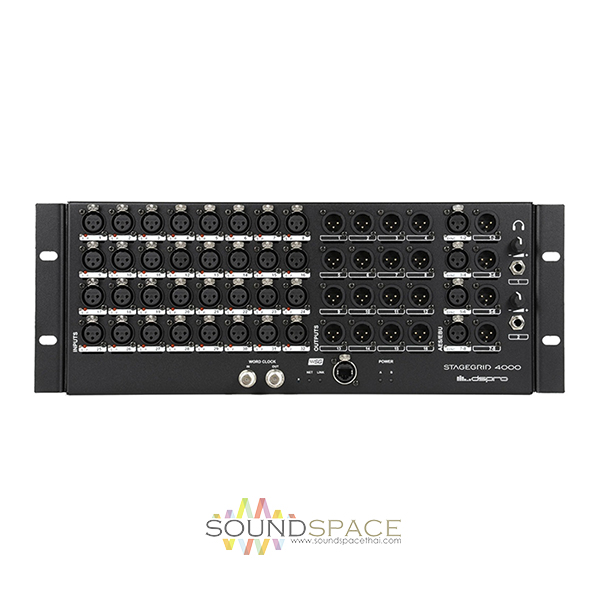

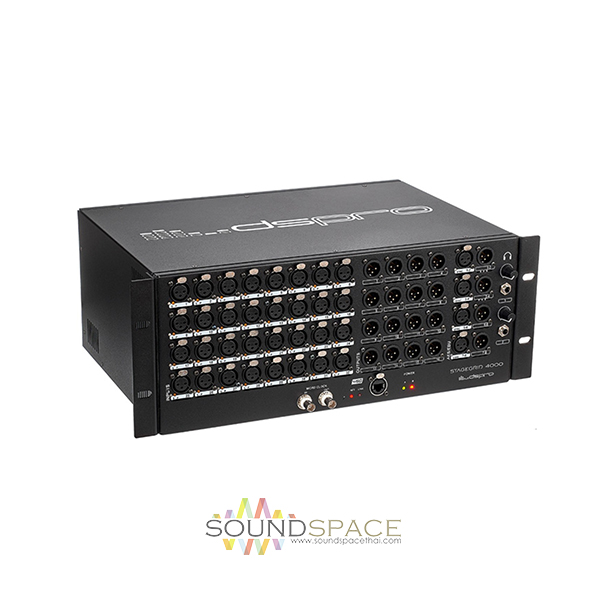

Waves DSPRO StageGrid 4000, a digital stagebox housed in a rugged 4 RU rackmountable chassis. With a secure etherCON port designed for simple hookup to an eMotion LV1 live mixer or any other SoundGrid-compatible hardware/software.

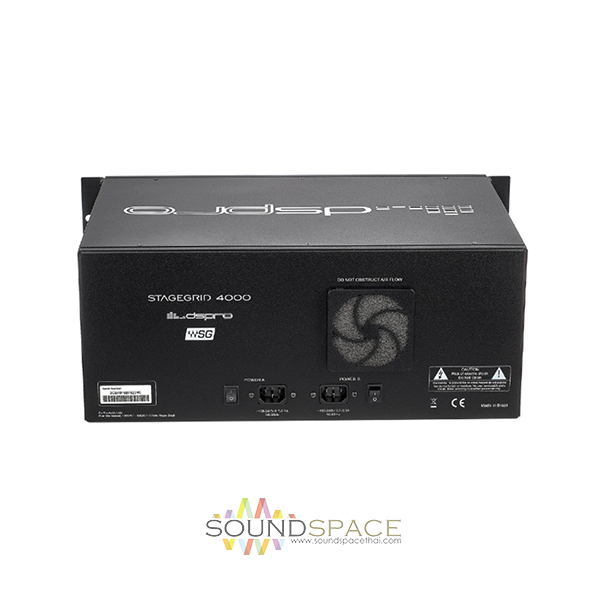

The StageGrid 4000 integrates easily into your stage- or studio-based setup. Its redundant AC power supply enables the stagebox to continue working even if power to primary power supply fails.

Each of the digitally controlled preamps offers up to 60 dB of gain, 48V phantom power with LED indication, and a locking XLR mic/line input jack. Analog outputs include 16 balanced XLR line outs and two 1/4″ stereo headphone output with their own level controls.

BNC wordclock I/O allows proper synchronization with other digital equipment, and eight channels of AES3 I/O are present for routing multichannel digital signal in and out of the stage box.

Features:

32-in/16-out I/O interface for Waves SoundGrid systems
Makes a top-shelf companion to your eMotion LV1 live mixer
Ideal for use at front of house or monitors
32 mic/line inputs with top-shelf preamps
16 balanced analog line outputs on high-quality XLR connectors
Stereo AES/EBU digital I/O for added flexibility
2 convenient headphone outputs make monitoring easy
Configurable sample rate of 44.1kHz, 48kHz, 88.2kHz, and 96kHz
Integrates seamlessly with your SoundGrid network components through Ethernet
Rugged 4U rack-mountable chassis

Specifications

Analog Inputs	32 x XLR 3-Pin Female Balanced Mic/Line Inputs (Locking)
Analog Outputs	16 x XLR 3-Pin Male Balanced Line Outputs 2 x 1/4″ TRS Female Unbalanced Headphone Outputs
Digital I/O	4 x XLR 3-Pin Female AES3 Inputs 4 x XLR 3-Pin Male AES Outputs
Network Ports	1 x Neutrik etherCON GbE SoundGrid Port
Sync I/O	1 x BNC Female Wordclock Input 1 x BNC Female Wordclock Output
Phantom Power	48 VDC (On/Off Switchable per Channel)
Frequency Response	20 Hz to 40 kHz (±0.1 dB, 96 kHz Sample Rate)
Gain Range	-4 to 60 dB
Maximum Input Level	+28 dBu (-4 dB Gain)
Maximum Output Level	+24 dBu (at 0 dBFS)
Headphone Output Power	150 mW per Channel on 16 Ohms
Input Impedance	Analog In: 2.9 Kilohms AES3 In: 110 Ohms Word Clock: 75 Ohms
Output Impedance	Analog Out: 50 Ohms AES3 Out: 110 Ohms Word Clock: 75 Ohms
Phase Shift	Analog In: <10° at 20 kHz Analog Out: <5° at 20 kHz
Dynamic Range	Analog In: 115 dB (-60 dBFS, +20 dB Gain, 1 kHz, A-Weighted) Analog Out: 115 dB (-60 dBFS, 1 kHz, A-Weighted) Headphone Out: 100 dB
THD	Analog In/Out: 0.002% (-1 dBFS, +20 dB Gain, 1 kHz, A-Weighted)
EIN	-128 dBu A-Weighted (+60 dB Gain, 150-Ohm Load)
Sample Rate	44.1 to 96 kHz
Word Clock	Voltage Level: 5 V TTL
Power Requirements	110 or 240 VAC, 50/60 Hz
Power Consumption	60 W
Operating Temperature	32 to 104°F / 0 to 40°C
Relative Humidity	Up to 90% Noncondensing
Rackmount	Rackmountable in 4 RU of Rack Space
Dimensions	16.9 x 6.9 x 11.8″ / 43 x 17.6 x 30 cm (Excluding Connectors)
Weight	17.4 lb / 7.9 kg
