ชุดไมโครโฟนมิกซ์กลอง Telefunken DD5 Drum Microphone Pack ในชุดประกอบด้วยไมค์ Telefunken 5 ตัว M82 Mic for Kick Drum 1 ตัว, M80-SH Mic for Snare Drum 1 ตัว, M81-SH Mics for Toms 3 ตัว, เป็นไมค์แบบไดนามิค มาพร้อมกล่อง Hard Shell Flight Case สายไมค์ ยาว 5 เมตร 5 เส้นและ Metal & Plastic Mounts

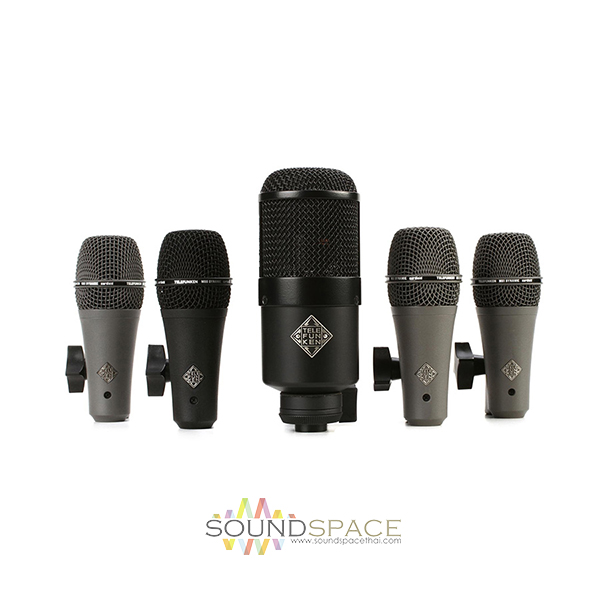

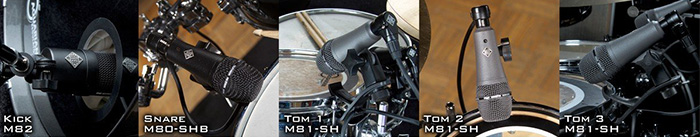

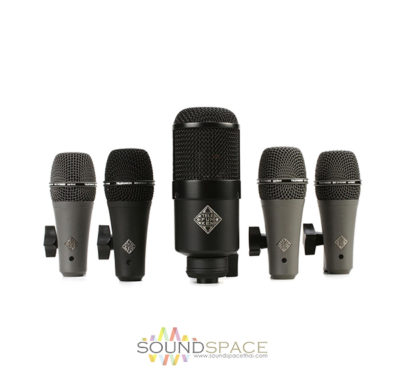

TELEFUNKEN Elektroakustik has combined the three unique voices of its TEC Award winning Dynamic Series microphone line, and packaged them as the DD5 Drum Microphone Set for drum recording and live performance applications. Each microphone set consists of the M82 handling kick drum duties, the M80-SH on snare, and the M81-SH for toms.

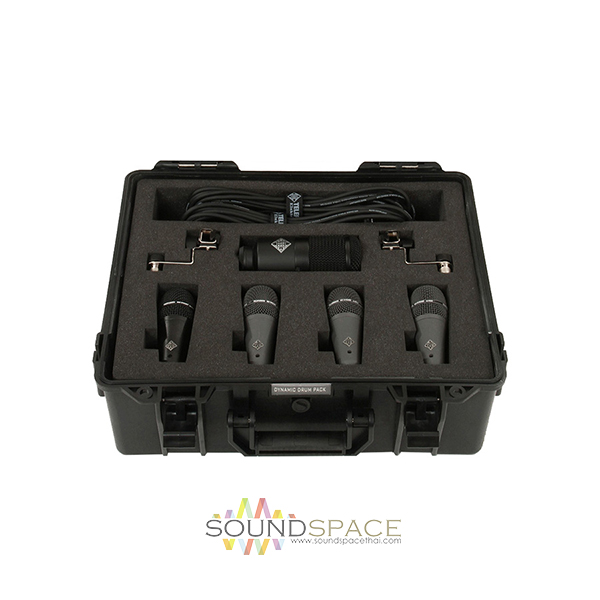

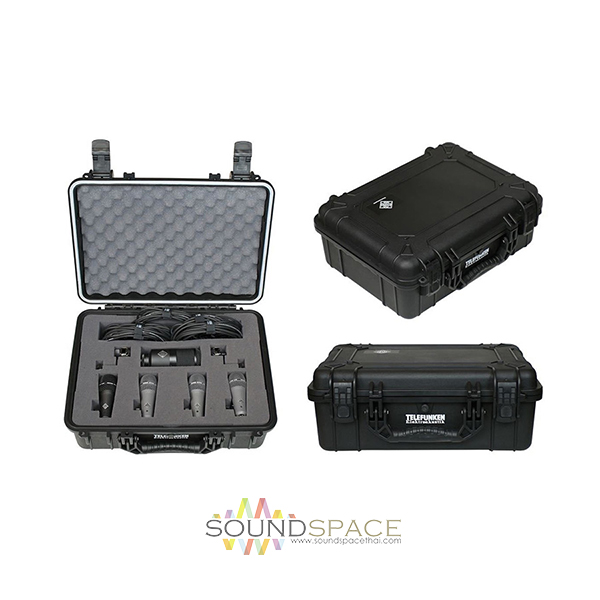

The DD5 ship in the heavy-duty hard shell FC80 flight case and include multiple drum mounts (M782, M784 and M785) and a SGMC-5R five-meter XLR cable with a right angle female connector for each microphone in the set.

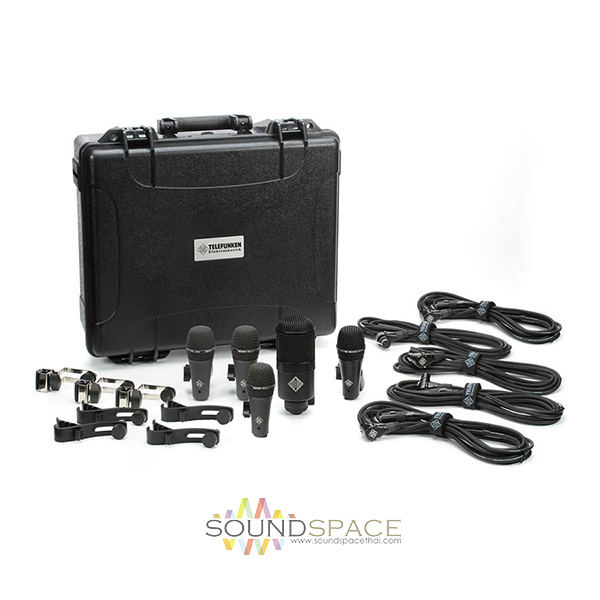

DD5 Drum Microphone Set includes:
1x M82 with M782 mount
1x M80-SH with M784 (metal) and M785 (plastic) mount
3x M81-SH with M784 (metal) and M785 (plastic) mount
5x SGMC-5R five-meter XLR with right angle female connector
1x HC85 Hard Shell Flight Case
Specifications
M82 Large Diaphragm Dynamic Microphone
Analog Performance
Transducer
Dynamic
Diaphragm
1.38″ / 35.0 mm
Polar Pattern
Cardioid
Frequency Range
25 Hz to 18 kHz
Maximum SPL
146 dB SPL
Impedance
300 Ohms
Sensitivity
1.85 mV/Pa
Low-Cut Filter
6 dB/Octave @ 350 Hz
6 dB/Octave @ 10 kHz
General
Output Connectors
1 x 3-Pin XLR
Operating Voltage
Not specified by manufacturer
Length
6.10″ / 155 mm
Diameter
2.48″ / 63 mm
Weight
22.40 oz / 635 g
Packaging Info
Box Dimensions (LxWxH)
10.8 x 7.3 x 4.6″
M80-SH Dynamic Microphone
Analog Performance
Transducer
Dynamic
Diaphragm
0.98″ / 25.0 mm
Polar Pattern
Supercardioid
Frequency Range
30 Hz to 18 kHz
Maximum SPL
140 dB SPL
Impedance
300 Ohms
Sensitivity
1.4 mV/Pa
General
Output Connectors
1 x 3-Pin XLR
Cable Length
16.4′; / 5 m
Operating Voltage
Not specified by manufacturer
Length
4.93″ / 125.1 mm
Diameter
2.48″ / 63 mm
Weight
11.99 oz / 340 g
Packaging Info
Box Dimensions (LxWxH)
10.7 x 7.3 x 4.3″
M81-SH Dynamic Microphone
Analog Performance
Transducer
Dynamic
Diaphragm
0.98″ / 25.0 mm
Polar Pattern
Supercardioid
Frequency Range
30 Hz to 18 kHz
Maximum SPL
140 dB SPL
Impedance
250 Ohms
Sensitivity
1 mV/Pa
General
Output Connectors
Not specified by manufacturer
Cable Length
16.4′; / 5 m
Operating Voltage
Not specified by manufacturer
Length
4.93″ / 125.1 mm
Diameter
2.48″ / 63.0 mm
Weight
0.75 lbs / 340 g
Packaging Info
Box Dimensions (LxWxH)
10.7 x 7.3 x 4.3″
M82 Kick Drum Microphone Mount
Packaging Info
Box Dimensions (LxWxH)
4.6 x 2.4 x 1.3″
Metal Drum Microphone Mount
Packaging Info
Box Dimensions (LxWxH)
3.0 x 2.0 x 1.0″
Plastic Drum Microphone Mount
Packaging Info
Box Dimensions (LxWxH)
4.8 x 2.4 x 1.4″
SGMC-5R Microphone Cable with 90° Right Angle Female XLR Connectors (16.2′)
