ไมค์อัดเสียง Telefunken AR70 Stereo Condenser Microphone

ไมโครโฟนสำหรับงานบันทึกเสียง Telefunken AR-70 Stereo เป็นไมค์แบบ Tube Condenser รูปแบบการรับเสียง Cardioid, Figure-8, Omnidirectional Polar Pattern, ตอบสนองความถี่ 20 Hz to 20 kHz, Impedance 250 Ohms, มาพร้อม flight case,สายแบบ 7-pin cable, กล่องไม้, power supply with remote polar pattern selector

ราคาไม่รวมภาษีมูลค่าเพิ่ม…

฿150,000.00

สอบถามและสั่งซื้อสินค้า

Description

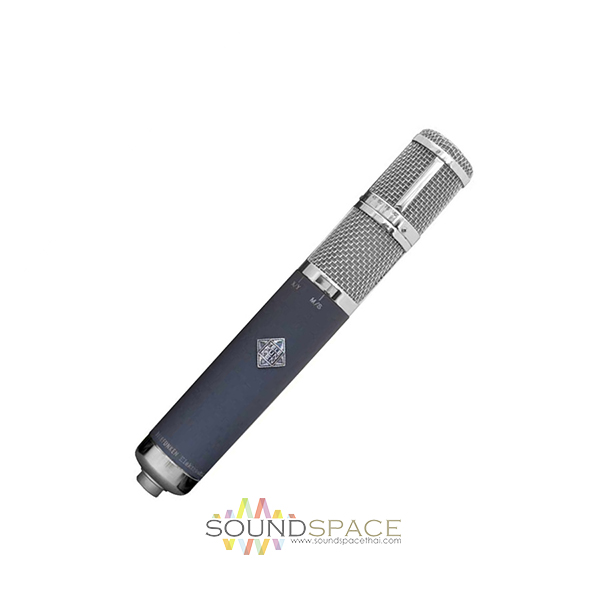

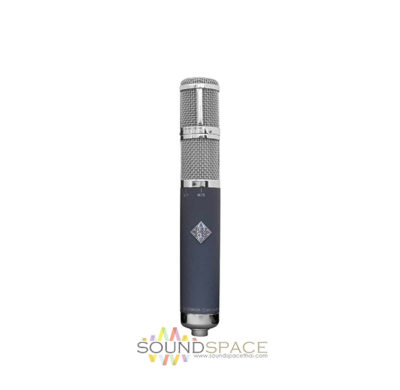

Telefunken AR70 Stereo Tube Condenser Microphone

ไมโครโฟนสำหรับงานบันทึกเสียง Telefunken AR-70 Stereo เป็นไมค์แบบ Tube Condenser รูปแบบการรับเสียง Cardioid, Figure-8, Omnidirectional Polar Pattern, ตอบสนองความถี่ 20 Hz to 20 kHz, Impedance 250 Ohms, มาพร้อม flight case,สายแบบ 7-pin cable, กล่องไม้, power supply with remote polar pattern selector

The Telefunken AR-70 Stereo features a matched pair of large diaphragm dual sided TK51D capsules (the same newly implemented edge-terminated type 26.5 mm dual-membrane design) found in the AR-51), a New Old Stock ECC81 / 12AT7 vacuum tube (the same tube found in the AR-51), and a matched pair of European made custom wound T14/1 output transformers (the same transformers found in ELA M 250/251 and AR-51 microphones) all in a single, easy to setup system.

The AR-70 Stereo includes one fixed cardioid capsule on the bottom, and on top, a capsule wired for remote multi-polar pattern capabilities. This allows the microphone to perform multiple stereo recording techniques, as well as a standard single channel monophonic recording, all in one package. In stereo mode, the AR-70 Stereo can be set up in a standard X/Y configuration, with each capsule orientated 90 degrees away from each other, resulting in a perfectly co-incidental pair.

With the option of the multi-pattern functionality of the top capsule, the microphone can also be used in Mid-Side (M/S) technique, where the lower capsule is fixed in cardioid, and the upper capsule is rotated 90 degrees and set to the Figure 8 polar pattern.

Features:

  • The smooth top end and warm sound that only a tube mic can deliver
  • Selectable omni, cardioid, figure-8, and 6 other intermediate polar pattern stages
  • Perfect for a range of recording techniques, including XY-Coincident, dual mono, and M-S
  • Utilizes the same amplifier as the Telefunken C12
  • Microphone grade ECC81 tube delivers stellar sound and performance
  • Incredibly realistic and detailed sound reproduction

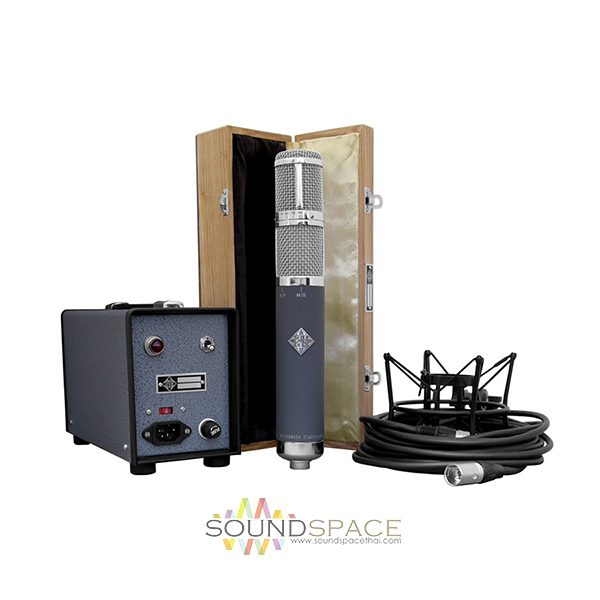

  • Includes a power supply, shockmount, and wooden box
  • Requires +48V phantom power

Specifications

Analog Performance
Operating Principle Pressure Gradient
Transducer Condenser
Tube Yes
Polar Pattern Cardioid, Figure-8, Omnidirectional
Pattern Selection Switched
Frequency Range 20 Hz to 20 kHz
Equivalent Noise Level 8.5 dB A-Weighted
Maximum SPL 128 dB SPL
THD 0.2%
Impedance 250 Ohms
Sensitivity 13 mV/Pa
General
Output Connectors 1 x 3-Pin XLR
1 x 7-Pin XLR
Operating Current Consumption 250 mA
Operating Voltage Not specified by manufacturer
Length 9.49″ / 241 mm
Diameter 1.75″ / 44.45 mm
Weight 1.68 lbs / 765 g
Packaging Info
Package Weight 31.6 lb
Box Dimensions (LxWxH) 26.0 x 24.5 x 11.7″
