เครื่องบันทึกเสียง TASCAM DP24SD Digital Port Studio

เครื่องอัดเสียง TASCAM DP24SD Record up to 8 Tracks Simultaneously, Records to SD/SDHC Cards, 19 Faders, Up to 24 Track Playback, 24-bit/48 kHz Resolution, 8 Combo XLR/TRS Mic Inputs


฿19,900.00 ฿19,500.00



TASCAM DP24SD Digital Port Studio

เครื่องอัดเสียง TASCAM DP24SD Record up to 8 Tracks Simultaneously, Records to SD/SDHC Cards, 19 Faders, Up to 24 Track Playback, 24-bit/48 kHz Resolution, 8 Combo XLR/TRS Mic Inputs

Allowing you to record hands-on without the need for a computer, the DP-24SD 24-Track Digital Portastudio from Tascam can track up to 8 sources simultaneously with support for up to 24 tracks on playback. It features 8 combo XLR/TRS mic preamplifier inputs, with the eighth input also supporting Hi-Z sources such as guitar and bass. For hands-on control of your mix, the unit has 19 total faders (including the master), as well as a variety of EQ, compression, and guitar-based effects for tweaking your mix.

The unit records directly to SD and SDHC cards. Additionally, you can export your tracks to an external computer via the unit’s USB port. A power supply, 2 GB SD card, and a USB cable are included.

12 Mono/Stereo Selectable Faders

The recorder has 12 selectable tracks between MONO or STEREO. Use a STEREO track for recording synthesizer, or set the track to MONO when recording guitar or vocal. Not only that, you can create independent settings for each track (set #9 to #12 STEREO, then set #13 to #22 MONO)

1 219 Faders Eliminates Layer Structuring

The device features 19 total faders, one of which is assigned as the master fader

3.5″ Color LCD and Self-Illuminated Buttons

The DP-24SD has a 3.5″ LCD screen and select self-illuminated buttons, to view your entire creative process. Some of the illuminated buttons include SOURCE, SELECT, REC, MUTE

912 Rotary Knobs

The DP-24SD has employed rotary knobs to control qualities such as EQ, Effect Send and other related features

Records to SD/SDHC Media

The DP-24SD uses SD/SDHC media. These cards provide secure shock resistance due to the absence of any moving parts. The file format in the DP-24SD is FAT 16 or 32. You can transfer the recorded files to your computer via USB

8 XLR/TRS Inputs, 8 Channel Recording,

The DP-24SD has 8 XLR/TRS combo inputs. You can record up to eight sources at one time

3-Band EQ

Input A-H and each track are equipped with 3-band EQ. The equalizer for each track and each input are independent from other effects. Record with EQ for each individual track

3 4 5 6 7 8

8 Dynamic Effects, Guitar Effects, and Mix-Down Effects

Use up to 8 dynamics effects at once, one for each input source. For example, utilize the built-in compressor effect for your bass, guitar and drum tracks. In addition, the DP-24SD has multiple guitar and mixing effects

Built-In Digital Mastering

The unit is equipped with mastering effects for finished-sounding mixes. There is no need for computers when recording and mixing. The mastering effects section includes a Multi-Band Compressor, EQ, Noise-Shaping Dither, and a Normalize Effects. You can create a 2-track master file for transfer to your computer and delivering to CD mastering or sharing online

Headphone Amplifier

The headphone amplifier provides ample monitoring in loud environments such as a rehearsal studios or live performance

Track bounce function

Virtual tracks (8 virtual tracks per one track)

Locate mark up to 99 at one song

Chromatic tuner


เครื่องบันทึกเสียง TASCAM DP24SD

Playback Channels 24
Recording Media SD Card (512 MB to 2 GB)

SDHC Card (4 to 32 GB)

File System SD Card: FAT16

SDHC Card: FAT32

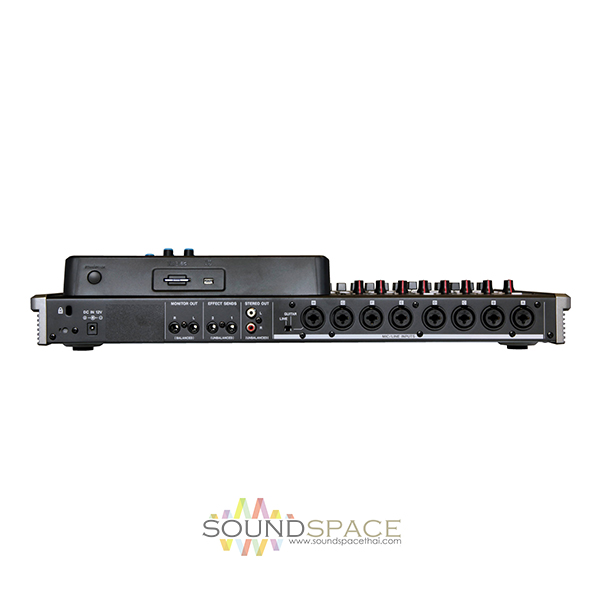

Inputs Inputs A to H:

Connectors: Combo XLR/TRS connectors, (1: GND, 2: Hot, 3: Cold), balanced

Input Impedance: XLR: 2.4 kΩ TRS: 22 kΩ or more; Input H Set to Guitar: 1 MΩ

Nominal Input Level: XLR: -14 dBu; TRS: +4 dBu

Maximum Input Level: XLR: +2 dBu, TRS: +20 dBu

Stereo Output Connector: RCA pin jack, unbalanced

Output Impedance: 200 Ω

Nominal Output Level: -10 dBV

Maximum Output Level: +6 dBV

Effect Sends Connector: 1/4″ (6.3 mm) TS phone jack, unbalanced

Output Impedance: 200 Ω

Nominal Output Level: -10 dBV

Maximum Output Level: +6 dBV

Monitor Output Connector: 1/4″ (6.3 mm) TRS phone jack, balanced

Output Impedance: 200 Ω

Nominal Output Level: -2 dBV

Maximum Output Level: +14 dBV

Headphones Connector: 1/4″ (6.3 mm) TRS phone jack

Maximum Output Level: 70 mW + 70 mW (THD+N 0.1% or less, 32 Ω loaded)

USB Connector: USB Mini-B type 4-pin

Format: USB 2.0 High-Speed mass-storage class

Remote Connector: 2.5mm TRS jack
Power Dedicated AC Adapter
Power Consumption 12 W (when supplying phantom power)
Operating Temperature 41 to 95° F (5 to 35° C)
System Requirements Windows: XP, Vista, 7, 8

CPU: Pentium 300 MHz or more

Memory: 128 MB or more

USB: USB 2.0


Mac: OS X 10.6 to 10.10

CPU: Power PC, iMac, G3, G4 266MHz or more

Memory: 64 MB or more

USB: USB 2.0

Frequency Response 20 Hz to 20 kHz (+/-1 dB, input to stereo out/effect sends/monitor out)
Signal to Noise Ratio 90 dB or greater (input to stereo out/effect sends/monitor out)
THD 0.01% or less (input to stereo out/effect sends/monitor out)
Dimensions (W x H x D) 20.2 x 4.1 x 13.4″ (514 x 104 x 340 mm)
Weight 13.67 lb (6.20 kg)
