ลำโพงติดผนัง TANNOY DVS8t Surface-Mount Loudspeaker 8″
ตู้ลำโพงแบบติดตั้ง TANNOY DVS8t ขนาดดอกลำโพง 8 นิ้วเสียงแหลม 0.75 นิ้ว, ทนขับ 60 กิโลต่อเนื่อง, 240 กิโลสูงสุด, ต๊าปหม้อแปลงสำหรับสาย 70 V และ 100 V, IP64 สำหรับใช้ภายนอกอาคาร, มีสองสีคือสีดำและสี โค้ดรหัส TANNOY DVS8t-BK และ TANNOY DVS8t-WH พร้อมป้ายประกาศ
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม … เป็นราคาใบละ …
฿11,100.00 ฿9,900.00
Description

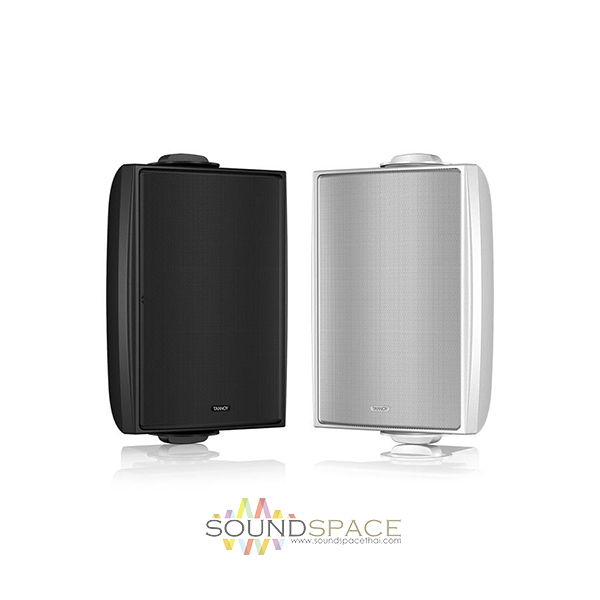

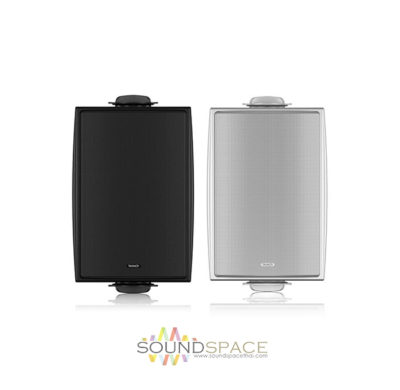

TANNOY DVS8t 8 “Coaxial Surface-Mount Loudspeaker พร้อม Transformer
ตู้ลำโพงแบบติดผนัง TANNOY DVS8t ขนาดลำโพง 8 นิ้วลำโพงเสียงแหลม 0.75 นิ้ว, ทนกำลังขับ 60 วัตต์ ต่อเนื่อง, 240 วัตต์ peak power, Multiple transformer taps สำหรับระบบสาย 70 V และ 100 V, IP64 สำหรับการใช้งานกลางแจ้ง, แนะนำสีให้เลือก คือสีดำและสีขาวโดยใช้รหัส TANNOY DVS8t-BK และ TANNOY DVS8t-WH มาพร้อมขาติดชุด
The full range TANNOY DVS 8T is an ultra-compact 280-Watt surface mount loudspeaker that provides both exceptional value and inspiring acoustic performance.
The DVS 8T is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship.
Features:
- Full range surface-mount loudspeaker for indoor and outdoor installation applications
- 70 Watts continuous, 280 Watts peak power

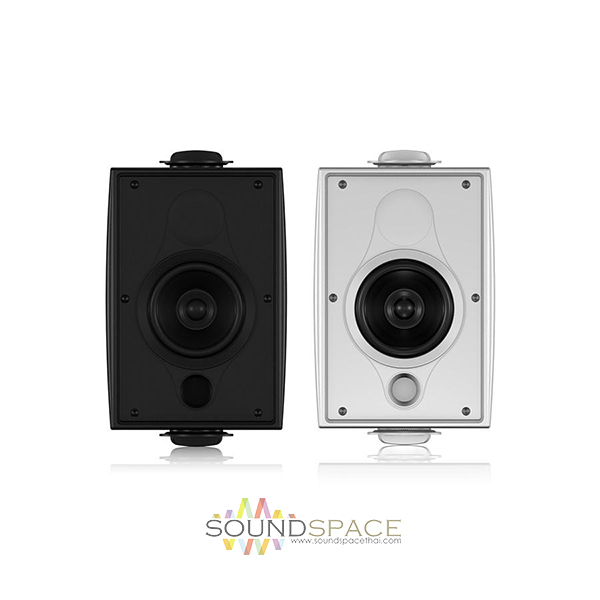

- 8” mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
- 75″ ferrofluid cooled soft dome neodymium high frequency driver
- 80° constant directivity dispersion for optimum coverage
- UL 1480 certified for general signalling systems
- UV and weather resistant UL 94 V-0 ABS enclosure
- Multiple transformer taps for 70 V and 100 V line systems
- Low insertion loss 60 W line transformer with easily accessible tapping switch
- All components weather resistant to IP64 for outdoor use
- Stylish durable enclosure in a semi matt black paint finish fits unobtrusively in any environment
- Painted perforated aluminium mesh grille with dust protection

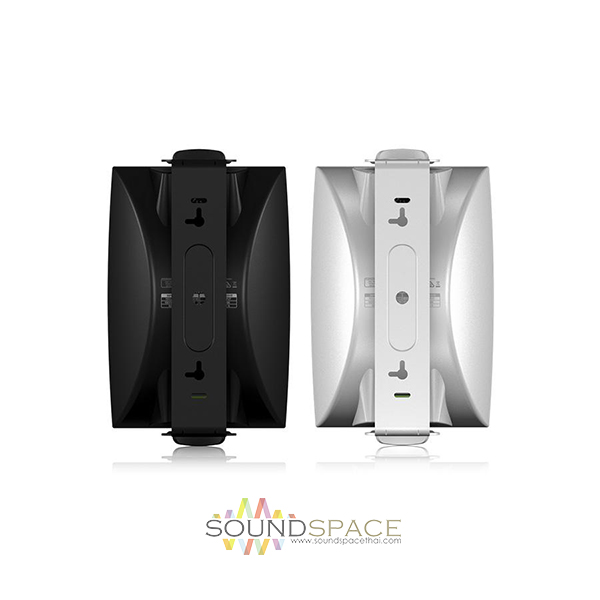

- Yoke bracket included for ease of installation
- Phoenix* connectors input and link output
- Designed and engineered in the U.K.
Specifications
Performance
| Frequency response (-3 dB)1 | 75 Hz – 20 kHz |
| Frequency response (-10 dB)1 | 60 Hz – 30 kHz |
| System sensitivity (1 W @ 1 m)2 | 90 dB |
| Dispersion (-6 dB) | 80 degrees conical |
| Transducers | Coaxial |
| Low frequency | 200 mm (8.00″) mineral loaded cone material |
| High frequency | 20 mm (0.79) |
| Crossover | 3.4 kHz – 2nd order LF, 2nd order HF |
| Directivity (Q) | 12.3 averaged 1 kHz to 10 kHz |
| Directivity (DI) | 10.0 averaged 1 kHz to 10 kHz |
| Rated maximum SPL 2 | 108 dB (average) 114 dB (peak) |

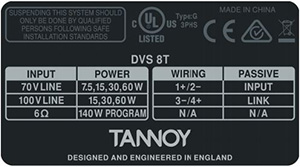

Transformer Version
| Transformer taps | |
|---|---|
| 70 V | 60 W (83 O) / 30 W (165 O) / 15 W (330 O) / 7.5 W (660 O) / OFF & low impedance operation |
| 100 V | 60 W (165 O) / 30 W (330 O) / 15 W (660 O) / OFF & low impedance operation |
| Maximum wire gauge for connector | 2.5 mm CSA (AWG12) |
| Safety Agency Ratings | UL-1480, CE |
Power Handling
| Average | 70 W |
| Programme | 140 W |
| Peak | 280 W |
| Recommended amplifier power | 140 W @ 6 Ohms |
| Nominal impedance | 6 Ohms |
Construction
| Enclosure | ABS |
| Grille | Aluminium, painted |
| Packed quantity | 2 |
| Dimensions (H x W x D) | 451.8 x 290.0 x 296.0 mm (17.79 x 11.42 x 11.65″) |
| Non-transformer versions | |
|---|---|
| Net weight | 5.7 kg (12.6 lbs) |
| Shipped weight | 14.5 kg (32 lbs) |
| Transformer versions | |
| Net weight | 7 kg (15.4 lbs) |
| Shipped weight | 17.1 kg (37.7 lbs) |
