Splitter RANE SM26S Splitter / Mixer

อุปกรณ์ปรับแต่งขยายสัญญาณเสียง RANE SM26S Splitter Mixer, 6 inputs, 6 outputs, 2 main Inputs, 2 main outputs, 6 input Level controls with 6 Mix / Pan controls


฿25,100.00 ฿20,000.00

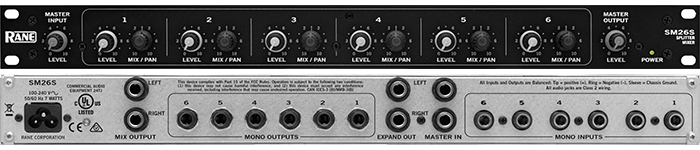

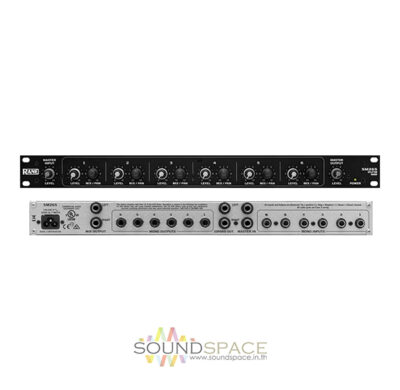

Rane SM26S Six-Channel Rackmountable Splitter/Mixer

อุปกรณ์ปรับแต่งขยายสัญญาณเสียง RANE SM26S Splitter Mixer, 6 inputs, 6 outputs, 2 main Inputs, 2 main outputs, 6 input Level controls with 6 Mix / Pan controls

The Rane SM26S is a unique, dual purpose mixer capable of mixing audio signals and distributing audio via any of the 6 outputs. There are 6 balanced mono inputs and outputs complete with gain and pan control. Pan controls place the channel’s signal into the stereo field. As a splitter, the Pan controls assign which output channels distribute incoming signal. There is a separate Left and Right stereo input for incoming signals when using the SM26S as a splitter mixer. Also featured are stereo (Left/Right)”Expand” Output for cascading multiple SM26S. There is no maximum limit as to how many SM26S can be linked.

Splitter and Mixer Function
The Rane SM26S is capable of mixing and distributing signals out of 6 mono outputs. There are 6 mono inputs and 6 mono outputs, 2 sets of stereo (L/R) outputs and a set of stereo (L/R) inputs. Both a mixer and audio distributer, the Rane SM26S is flexible and versatile enough for any sound reinforcement application.
High Quality Inputs and Outputs
The SM26S features balanced 1/4″ TRS phone inputs and outputs for maximum gain and lower noise floor.
Mixer Pan Controls
PAN pots are featured on channels 1-6 and control stereo placement of audio when the SM26S mono inputs are in use. As a splitter, the PAN control may be used to assign which outputs distribute the incoming stereo signal.
External Power Supply
The external power supply is effective in reducing noise created by “dirty” AC power and bad grounds.



  • 6 balanced mono inputs, 6 balanced mono outputs
  • 2 main balanced Inputs, 2 main balanced outputs
  • 6 input Level controls with 6 Mix / Pan controls
  • Master Input and Output Level controls
  • 10 dBV to +4 dBu shifter
  • +4 dBu to –10 dBV shifter


Total # Of Inputs 8 – Active Balanced 1/4 TRS” Phone Inputs:
Mono channels 1-6
Stereo Input (Left/Right)
Output 8 – Active Balanced TRS 1/4″ TRS Phone Outputs:
Mono channels 1-6
Mix Output (Left/Right)
Expand Out:
Stereo Output (Left/Right)
Monitor/Headphone Out No
Impedance Inputs: 20 kOhms
Outputs: 200 Ohms
Gain Overall Gain Range – Off to +12 any input to any output
THD & Noise 0.006 limit = .002% +4dBu, 20-20kHz unity gain
Frequency Response 10Hz – 56kHz +0/-3 dB
Metering No
Controls Rotary Pots:
Channel Gain (ch 1-6)
Mix/Pan (ch 1-6)
Master Output
Master Input
Power Switch
Phantom Power No
Power 18-24VAC w/center tap 300mA Max Current
Dimensions (HxWxD) 1.75 x 19 x 5.3″ (4.4 x 48.3 x 13.5cm)
Weight 9lbs (4.1kg)
