Description

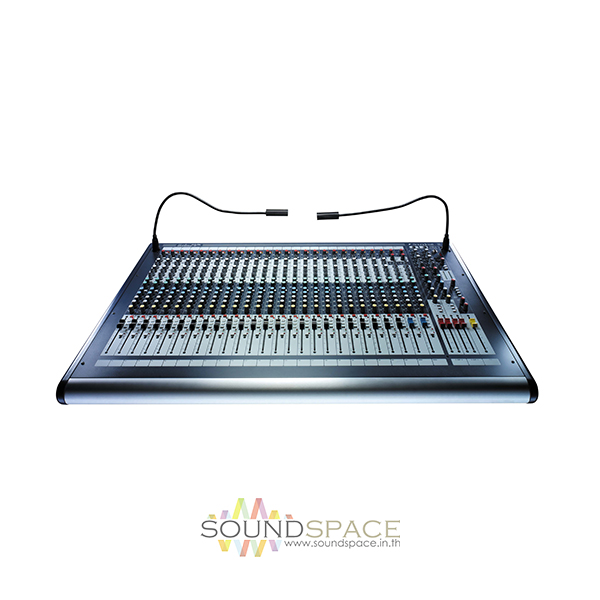

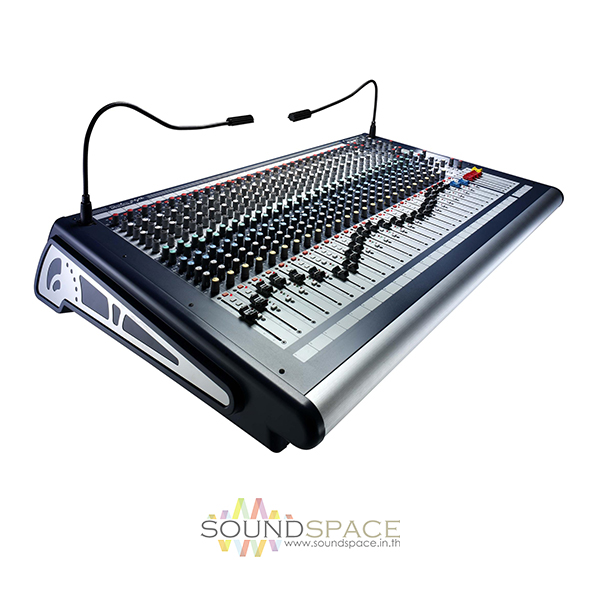

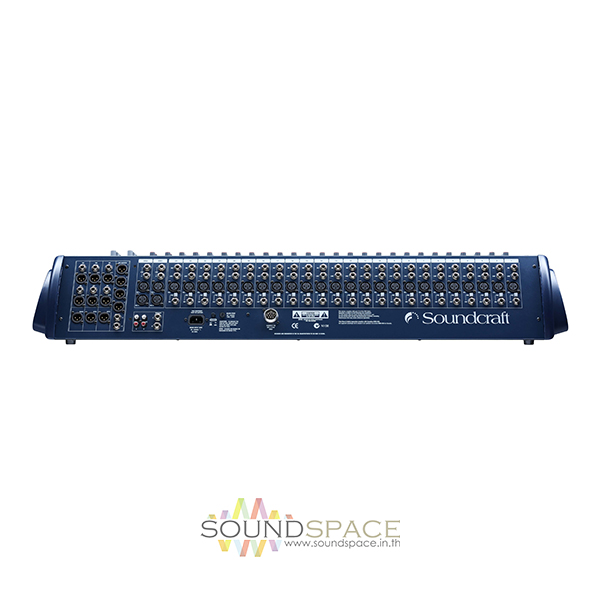

มิกเซอร์ SOUNDCRAFT GB2-24 Mixer 24-Ch
เครื่องผสมสัญญาณเสียง SOUNDCRAFT GB2-24 เป็นมิกเซอร์แบบมีช่องสัญญานขาเข้า 24ชาแนล 4 group busses configured as 2 st sub groups and an integral 6 x 2 matrix.
The Soundcraft GB2 live console series is designed to deliver the audio fidelity and mixing capabilities necessary in front-of-house (FOH) or monitor mixing applications in large or small venues. The GB2 is available in 16, 24, 32 channel frames to suite specific needs in live sound mixing.
This model is configured with 24 input channels. 24 inputs feature microphone and line level connections, an additional 2 stereo inputs are also provided. The stereo inputs (STE1 – STE2) provide L/R stereo line level inputs and 3-pin XLR microphone inputs for stereo microphone placement when capturing vocals, instruments, ambiance, etc.
The console features 2 stereo paired group outputs enabling routing to monitors, external recorders, etc. The GB2 series implements Soundcraft’s GB30 microphone preamp and EQ, delivering the sonic quality expected of more costly consoles. Additional features include Soundcraft’s famed matrix mixer for added routing flexibility and an integrated meter bridge, enabling accurate metering.
Features:
- 24 channel frame size
- 12 busses
- 2 full feature stereo channels
- 2 stereo returns (on stereo channels)
- 6 Aux sends
- 4 sub groups (paired)
- 6×2 output matrix
- GB30 mic preamp and precision equalisation circuitry
- Direct outputs on every channel
- Talkback facility
- 100mm faders
- Switchable 48V phantom powering on every channel
- 100Hz high pass filter
- 12-segment LED metering
- Record output
- Width: 1013mm (39.88″)
- Weight: 25kg (55.1lbs)
