ชุดไวเลสกีตาร์แบบไร้สาย Sennheiser XSW1-CI1 Wireless Instrument Set

Name: ชุดไวเลสกีตาร์แบบไร้สาย Sennheiser XSW1-CI1 Wireless Instrument Set
Brand: Sennheiser
SKU: 17410
Price: 9540.00 THB
Availability: InStock

Original price was: ฿16,900.00.Current price is: ฿9,540.00.

ชุดไวเลสกีตาร์ Sennheiser XSW1-CI1 ในชุดประกอบด้วยเครื่องรับ EM-XSW 1 UHF Receiver, Bodypack Transmitter SK-XSW, สายแจ็ค Cl1 instrument cable, เป็นไวเลสย่าน UHF, Automatic Frequency Management, Selectable UHF Frequencies, Up to 10 Compatible Channels

ราคาไม่รวมภาษีมูลค่าเพิ่ม…

ดูสินค้าแบรนด์เดียวกันทั้งหมด: Sennheiser

สอบถามและสั่งซื้อสินค้า

Category: ไมโครโฟนไร้สาย (WireLess Mic) Tag: Sennheiser

แชร์สินค้านี้: Facebook X LINE

Description

Sennheiser XSW1-CI1 UHF Wireless Instrument Set

The XSW 1 CI1-A UHF Instrument Set from Sennheiser is an easy to use all-in-one wireless system for guitarists and bassists. It can be used for live sound applications to free the performer from instrument cables, which connect to a power amp or mixer.

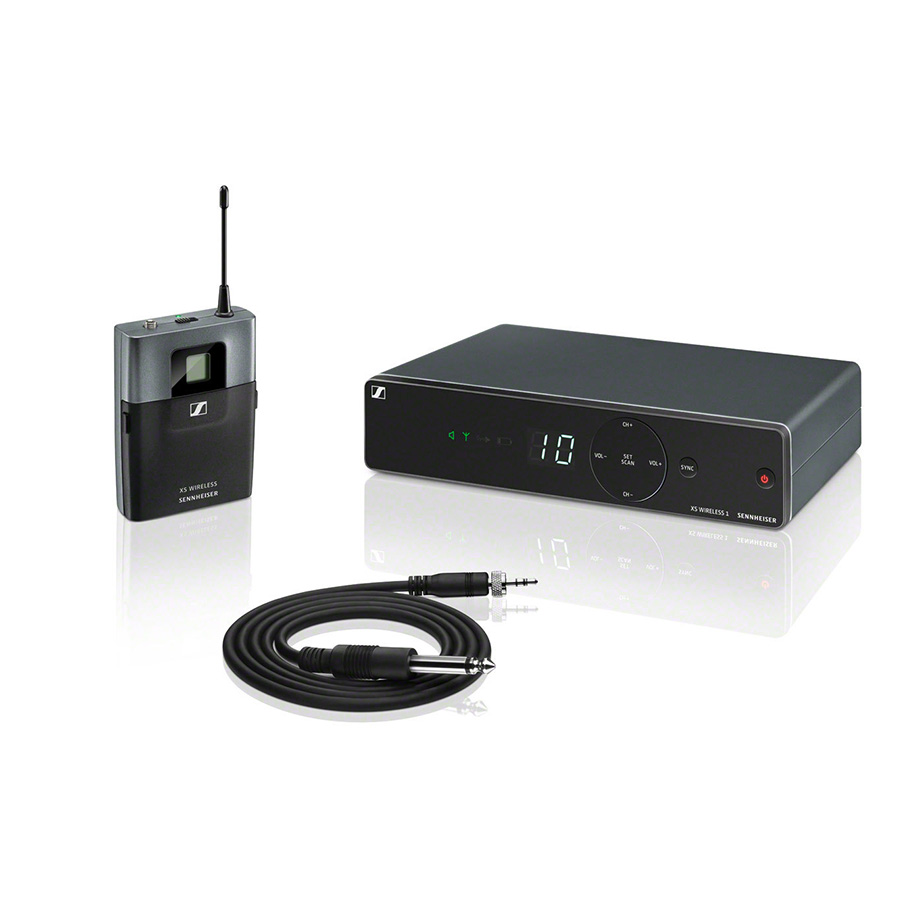

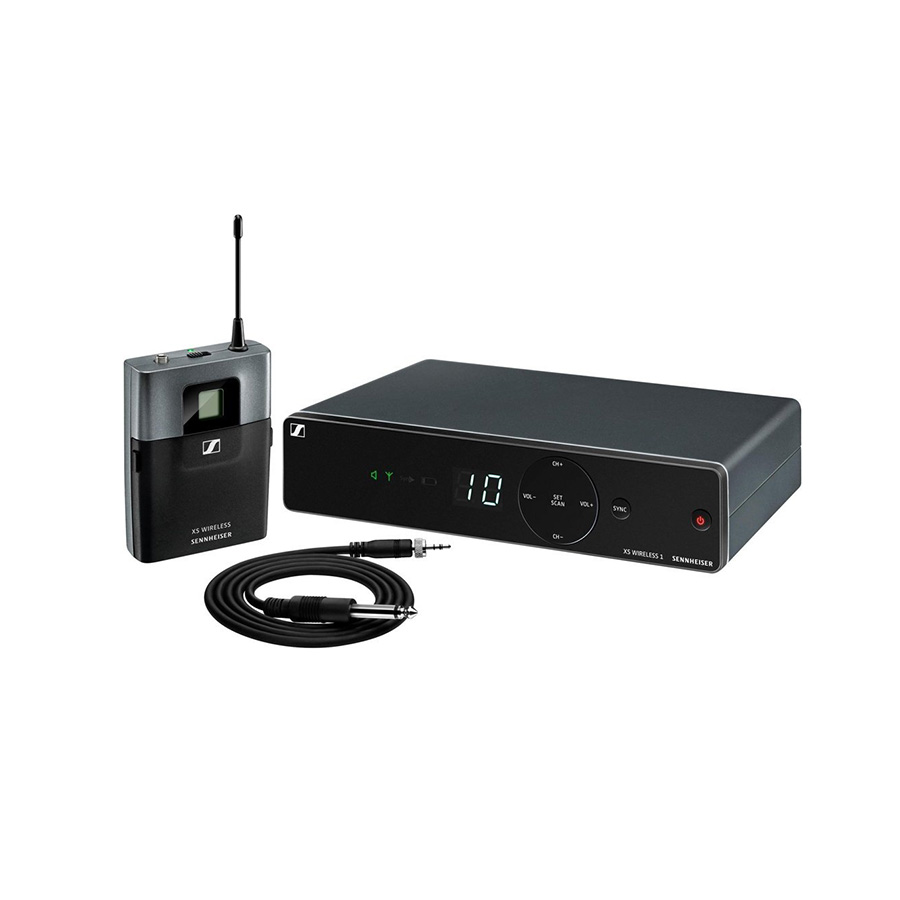

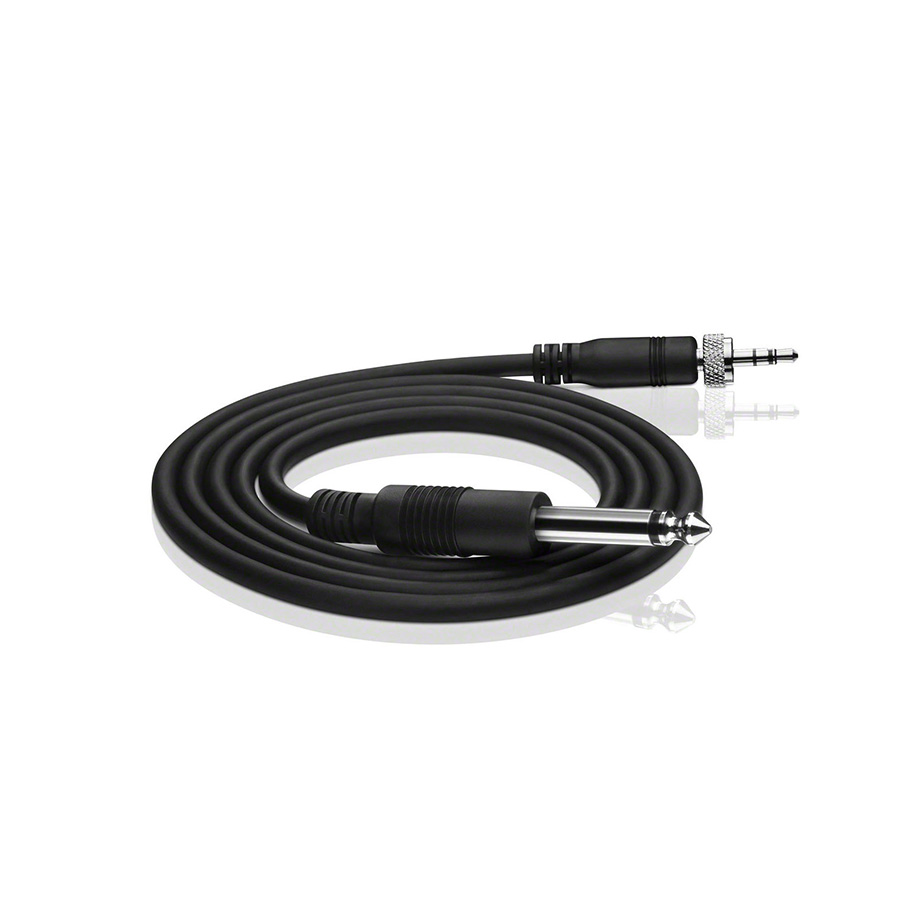

The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and a 1/4″ instrument cable. It is built with antenna-switching diversity reception and features automatic frequency management and synchronization via remote channel. Up to 10 compatible channels are available.

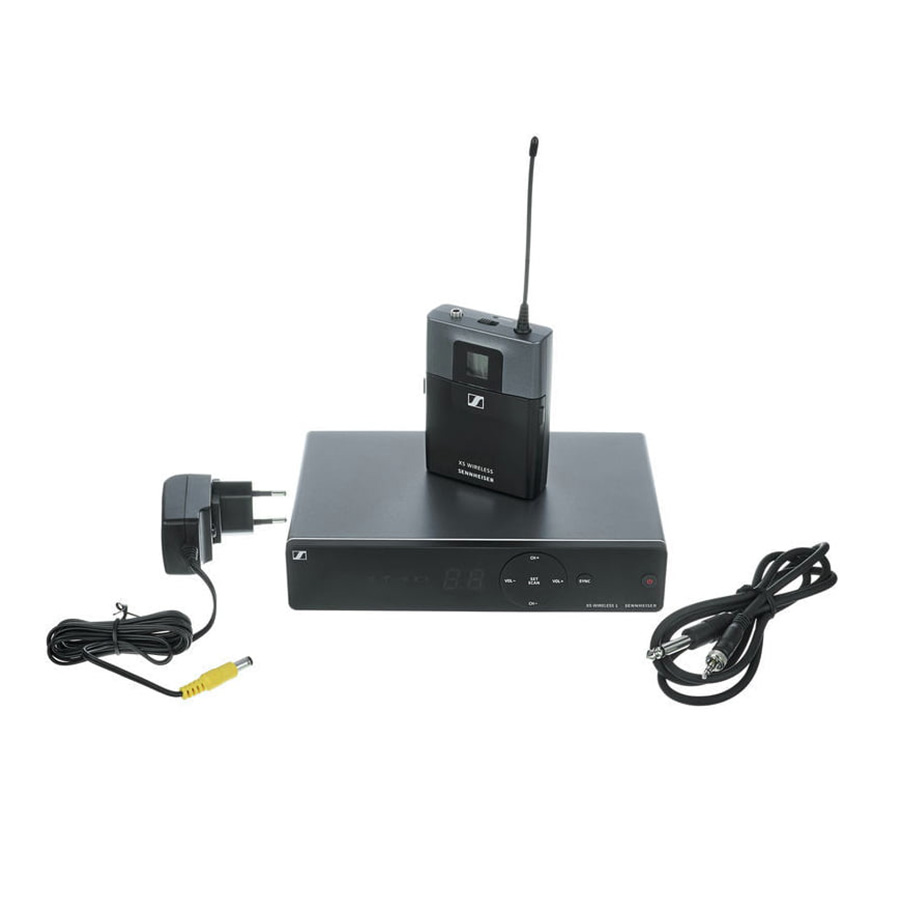

Additionally, an AC power adapter and two AA batteries are also included.

Features:

Compact bodypack transmitter, rugged instrument cable
Antenna-switching diversity reception
Integrated antennas
Automatic frequency management and synchronization via remote channel for easy setup
Selectable UHF frequencies within a large bandwidth
Up to 10 compatible channels

Specifications

System
Modulation	Wideband FM
Frequency Range	A: 548-572 MHz, GB: 606-630 MHz B: 614-638 MHz C: 766-790 MHz D: 794-806 MHz E: 821-832 MHz, 863-865 MHz K: 925-937.5 MHz
Switching Bandwidth	Up to 24 MHz
Signal to Noise Ratio	≥ 103 dBA
Total Harmonic Distortion	≤ 0.9%
Temperature Range	Operation: 32 to 104°F (0 to +40°C)
Storage	-4 to 158°F (-20 to 70°C)
Transmitter Synchronization	2.4 GHz, Low Power OQPSK (only active during synchronization)

Receiver
Principle	Double superheterodyne
Diversity	Antenna switching diversity via internal antennas
Sensitivity	< 3 μV at 52 dBA rms S/N (at peak deviation)
Frequency Response	50 Hz to 16 kHz (-3 dB)
Max Output Voltage	At Peak Deviation, 1 kHz AF 1/4″ (6.3 mm) Jack Socket (unbalanced): +6 dBu XLR Socket (balanced): +12 dBu
Adjustment Range	Audio: 45 dB, adjustable in 5-dB steps
Power Supply	12 VDC nominal, 300 mA
Squelch	Adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
Line/Mic Level	20 dB, switchable
Material of Construction	ABS housing
Dimensions (W x H x D)	7.9 x 1.7 x 5.0″ (200 x 42 x 127 mm)
Weight	12 oz (340 g)

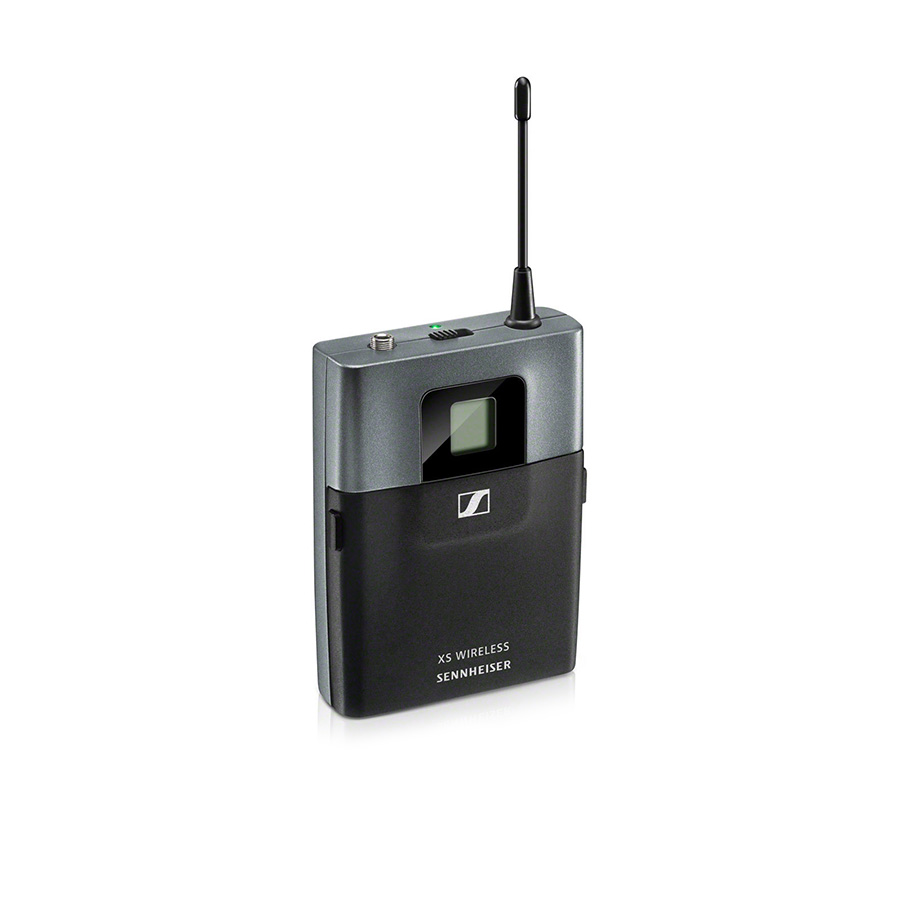

Bodypack Transmitter
Output Power	10 mW
Frequency Response	Line: 50 Hz to 16 kHz Mic: 50 Hz to 16 kHz
Audio Input	1/8″ (3.5 mm) jack socket
Input Voltage	Mic/Line at 3% THD: Typ. 1.V RMS mic / typ. 2.6 V RMS line at -30 dB gain
Power Supply	2 x AA batteries, 1.5 V
Operating Time	Approximately 10 hours
Adjustment Range	Transmitter Sensitivity: 0 to -30 dB, adjustable in 10 dB steps
Material of Construction	Rugged ABS housing
Dimensions (W x H x D)	2.8 x 3.8 x 1.1″ (71 x 96 x 28 mm)
Weight	3.4 oz (95 g)
