Sennheiser ew 500 G4-KK205 Wireless Vocal Set with KK 205 Neumann Capsule
ชุดไมค์ลอยแบบมือถือ Sennheiser EW 500 G4-KK205 เป็นไมโครโฟนไร้สายย่าน UHF ในเจนเนอเรชั่น 4 ประกอบด้วยเครื่องรับ EM 300-500 G4 True Diversity Receiver, เครื่องส่ง (ไมโครโฟน) SKM 500 G4 โดยมีหัวไมค์เป็น Neumann รุ่น kk205, Compatible with Control Cockpit Software

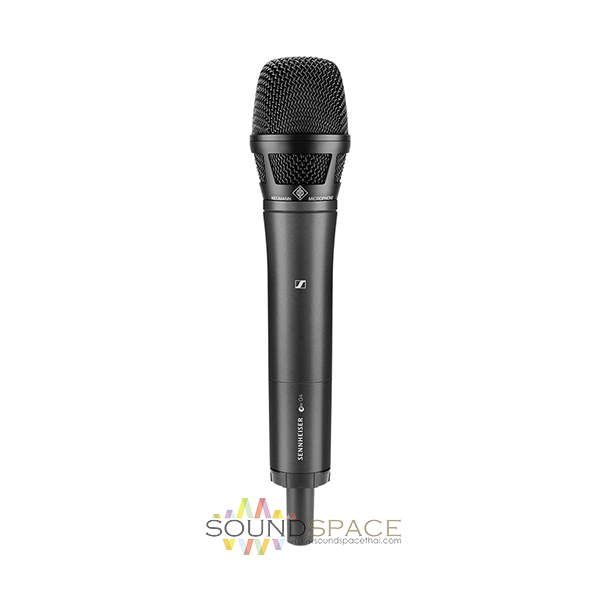

The ew 500 G4-KK205 Wireless Vocal Set with KK 205 Capsule from Sennheiser is designed to celebrate the 90th anniversary of Neumann. It combines the power and flexibility of Sennheiser’s ew 500 G4 wireless series with the highly regarded audio quality of Neumann’s KK 205 condenser capsule. This kit includes the Neumann KK 205 supercardioid condenser mic capsule, a Sennheiser SKM 500 G4 handheld transmitter, EM 300-500 G4 rackmount receiver, GA3 rack kit, NT 2-3 power supply, and microphone clip. The wireless vocal set can be used to capture audio for live stage, theater, and vocal applications.
The ew 500 G4 wireless system features up to 50mW of RF power, up to 88 MHz of frequency bandwidth, as well as compatibility with the Neumann KK 205 capsule, which previously required the use of the 2000, digital 6000, or digital 9000 series wireless system. Additionally, the KK 205 capsule head is based on Neumann’s KMS series of wired stage microphones. Engineered for stage use, the KK 205 accommodates sound pressure levels up to 150 dB without clipping. The tight, frequency-independent supercardioid polar pattern ensures high gain before feedback.
Also, with its smooth frequency response, airy top, and superior transient response, the 90th anniversary edition, ew 500 G4-KK205 wireless vocal set with KK 205 capsule delivers an immediate, emotional vocal sound. In addition, Sennheiser Control Cockpit Software (download) offers easy handling, control, and maintenance for the Digital Wireless System. It provides a global overview of all network-enabled devices, shows all status information, and makes setting adjustments very easy.
Features:
True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
Easy and flexible wireless synchronization between transmitter and receiver via infrared
Up to 32 compatible channels
Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations
Neumann KK 205 bk Supercardioid condenser capsule head for Sennheiser wireless systems
Maximum 3250 receiving frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
6 frequency banks with up to 32 programmable channels
Switchable, Act on Line and Monitor Outputs)
Preset 1: Flat
Preset 2: Low cut (-3 dB at 180 Hz)
Preset 3: Low cut/high boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
Preset 4: High boost (+6 dB at 10 kHz)
Maximum 3520 frequencies, adjustable in 25 MHz steps
20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
6 frequency banks with up to 32 programmable channels
Switching Bandwidth
Up to 88 MHz
Nominal/Peak Deviation
±24 kHz / ±48 kHz
Frequency Stability
≤ ±15 ppm
RF Output Power
Up to 50 mW Switchable:
Low: Typical 10 mW
Standard: Typical 30 mW
High: Typical 50 mW
Pilot Tone Squelch
Can be switched off
Compander
Sennheiser HDX
AF Frequency Response
80 Hz to 18 kHz
Signal to Noise Ratio
Approximately ≥ 115 dBA (1 mV, peak deviation)
Total Harmonic Distortion (THD)
≤ 0.9%
Input Sensitivity Range
48 dB, adjustable in 6 dB steps
Temperature Range
14 to 131°F (-10 to 55°C)
Power Supply
2 x AA 1.5 V batteries, or BA 2015 accupack
Nominal Voltage
3 V battery / 2.4 V rechargeable battery
Current Consumption
At Nominal Voltage: Typical 180 mA
With Transmitter Switched Off: ≤ 25 μA
Operating Time
Typically 8 hours
Dimensions (Diam. x L)
2.0 x 10″ (50 x 265 mm)
Weight
16 oz (450 g) including batteries

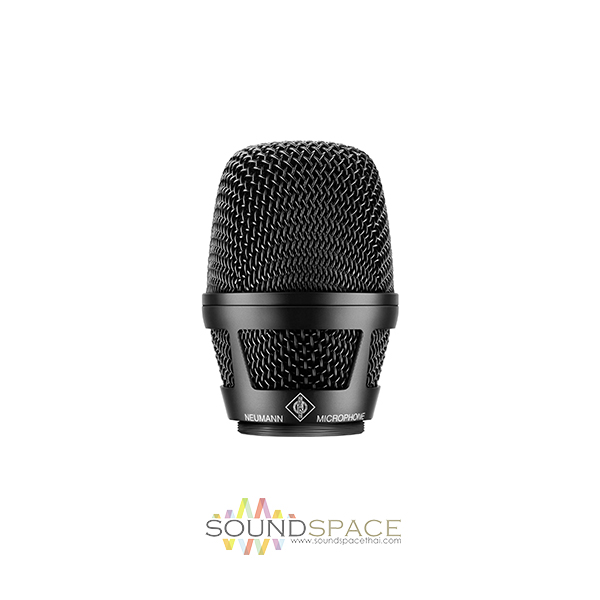

KK 205 Supercardioid Microphone Capsule for Sennheiser SKM 2000 System (Black)
Directional Pattern
Supercardioid
Frequency Range
40 Hz – 20 kHz
Sensitivity
2.8 mV/Pa ± 1 dB ≅ -51 dBV
Note: At 1 kHz into 100 kOhm rated load impedance. 1 Pa ≅ 94 dB SPL.
Equivalent Noise Level
CCIR: 35 dB
A-Weighted: 24 dB-ANote: According to IEC 60268-1; CCIR-weighting according to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
Max SPL (0dB=20µPa)
150 dB
Note: THD of microphone amplifier at an input voltage equivalent to the capsule output at the specified SPL.
