ชุดไวเลสกีตาร์ Sennheiser ew172 G3 Wireless Instrument System

ชุดไวเลสกีตาร์แบบไร้สาย Sennheiser ew172 G3 ในชุดประกอบด้วยเครื่องรับ EM 100 G3 UHF Receiver, Bodypack Transmitter SK 100 G3, สายแจ็ค Cl1 instrument cable, 1680 Tunable UHF Freq, Includes GA3 Rackmount Kit, 20 Ch Banks, 12 Compatible Freq Per Bank, เป็นไวเลสย่าน UHF

ราคาไม่รวมภาษีมูลค่าเพิ่ม…

฿39,900.00 ฿21,500.00

สอบถามและสั่งซื้อสินค้า

Description

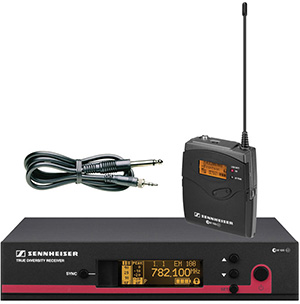

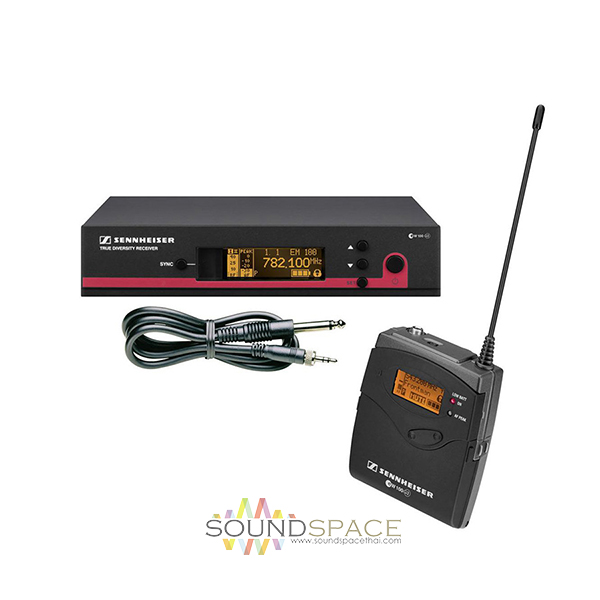

Sennheiser EW172 G3 Wireless Instrument System with Ci 1 Guitar Cable

ชุดไวเลสกีตาร์แบบไร้สาย Sennheiser ew172 G3 ในชุดประกอบด้วยเครื่องรับ EM 100 G3 UHF Receiver, Bodypack Transmitter SK 100 G3, สายแจ็ค Cl1 instrument cable, 1680 Tunable UHF Freq, 20 Ch Banks, 12 Compatible Freq Per Bank, Includes GA3 Rackmount Kit, เป็นไวเลสย่าน UHF

The Sennheiser EW172 G3 Wireless Bodypack Microphone System provides dependable wireless performance for guitars and instruments on stage, rehearsals, recording applications, etc. The system includes a UHF diversity receiver, bodypack transmitter and Ci 1 instrument cable with 1/4″ phone connector. The transmitter and receiver synchronize channel and frequency at the touch of a button.

The bodypack allows you to charge the (optional) rechargeable pack while it remains in the transmitter. A back-lit display allows for easy operation under dimly-lit conditions and its user friendly menu makes operation quick and easy. This easy to use wireless instrument system will provide guitarists the freedom of cable free performance, with wired microphone audio quality.

Features:

  • Sturdy metal housing (transmitter and receiver)
  • 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
  • Enhanced frequency bank system with up to 12 compatible frequencies
  • High-quality true diversity reception
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off
  • Automatic frequency scan feature searches for available frequencies
  • Enhanced AF frequency range
  • Increased range for audio sensitivity
  • Wireless synchronization of transmitters via infrared interface
  • User-friendly menu operation with more control options
  • Illuminated graphic display (transmitter and receiver)
  • Auto-Lock function avoids accidental changing of settings
  • HDX compander for crystal-clear sound
  • Transmitter feature battery indicatation in 4 steps, also shown on receiver display
  • Programmable Mute function
  • Integrated Equalizer, Soundcheck mode and guitar tuner
  • Contacts for recharging BA 2015 accupack directly in the transmitter
  • Wide range of accessories adapts the system to any requirement

Specifications

System
Type of System True Diversity UHF Wireless Instrument System
RF Carrier Frequency Range 606…648 MHz
823…865 MHz / Power supply unit UK
823…865 MHz / Power supply unit EU / Germany
823…865 MHz / Power supply unit EU
780…822 MHz / Power supply unit UK
780…822 MHz / Power supply unit EU / Germany
780…822 MHz / Power supply unit EU
734…776 MHz / Power supply unit US
734…776 MHz / Power supply unit EU
626…668 MHz / Power supply unit US
626…668 MHz / Power supply unit EU
566…608 MHz / Power supply unit US
566…608 MHz / Power supply unit EU
516…558 MHz / Power supply unit US
516…558 MHz / Power supply unit EU
Approx. Working Range Not Specified By Manufacturer
Overall Frequency Response Line: 25Hz – 18kHz
Mic: 80Hz – 18kHz
Signal-to-Noise Ratio > / – 110dBA
# Of Channels 1680
20 Channel Banks, 1 Fixed Bank, 12 Factory Preset Channels Each
# Of Simultaneous Systems Not Specified By Manufacturer
Peak Deviation ±48 kHz
Compliance ETS 300422 , ETS 300445 , CE , FCC
Receiver
Type of Receiver EM100 Half-Rack Mountable True Diversity UHF
Sensitivity with HDX, peak deviation:
<2.5 μV at 52 dBAeff S/N
Adjacent Channel Isolation ≥ 65dB
Attenuation Intermodulation attenuation: ≥ 65dB
Blocking ≥ 70dB
Squelch Detachable
Outputs 1/4″ (6.3 mm) jack socket, unbalanced: +12 dBu
XLR socket, balanced: +18 dBu
Headphone Monitoring 1/4″ Phone (Front Panel)
Power Requirements 12VDC
Battery Type/Approx. Life Not Applicable
Display Back-lit LCD Display

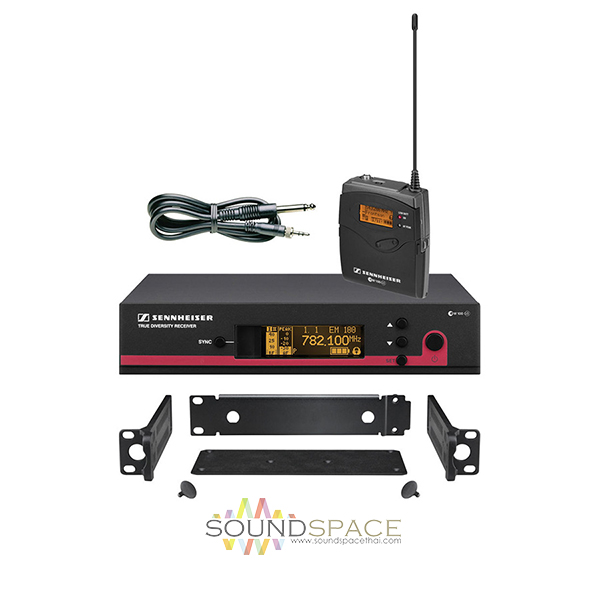

Mounting Options Included GA 3 Rackmount Kit
Antenna Type BNC Type x2
Dimensions 7.48 x 8.35 x 1.69″ (190 x 212 x 43mm)
Weight 1.99 lb (900g)
Transmitter
Type of Transmitter SK100 Bodypack Transmitter
RF Output @ 50 Ω: typ. 30mW
Frequency Response 25Hz – 18kHz (Line)
Maximum Input Voltage 3V (Line)
Input Impedance 40kΩ
Unbalanced / 1MΩ
Type of Input Connector Locking 1/8″ (3.5mm) Mini
Nominal Voltage 2.4V
Type of Microphone Instrument Cable
Battery Type/Approx. Life AA 1.5V Batteries x2 (8 Hours Typ.)
Mute Switch Programmable Mute Function
Level Control Yes
Antenna Type 1/4 Wave
Display Back-Lit LCD
Dimensions (WxDxH) 3.23 x 2.92 x 0.94″ (82 x 64 x 25mm)
Weight 5.64 oz (160g)
