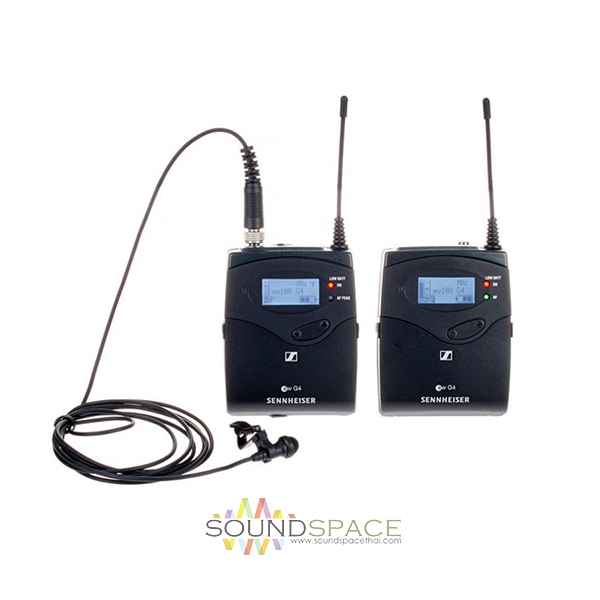

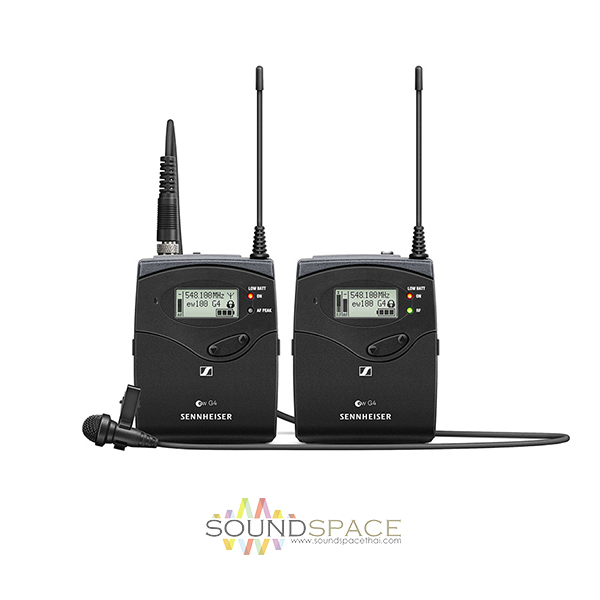

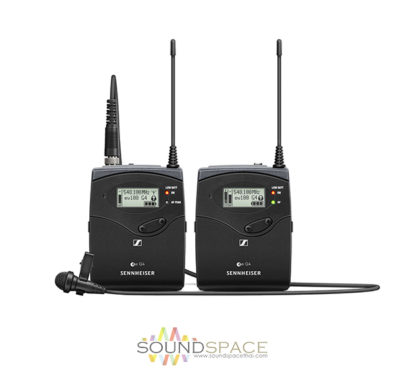

The ew 112P G4 Camera Mount Wireless Microphone System from Sennheiser is the latest addition to Sennheiser’s evolution family of wireless microphones and is fully compatible with all previous series. This package includes the EK 100 G4 camera mount receiver, SK 100 G4 bodypack transmitter, and ME 2-II lavalier microphone. Accessories include a CA 2 camera mount, 1/8 to 1/8″ cable, and a 1/8″ to XLR cable. It can be used to capture audio for live sound, broadcast and film, business, and educational applications.

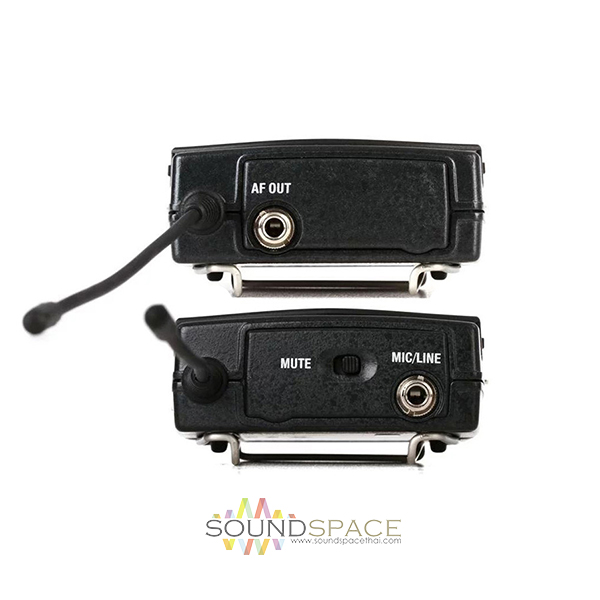

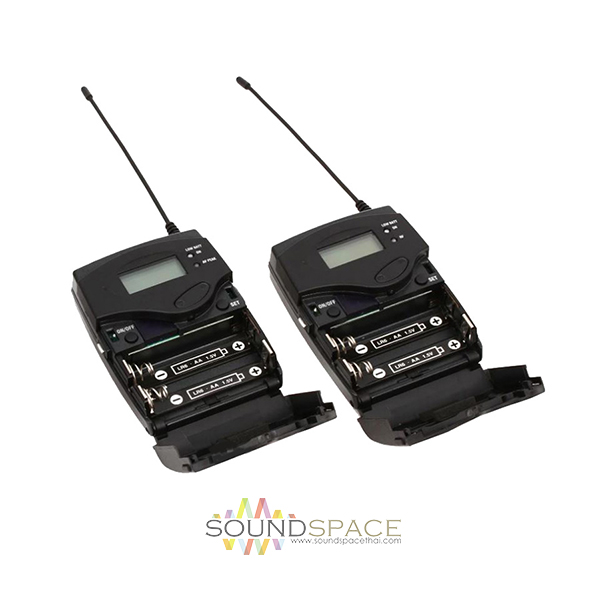

The SK 100 G4 bodypack transmitter and the EK 100 G4 receiver sport an updated high-contrast LCD display and a dedicated escape button. They synchronize channel and frequency at the touch of a button. In addition, an optional rechargeable battery pack allows you to charge batteries while they remain inside the units. The CA 2 shoe-mount adapter provides easy installation onto a camera shoe.
Features:
Rugged all-in-one wireless system with high flexibility for broadcast quality sound
Excellent sound and construction quality
Easy to use and fast setup time
Powerful and reliable wireless transmission
Range: up to 100 meters / 330 feet
Up to 8 hours of operation time
Specifications
เครื่องรับ EK 100 G4 Wireless Camera-Mount Receiver
Modulation
Wideband FM
Frequency Band
A1: 470 – 516 MHz
A: 516 – 558 MHz
AS: 520 – 558 MHz
GB: 606 – 648 MHz
G: 566 – 608 MHz
B: 626 – 668 MHz
C: 734 – 776 MHz
D: 780 – 822 MHz
E: 823 – 865 MHz
JB: 806 – 810 MHz
K+: 925 – 937,5 MHz
Receiving Frequency
Maximum 1680 receiving frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 16 factory-preset channels, no intermodulation
1 frequency bank with up to 12 programmable channels
Nominal Voltage: Typical 180 mA
With Receiver Switched Off: ≤ 25 µA
Operating Time
Typically 8 hours
Dimensions (L x W x H)
3.2 x 2.5 x 0.9″ / 82 x 64 x 24 mm
Weight
5.6 oz / 160 g
เครื่องส่ง SK 100 G4 Wireless Bodypack Transmitter
Modulation
Wideband FM
Frequency Range
A1: 470 – 516 MHz
A: 516 – 558 MHz
AS: 520 – 558 MHz
GB: 606 – 648 MHz
G: 566 – 608 MHz
B: 626 – 668 MHz
C: 734 – 776 MHz
D: 780 – 822 MHz
E: 823 – 865 MHz
JB: 806 – 810 MHz
K+: 925 – 937,5 MHz
Transmission Frequencies
Maximum 1680 receiving frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
1 frequency bank with up to 12 programmable channels
Switching Bandwidth
Up to 42 MHz
Nominal/Peak Deviation
±24 kHz / ±48 kHz
Frequency Stability
≤ ±15 ppm
RF Output Power
Maximum 30 mW at 50 Ohms
Pilot Tone Squelch
Can be switched off
Compander
Sennheiser HDX
AF Frequency Response
Mic: 80 Hz to 18 kHz
Line: 25 Hz to 18 kHz
Signal to Noise Ratio
≥ 110 dBA (1 mV, peak deviation)
Total Harmonic Distortion (THD)
≤ 0.9%
Maximum Input Voltage
Microphone/Line: 3 V eff
Input Impedance
Microphone/Line: 40 kOhms, unbalanced / 1 MOhms
Input Capacitance
Switchable
Input Sensitivity Range
60 dB, adjustable in 3 dB steps
Temperature Range
14 to 131°F (-10 to 55°C)
Power Supply
2 x AA batteries, 1.5 V or BA 2015 accupack
Nominal Voltage
3 V battery / 2.4 V rechargeable battery
Current Consumption
At Nominal Voltage: Approximately 180 mA
With Transmitter Switched Off: ≤ 25 µA
Operating Time
Typically 8 hours
Dimensions (W x L x H)
3.2 x 2.5 x 0.6″ (82 x 64 x 24 mm)
Weight
5.6 oz (160 g)

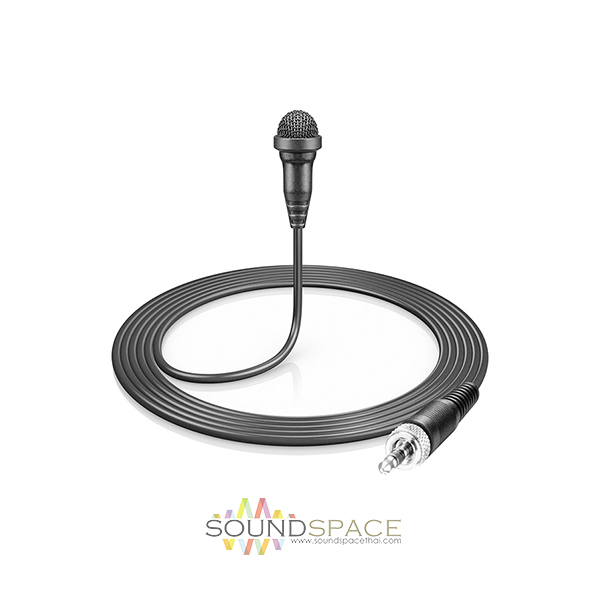

ไมโครโฟน ME 2-II Omnidirectional Lavalier Microphone
