Sennheiser ew 100 G4 Combo ME2-II Lavalier and e835 Handheld Wireless Combo Kit
ชุดไมค์ไร้สาย combo set ไมค์มือถือและแบบหนีบปกเสื้อ Sennheiser EW100 G4-ME2/835-S เป็นชุดไมโครโฟนไร้สายย่าน UHF ในเจนเนอเรชั่น 4 ประกอบด้วยเครื่องรับ EM 100 G4 Rackmount Receiver, เครื่องส่ง SK 100 G4 Bodypack Transmitter, ไมโครโฟนแบบมือถือ Handheld G4 Transmitter & e835 Capsule, ไมค์หนีบปกเสื้อ ME 2-II Clip-On Lavalier Microphone

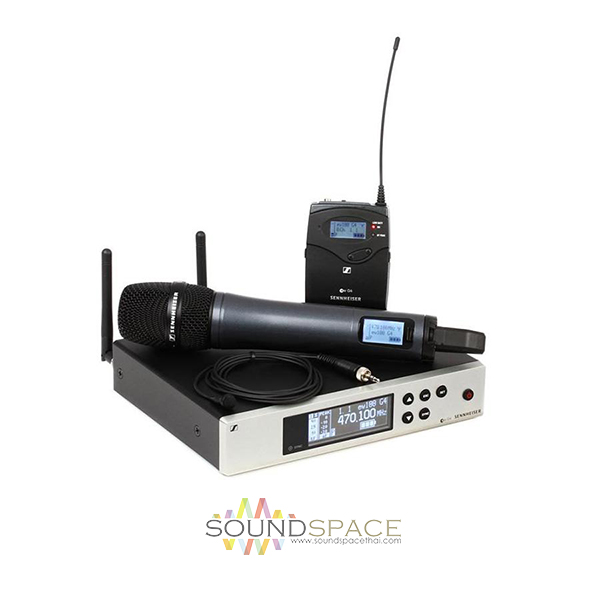

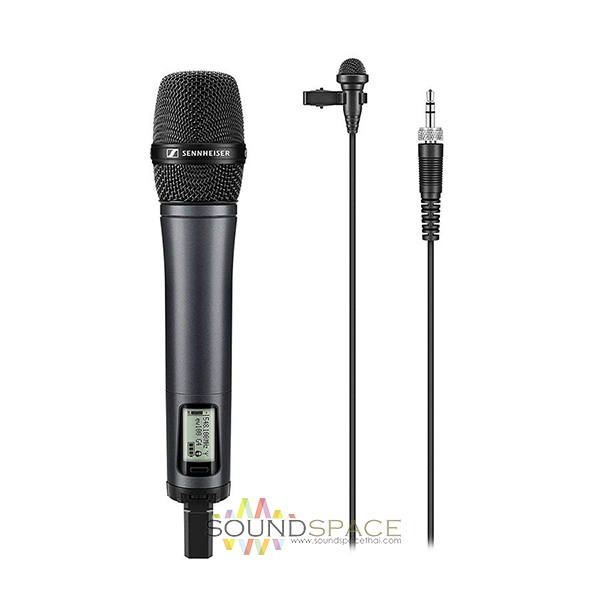

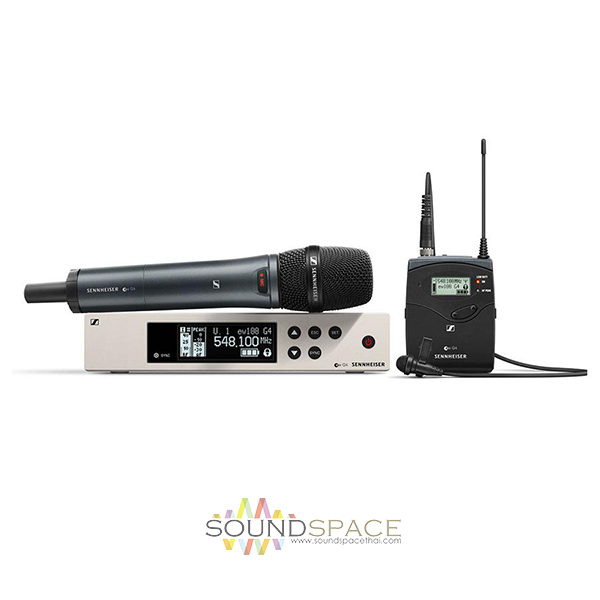

The ew 100 G4 Combo ME 2-II Lavalier and e835 Handheld Wireless Combo Kit from Sennheiser is the latest addition to their evolution family of wireless microphones that is fully compatible with all previous series. This kit includes an EM100 G4 UHF diversity rackmount receiver, an SK 100 G4 bodypack transmitter with ME 2-II lavalier microphone, SKM100 handheld transmitter with an e835 cardioid, dynamic microphone capsule, a GA3 rackmount kit, a RJ10 linking cable, and a mic clip. The combination of both handheld and bodypack transmitters provides the user with options for hands-free speech, handheld performances, interviews, and more.
Both transmitters and receiver synchronize channel and frequency at the touch of a button. The bodypack and handheld transmitters allow you to charge the (optional) rechargeable battery pack while installed. The receiver’s high-contrast LCD display allows for easy operation under dimly-lit conditions and its user-friendly menu makes operation quick and easy.
The ew 100 G4 Combo ME 2-II Lavalier and e835 Handheld Wireless Combo Kit is at home in theaters, clubs, town halls, houses of worship, DJ applications, and more.
Features:
True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
Easy and flexible wireless synchronization between transmitter and receiver via infrared
Fast frequency allocation for up to 12 receivers via new linking functionality
Up to 20 compatible channels
Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
Transmission range: Up to 100 meters / 300′
High RF output power (up to 30 mW) depending on country regulations
Specifications

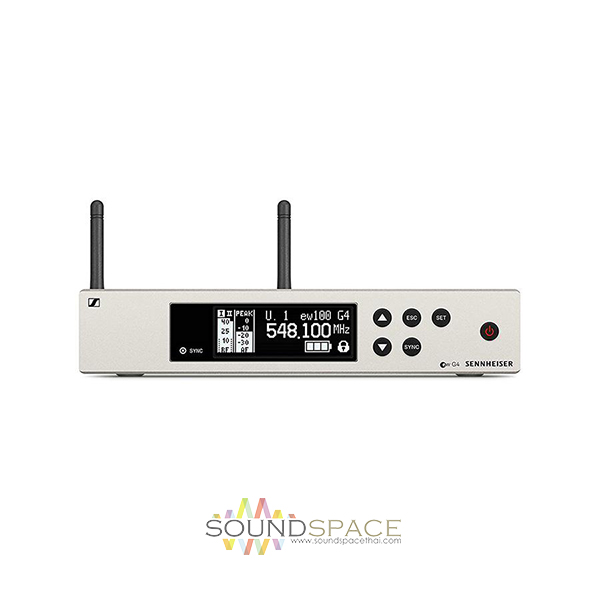

EM 100 G4 Wireless UHF True Diversity Rackmount Receiver
Receiver
Frequency Band
A1: (470 to 516 MHz)
Type of Receiver
EM 100 G4 half-rack mountable true diversity UHF
Receiving Frequency
Maximum 1680 receiving frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
1 frequency bank with up to 12 programmable channels
Switching Bandwidth
Up to 42 MHz
Nominal/Peak Deviation
±24 kHz / ±48 kHz
Receiver Type
True diversity
Sensitivity
< 2.5 μV for 52 dBA (with HDX, peak deviation)
Adjacent Channel Selectivity
Typically ≥ 65 dB
Intermodulation Attenuation
Typically ≥ 65 dB
Blocking
≥ 70 dB
Squelch
Low: 5 dB µV
Middle: 15 dB µV
High: 25 dB μV
Pilot Tone
Squelch: Can be switched off
Antenna Inputs
2 x BNC sockets
Compander
Sennheiser HDX
EQ Presets
Switchable, act on line and monitor outputs
Preset 1: Flat
Preset 2: Low Cut (-3 dB at 180 Hz)
Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
Preset 4: High Boost (+6 dB at 10 kHz)
Maximum 1680 receiving frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
1 frequency bank with up to 12 programmable channels
Switching Bandwidth
Up to 42 MHz
Nominal/Peak Deviation
±24 kHz / ±48 kHz
Frequency Stability
≤ ±15 ppm
RF Output Power
Maximum 30 mW at 50 Ohms
Pilot Tone Squelch
Can be switched off
Compander
Sennheiser HDX
AF Frequency Response
Mic: 80 Hz to 18 kHz
Line: 25 Hz to 18 kHz
Signal to Noise Ratio
≥ 110 dBA (1 mV, peak deviation)
Total Harmonic Distortion (THD)
≤ 0.9%
Maximum Input Voltage
Microphone/Line: 3 V eff
Input Impedance
Microphone/Line: 40 kOhms, unbalanced / 1 MOhms
Input Capacitance
Switchable
Input Sensitivity Range
60 dB, adjustable in 3 dB steps
Temperature Range
14 to 131°F (-10 to 55°C)
Power Supply
2 x AA batteries, 1.5 V or BA 2015 accupack
Nominal Voltage
3 V battery / 2.4 V rechargeable battery
Current Consumption
At Nominal Voltage: Approximately 180 mA
With Transmitter Switched Off: ≤ 25 µA
Operating Time
Typically 8 hours
Dimensions (W x L x H)
3.2 x 2.5 x 0.6″ (82 x 64 x 24 mm)
Weight
5.6 oz (160 g)
SKM 100 G4-S Handheld Transmitter with Mute Switch
Modulation
Wideband FM
Frequency Range
A1: (470 to 516 MHz)
Transmission Frequencies
Maximum 1680 receiving frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
1 frequency bank with up to 12 programmable channels
Switching Bandwidth
Up to 42 MHz
Nominal/Peak Deviation
±24 kHz / ±48 kHz
Frequency Stability
≤ ±15 ppm
RF Output Power
Maximum 30 mW at 50 Ohms
Pilot Tone Squelch
Can be switched off
Compander
Sennheiser HDX
AF Frequency Response
80 Hz to 18 kHz
Signal to Noise Ratio
≥ 110 dBA (1 mV, peak deviation)
Total Harmonic Distortion (THD)
≤ 0.9%
Maximum Input Voltage
3 V eff
Input Impedance
40 kOhms
Input Capacitance
Switchable
Input Sensitivity Range
48 dB, adjustable in 6 dB steps
Temperature Range
14 to 131°F (-10 to 55°C)
Power Supply
2 x AA batteries, 1.5 V or BA 2015 accupack
Nominal Voltage
3 V battery / 2.4 V rechargeable battery
Current Consumption
At Nominal Voltage: Approximately 180 mA
With Transmitter Switched Off: ≤ 25 µA
Operating Time
Typically 8 hours
Dimensions (W x L x H)
2.0 x 10.4 / 50 x 265 mm
Weight
15.9 oz / 450 g
MMD 835 Cardioid Dynamic Capsule for Handheld Transmitters
