Rupert Neve Designs Portico II Channel Module

อุปกรณ์ปรับแต่งเสียง Neve Portico II Channel Comprised of a fully-featured mic preamplifier, 4-band EQ, compressor-limiter, “texture” control and level metering


฿208,000.00 ฿135,200.00



Rupert Neve Designs Portico II Channel Mic Pre/EQ/Compressor/Texture

อุปกรณ์ปรับแต่งเสียง Neve Portico II Channel Comprised of a fully-featured mic preamplifier, 4-band EQ, compressor-limiter, “texture” control and level metering

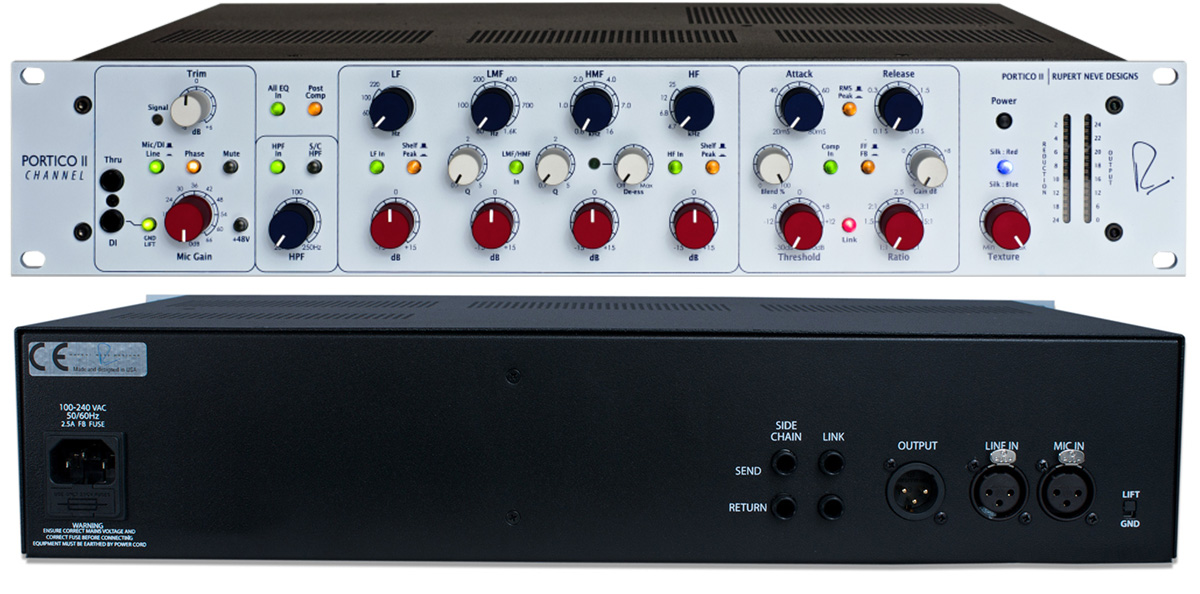

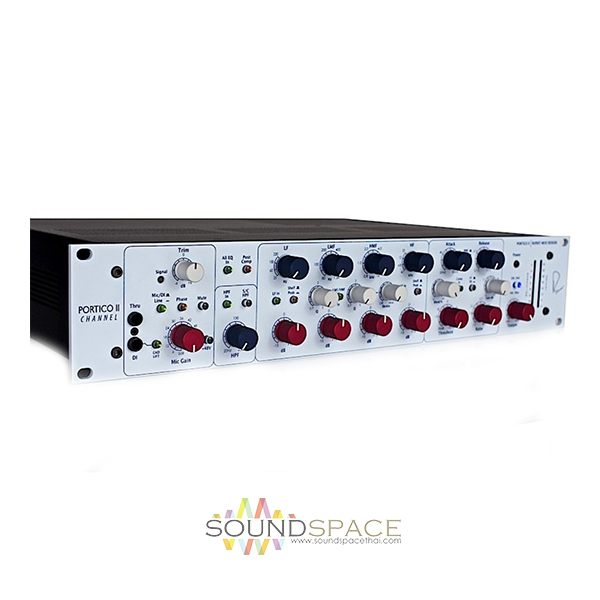

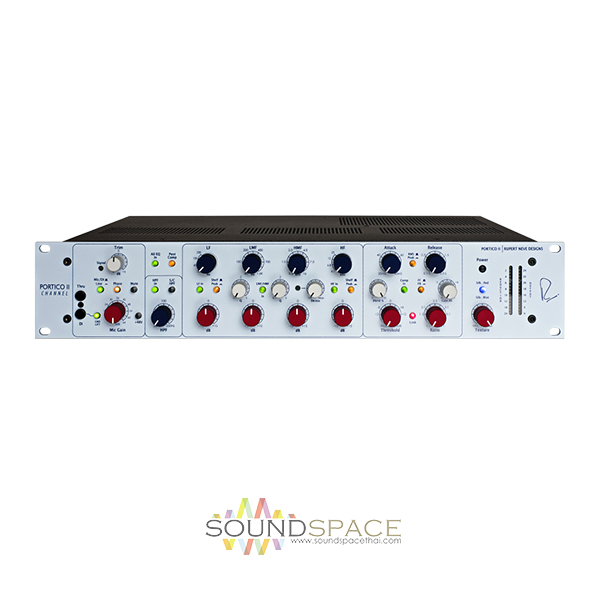

The Portico II Channel was created using the high voltage topologies from the 5088 to create a channel strip with the ultimate sound quality. Comprised of a fully-featured mic preamplifier, 4-band EQ, compressor-limiter, “texture” control and level metering, the Portico II Channel includes a bevy of new features including; Variable Silk with Texture control, a fully tunable “de-esser”, multiple VCA filtering and detection options, a transient-optimized swept HPF and parallel compression blending. With its simple yet powerful topologies and extensive feature set, every element of the Portico II: Channel is geared towards empowering recording artists to realize these visions.

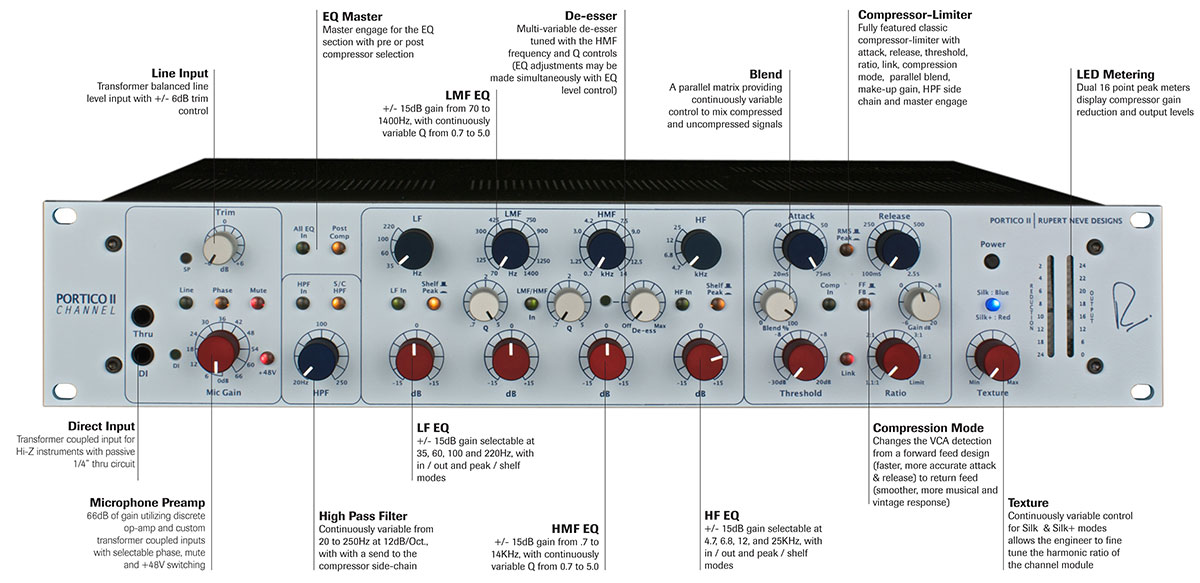

Input Section

Input signals may be derived from any of three sources; Microphone, Line or DI. The Microphone input has a 10K Ohm non-reactive input resistance that handles a full 26dBu signal without the need for a pad. A primary Gain control provides 66dB of gain in 6dB increments for easy recall with a +/- 6dB Trim for fine adjustment. A transient-optimized HPF variable from 20-250Hz is included. Additionally, a 48V Phantom Power switch, Phase Inversion, Signal Present indicator and a Mute switch are included. The pre-amp is a TLA non-reactive design that precludes the loading of microphones with limited driving capability and which maintains a 2 dB noise figure over a wide range.

Inserting a plug into the DI input selects a 3M Ohm discrete FET DI circuit with a transformer-coupled topography that optimizes both the microphone and DI inputs, allowing low impedance microphones and high impedance sources like electric guitars and basses to sound their very best. Primary Gain and Trim controls are fully operational. A “Thru” jack on the front panel that duplicates the unaffected source signal allows the use of an external amplifier if required. A “Line” switch selects the independent Line XLR non-reactive input circuit that includes the HPF and Level Trim controls.



Continuously variable control for Silk and Silk+ modes allows the engineer to fine tune the harmonic ratio and tonality of the channel.

Post Comp

Moves the EQ after the Compressor


Tunable with the HMF EQ bandwidth reduction, the multi-variable De-Esser can be used to soften harsh sibilance in voices and instruments


A parallel matrix providing continuously variable control to mix compressed and uncompressed signals


Changes the VCA Detection from a forward feed design (fast, more accurate attack & release) to a feed back design (smoother, more musical response)

RMS / Peak

Overrides the attack setting, using a combination of peak and RMS detection set below 1ms

Side Chain Send/Return

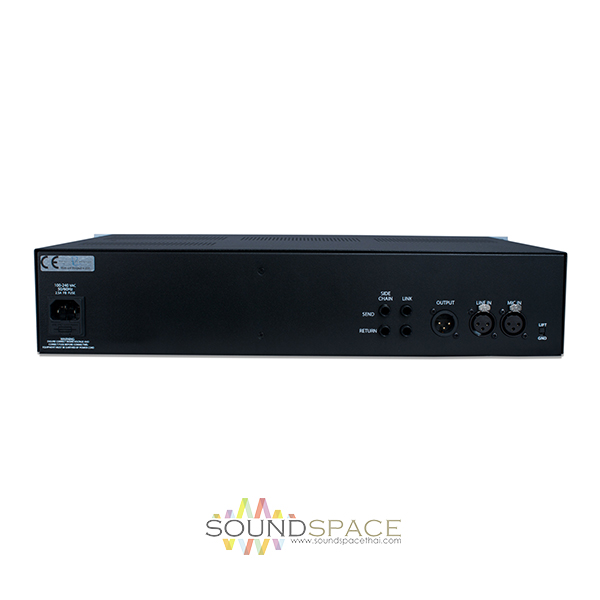

External compressor side chain send and return on 2 x TRS jacks. The send is always active and normalled to the return (NOTE: If the send and return are connected to a patchbay, the send should be normalled or connected to the return by default, as the compressor will not trigger if the return has no signal)


Dual 16 point peak meters display compressor (not de-esser) gain reduction and output levels

High Pass Filter

Continuously variable from 20-250Hz

HPF to Side Chain

Uses the HPF in the Compressor Side Chain


Provides 66dB in 6dB steps


Continuous +/- 6dB level contro

Phase Inverts

Reverses the polarity of the signal

Phantom Power

Selectable 48V for powering microphones


Discrete FET input for Hi-Z instruments

Line Input

Selectable +4 balanced input


+/-15dB adjustment at 35, 60, 100, and 220 Hz, independent LF engage, selectable classic bell or accelerated shelf curves


+/-15dB adjustment from 70 to 1.4KHz, with a continuous “Q” from .7 to 5., engaged with the MF switch.


+/-15dB adjustment from 700Hz to 14KHz, with a continuous “Q” from .7 to 5., engaged with the MF switch.


+/-15dB adjustment at 4.7, 6.8, 12, and 25kHz, independent HF engage, selectable classic bell or accelerated shelf curves

All EQ In

Enables all EQ Bands (Individual bands must still be engaged)

Comp In

Engages Compressor section


Mic Preamp
Frequency Response -3 dB @ 2 Hz
-3 dB @ 160 kHz
Noise Measured at Main Output, Unweighted: 22 Hz to 22 kHz, terminated 150 Ω
With Gain at Unity: Better than -92 dBu
With Gain at 66 dB: Better than -56 dBu
Equivalent Input Noise: Better than -123 dBu
Gain Unity to +66 dB in 6 dB steps
Trim continuously adjustable from -6 to +6 dB
Line Input Trim continuously adjustable from -6 to +6 dB
Maximum Output Level Maximum output from 20 Hz to 40 kHz is +25 dBu
Phantom Power +48 VDC ± 1%
Total Harmonic Distortion/Noise @ 1 kHz, +20 dBu Output: Better than 0.002%As Above, Silk Engaged: Better than 0.2% Second Harmonic

@ 20 Hz, +20 dBu Out: Better than 0.004%

@ 20 Hz, +20 dBu Out: Better than 0.020%

IMD Better than 0.002%
Slew Rate Better than 4 V/uS
Type High pass
Frequency Continuously variable from 20 to 250 Hz
Slope 12 dB/octave bessel
Alternate Path: Can be routed to the compressor side chain
Frequency LF Section: Rotary switch selectable 35, 60, 100, 220 HzLMF Section: Continuously variable from 70 to 1,400 Hz

HMF Section: Continuously variable from 700 Hz to 14 kHz

HF Section: Rotary switch selectable 4.7, 6.8, 12, 25 kHz

Shelf Type
LF & HF Sections: Rupert Neve Designs Accelerated Slope
Peak / Bell Q
LF & HF Sections: Approximately 2.5
LMF & HMF Sections: Continuously variable from 0.7 to 5
Maximum Range LF, LMF, HMF, & HF Sections: Cut 15 dB, Boost 15 dB
Threshold Continuously variable from -30 to +20 dBu
Ratio Continuously variable from 1.1:1 to 20:1 (LIMIT)
Blend: Continuously variable from 0% to 100% compressor
Gain Continuously variable from -6 to +20 dB
Attack Continuously variable from 20 to 75 ms (0.1 ms with FAST)
Release Continuously variable from 100 ms to 2.2 sec
Power Consumption 1 A @ 117 VAC, 0.5 A @ 220 VAC
Fuse 5 x 20 mm, 2.5 A, fast-acting, ceramic body fuse Bussman-type GDA 2.5 A or equivalent required
Dimensions (H x W x D) 3.5 x 19.0 x 10.0″ (88.9 x 482.6 x 254.0 mm)
Weight 19.0 lb (8.6 kg)
