RANE HAL3s Multiprocessor

Name: RANE HAL3s Multiprocessor
Brand: RANE
SKU: 9622
Price: 62800.00 THB
Availability: InStock

Original price was: ฿78,600.00.Current price is: ฿62,800.00.

อุปกรณ์ปรับแต่งเสียง HAL3s Multiprocessor which supports 6 input by 10 output audio with 2 input x 6 output balanced analog connections, and another 4 input x 4 outputs digitally RADs (remote digital devices)

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

ดูสินค้าแบรนด์เดียวกันทั้งหมด: RANE

สอบถามและสั่งซื้อสินค้า

Category: ดิจิตอลโปรเซสเซอร์ ( DSP) Tag: RANE

แชร์สินค้านี้: Facebook X LINE

Description

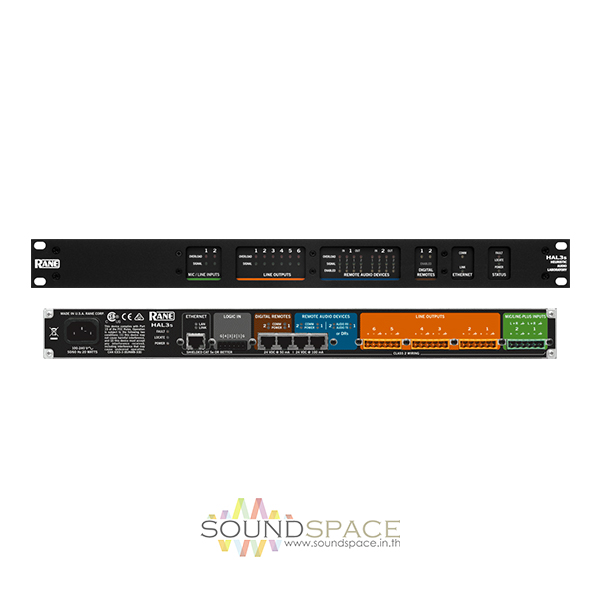

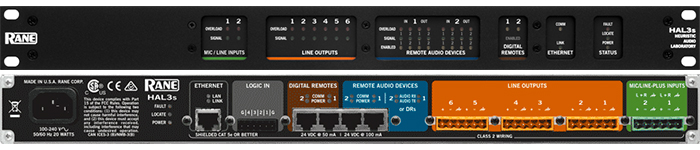

Rane HAL3s Multiprocessor

The HAL3s from Rane is a Multiprocessor which supports 6 input by 10 output audio with 2 input x 6 output balanced analog connections, and another 4 input x 4 outputs digitally through RADs (remote digital devices). The two analog inputs are Line/Line-Plus/Mic/Mic + 48V phantom power. In addition to supporting balanced line and microphone inputs, this configuration allows a stereo pair connection to an input, converting to a single L+R mono signal.

Two DR (digital remote) ports provide support for preset recall, level control and select functions using a DR1, DR2, or DR3. If more logic inputs and outputs are needed for ports, switches or external indicators (DR4 or DR5) may be added. DRs can be operated from a RAD port, so up to four DRs can plug into a HAL3s when RADs aren’t needed.

Features:

DSP contains 2400 MIPS of processing power
Ethernet 1000BASE-T with Zeroconf service discovery protocol for easy set up
2 analog Mic / Line-Plus Inputs on Euroblock connectors
6 analog balanced line outputs on Euroblock connectors
Front panel signal and overload indicators for all inputs and outputs
Two RAD Ports, each Port 2 in x 2 out plus control channel
Four Digital Remote Ports [DR can connect to RAD port]
Four Logic Inputs on Mini-Euroblock 6-pin connectors

Specifications

Analog I/O	2 x mic / line / line-plus inputs 6 x line outputs
Connectors	4 x 6-pin, 5 mm pitch, Euroblock
Codec	24 bit, 48 kHz
Input Impedance	2.9 kΩ, 1% each leg to ground
Isolation Between Channels	> 100 dB typical 20 – 20k Hz, unity gain, channel-to-channel
CMRR	55 dB, minimum 1 kHz
Microphone Inputs	Dynamic Microphone Mode: Gain: +30 dB to +50 dB THD + N: < 0.005%, typical 20 – 20 kHz, +4 dBu out, 0 dB digital gain Equivalent Input Noise: -120 dBu, typical 20 – 20 kHz, 150 Ω source, 30 dB gain Maximum Input: -18 dBV (125 mVrms), typ 1 kHz, < 0.01% THD+N Frequency Response: 20 – 20 kHz, +0.0 / -0.3 dB +4 dBu out, 100k Ω load, Microphone Input to Output Condenser Microphone Mode: Gain: +18 dB to +38 dB Phantom Power: +48 VDC 10 mA max per input THD + N: < 0.005%, typical 20 – 20 kHz, +4 dBu out, 0 dB digital gain Equivalent Input Noise: -110 dBu, typ 20 – 20 kHz, 150 Ω source, 18 dB gain Maximum Input: -6 dBV (500 mVrms), typ 1 kHz, < 0.01% THD+N Frequency Response: 20 – 20 kHz, +0.0 / -0.3 dB +4 dBu out, 100k Ω load, Mic Input to Output
Line Inputs	Line + Mode: Gain: 0 dB to +20 dB THD + N: < 0.007 % typical 20 – 20 kHz, +4 dBu out, 0 dB digital gain Maximum Input: +14 dBu typical 1 kHz, < 0.01% THD+N, each leg Frequency Response: 20 – 20 kHz, +0.0 / -0.3 dB, +4 dBu out, 100k Ω load, Line-plus Input to Output Dynamic Range (In to Out): 108 dB, maximum re +20 dBu, 20 kHz BW, A weighted, Rs = 50 Ω Line Mode: Gain: 0 d THD + N: < 0.005 % typical 20 – 20 kHz, +4 dBu out, 0 dB digital gain Maximum Input: +14 dBu typical 1 kHz, < 0.01% THD+N Frequency Response: 20 – 20 kHz, +0.0 / -0.3 dB, +4 dBu out, 100k Ω load, Line Input to Output Dynamic Range (In to Out): 108 dB, maximum re +20 dBu, 20 kHz BW, A weighted, Rs = 50 Ω
Outputs	Impedance: 200 Ω, 1% each leg Maximum Output: +20.0 / +15.5 dBu typ 1 kHz, 100 kΩ / 600 Ω load
Indicators	Signal: -50 dBFS, green LED, peak-reading Overload: -0.5 dBFS, red LED, peak-reading
Propagation Delay	RAD In to RAD Out: 1.71 ms RAD In to Analog Out: 1.85 ms Analog In to RAD Out: 2.25 ms Analog In to Analog Out: 2.39 ms
DSP	Processing Power: 2400 MIPS, maximum 1 DSP @ 300 MHz with up to 8 instructions / cycle Word Length: 32 / 64-bit Floating Point Delay Memory: 20 seconds maximum
Computer Interface	Type: Ethernet 1000 base-T Cable: Shielded CAT 5e or better Length: 300′ (100 m) maximum
Ports	RAD Port: Audio Channels: 2 in x 2 out, control channel, 24-bit, 48 kHz Power: 24 VDC @ 100 mA per port Length: 500′ (152 m) DR Ports: Power: 24 VDC @ 50 mA per port Length: 1000′ (300 m)
Logic Input	Connector: Mini Euroblock, 6-pin, 3.81 mm pitch, black Internal Pull-Up: 51.1 kΩ, 5.0 V, protected to +24 V, reverse polarity protected Vin High: > 2.2 V Vin Low: < 0.7 V
Wiring	Class 2
Power Requirements	100 to 240 VAC, 50 / 60 Hz, 20 W max
Ambient Temperature	104° F (40° C)
Approvals and Compliance	CE, FCC, CCSAUS
Dimensions (H x W x D)	1.7 x 19.0″ x 8.25″ (4.4 x 48.3 x 20.9 cm)
Weight	4.75 lb (2.2 kg)
