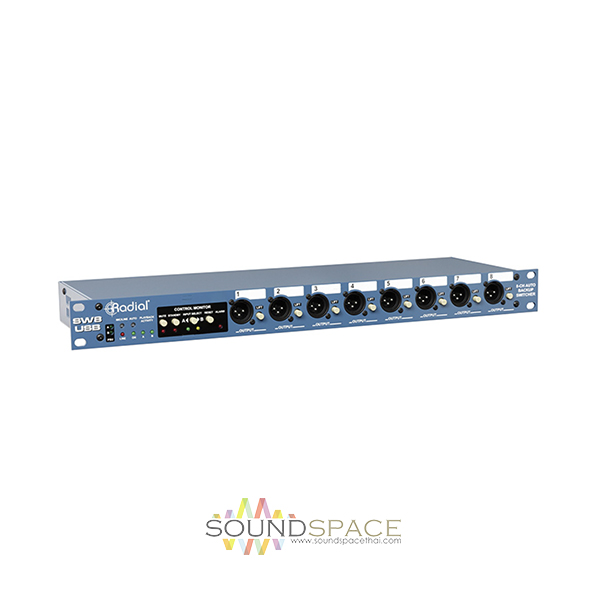

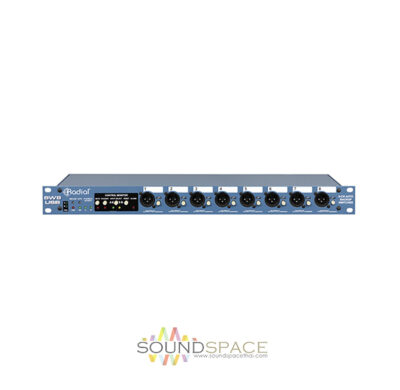

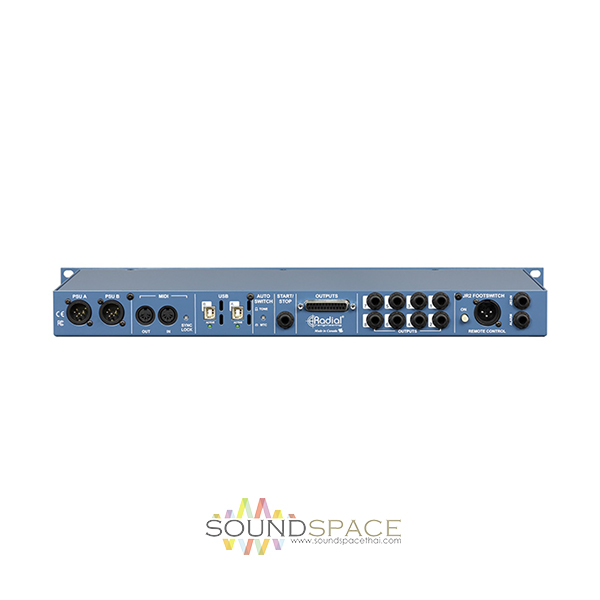

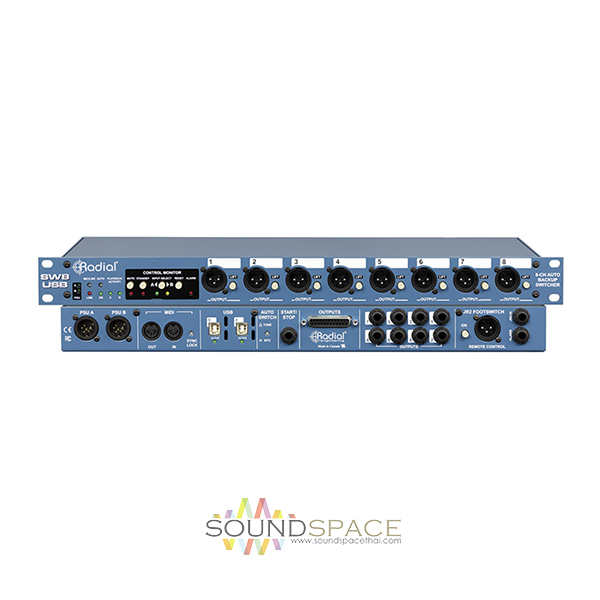

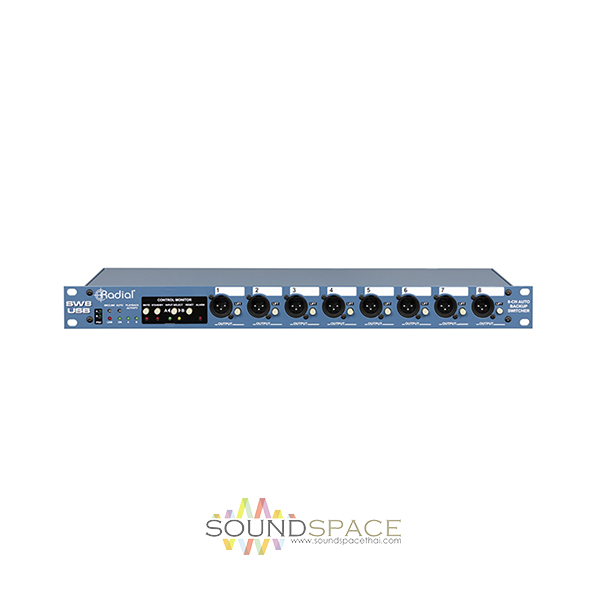

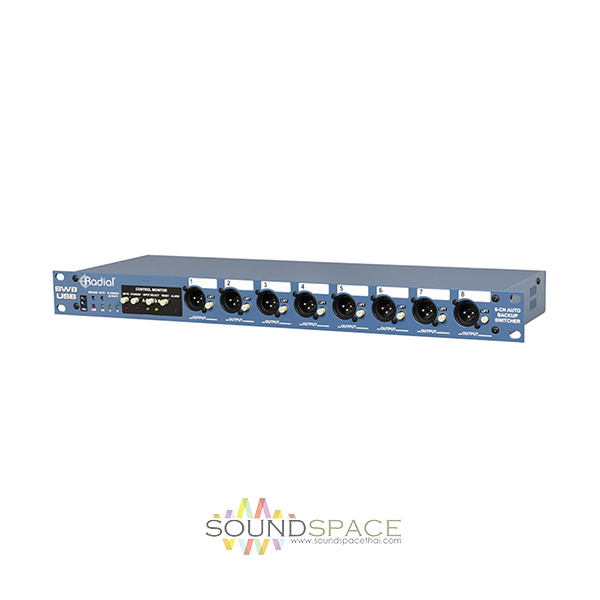

Radial SW8-USB Dual-USB Auto-Switcher and Interface
ออโต้สวิตช์และอินเตอร์เฟส Radial SW8-USB, Dual USB Interface and Auto-switcher with 24-bit/192kHz Converters, 8 Balanced Analog Outputs on 1/4″ TRS, Synchronize both playback systems using MTC, All-in-one backing track solution, Exclusively for MacOS
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม
฿87,900.00
Description
Radial SW8-USB Dual-USB Auto-Switcher and Interface
ออโต้สวิตช์และอินเตอร์เฟส Radial SW8-USB, Dual USB Interface and Auto-switcher with 24-bit/192kHz Converters, 8 Balanced Analog Outputs on 1/4″ TRS, Synchronize both playback systems using MTC, All-in-one backing track solution, Exclusively for MacOS

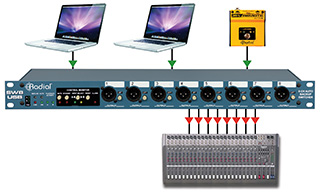

The SW8-USB is the complete solution for performances that utilize redundant playback systems for backing tracks, combining two built-in high performance USB interfaces with an auto-switching feature that detects dropouts and effortlessly switches to the backup computer in an instant.
Dual USB inputs with separate 24bit/192kHz converters allow two computers to be connected in tandem, so digital workstations on both machines can connect to the SW8-USB as an audio and MIDI interface.
Start/stop synchronization is also possible between both computers through MTC, ensuring flawless switching between playback rigs with less equipment than ever.
Features:
- Easily switch between redundant playback systems
- 2 USB ports with 24-bit/192kHz converters eliminate the need for additional audio interface
- 8 channels of high-quality audio
- Manual or seamless automatic switching
- Line-level and transformer-isolated mic level outputs
- Synchronize both playback systems using MTC
- All-in-one backing track solution
- Exclusively for MacOS
Specifications
| Transformer: | Eclipse ET-DB2 | |
| Frequency response: | 20hz-20Khz (+0.0dB/-0.5dB) | |
| Dynamic range: | (XLR Outputs) 120dB (Monitor Outputs) 120dB | |
| Total harmonic distortion: | (XLR Line Level Outputs) 0.006% @ 1Khz +18dBu (XLR Mic Level Outputs) 0.009% @ 1Khz +18dBu (Monitor Outputs) 0.006% @ +18dBu | |
| Intermodulation Distortion: | (XLR Outputs) 0.0002% @ +18dBu (Monitor Outputs) 0.0002% @ +18dBu | |
| Output Impedance: | (XLR Outputs) 150 Ohms (Monitor Outputs) 150 Ohms | |
| Common Mode Rejection Ratio: | (XLR Line Level Outputs) -98dB (XLR Mic Level Outputs) -90dB (Monitor Outputs) -98dB | |
| Noise: | (XLR Outputs) -120dB (Monitor Outputs) -120dB | |
| Switch-Over Noise: | -90dBu | |
| Sample Rate | 44.1, 48, 88.2, 96, 176.4, 192 | |
| Supported Sample Rates: | 44.1, 48, 88.2, 96, 176.4, 192 | |
| Bit Depth: | 16bit, 24bit | |
| D/A Latency: | 7.4ms @ 96kHz, 4.6ms @ 192kHz | |
| Switch-Over Latency: | 3ms (when using Tone via SPDIF) | |
| Maximum Output: | (XLR Outputs) +18dBu @ 0DBFS (Monitor Outputs) +18dBu @ 0DBFS | |
| Features | ||
| Ground lift, Remote Footswitch | ||
| Input Connectors: | 2 x Type-B USB 2.0 | |
| Output Connectors: | XLR-F, TRS, DB25 | |
| Extras: | MIDI I/O, Dual Power Supply, Remote Footswitch (optional) | |
| General | ||
| Size (L x W x D): | 17.5″x 6″x 1.75″ (44.5 cm x 15.25 cm x 4.5 cm) | |
| Weight: | 9.2lb (4.2kg) | |
| Shipping size (L x W x D): | 22″x10.375″x4.5″ (55.9cm x 26.4cm x 11.4cm) | |
| Shipping weight: | 9.7lb(4.4kg) | |
| Power: | 100V to 240V, locking 4-pin XLR | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
Downloads
ดาวน์โหลด Data Sheet SW8-USB
