เครื่องจัดการสัญญาณ Radial SGI-44 Guitar Interface Signal Manager
อุปกรณ์จัดการสัญญาณเสียงกีตาร์ Radial SGI-44,Balanced line driver for JX-44 guitar & amp switcher, Send signal over 100 meters (300ft) without loss, 100% discrete class-A circuit with Drag control, Bidirectional send & receive effects router
เพิ่ม
฿18,000.00
Description
Radial SGI-44 1-ch Studio Guitar Interface for Radial JX-44 Signal Manager
อุปกรณ์จัดการสัญญาณเสียงกีตาร์ Radial SGI-44,Balanced line driver for JX-44 guitar & amp switcher, Send signal over 100 meters (300ft) without loss, 100% discrete class-A circuit with Drag control, Bidirectional send & receive effects router

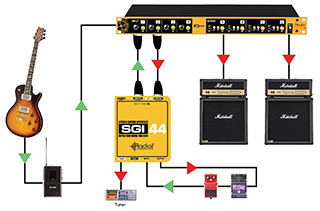

The SGI-44 can send guitar signals over long distances without signal loss or noise, with built-in send and receive functions for bidirectional signal routing. When used in conjunction with the JX-44 guitar and amp switcher, it allows you to keep your pedalboard at your feet on stage, while instrument switching and amp control is managed remotely by your stage tech.
A pair of SGI-44s can also be used together to extend the effects loop of your amplifier to any point on stage, so you can keep your favorite pedals connected to the amp’s effects loop no matter how far away your amp is located.
The SGI-44 takes care of all the balancing, buffering, and impedance matching to ensure your signals are delivered without noise or distortion.
Features:
- Designed for use with Radial’s JX-44 signal manager
- Balanced operation prevents noise from sneaking into the signal
- Capable of driving 300-foot cable runs without signal loss
- Both sends and receives signals
- Drag control fine-tunes the load on your pickups
- Upgraded Jensen transformers provide uncompromising noise protection
Specifications
| Audio circuit type: | Active 100% discrete class-A with transformer isolation | |
| Frequency response: | 20Hz ~ 20kHz (-2dB) | |
| Dynamic range: | 105dB | |
| Total harmonic distortion: | 0.005% @ 1k | |
| Intermodulation Distortion: | 0.02% @ 1k | |
| Input Impedance: | Variable from 10k Ohms ~ 1 megaOhm | |
| Output Impedance: | 218 Ohms (¼” unbal. output); 280 Ohms (TX bal. output) | |
| Noise Floor: | -100dBu | |
| Maximum Input: | +2dBu | |
| Features | ||
| Ground lift, Drag Control | ||
| Input Connectors: | 1/4″, XLR | |
| Output Connectors: | 1/4″, XLR | |
| General | ||
| Construction: | 14-gauge steel chassis & outer shell | |
| Size (L x W x D): | 4.25″ x 2″ x 5″ (102 x 76 x 165mm) | |
| Weight: | 3lbs. (1.36kg) | |
| Shipping size (L x W x D): | 5.25″ x 2.5″ x 11″ ( 127 x 64 x 279mm) | |
| Shipping weight: | 3.1lbs (1.41kg) | |
| Power: | +15VDC/400mA adapter included | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
Downloads
ดาวน์โหลด All Docs SGi-44
