ไดเร็คบ๊อกซ์ Radial PZ-Di Orchestral Instrument DI

ไดเร็คบ๊อกซ์ Radial PZ-Di Direct สำหรับสำหรับวงออเคสตร้า Box with Optimized for Orchestral Instruments with Adjustable Load, Variable High-pass Filter, Polarity Reverse, and Low-pass Filter, 48V phantom powered, does not require batteries

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

฿10,000.00

สอบถามและสั่งซื้อสินค้า

Description

Radial PZ-Di Acoustic & Orchestral Instrument Direct Box

ไดเร็คบ๊อกซ์ Radial PZ-Di Direct สำหรับสำหรับวงออเคสตร้า Box with Optimized for Orchestral Instruments with Adjustable Load, Variable High-pass Filter, Polarity Reverse, and Low-pass Filter, 48V phantom powered, does not require batteries

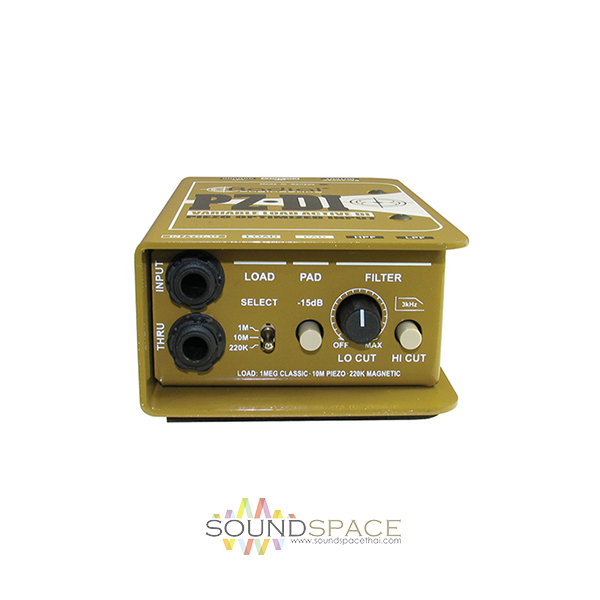

The PZ-Di has a variable load selector switch that allows you to set the input impedance of the direct box, so you can optimize the performance with your instrument’s pickups.

The 1 meg ohm position delivers the classic impedance found on most active DI boxes, while the 220k ohm setting warms up the tone of magnetic pickups to provide the feel and tone as if your instrument were connected directly to an amplifier.

The third setting is an ultra-high 10 meg ohm impedance that is specifically designed for piezo transducers, helping compensate for the harsh or squawky tone that can occur when a piezo is connected to a lower impedance input.

Features:

  • Optimized for orchestral instruments on a live stag
  • Adjustable load for piezo and magnetic pickups
  • Variable highpass filter to control bass resonance
  • Lowpass filter gently warms the top end of active instruments
  • 48V phantom powered, does not require batteries

Specifications

General
Item Type
Standard DI
Number of Channels
Single-Channel
Active/Passive
Active
Circuitry
Solid-State (FET)
Preamp
Pad
-15 dB
Ground Lift
Yes
Polarity Reverse
Yes
EQ & Tone Shaping
Low-Cut/High-Pass Filter
Yes
Connectivity
Audio I/O
1x 1/4″ TS Unbalanced Input
1x 1/4″ TS Unbalanced Thru
1x XLR 3-Pin Balanced Output
Performance
Frequency Response
20 Hz to 20 kHz
Input Impedance
10 Megohm to 220 Kilohms (Unbalanced)
50 Kilohms (Pad On)
Output Impedance
200 Ohms
Total Harmonic Distortion/Noise
0.02%
Power
Operating Voltage
48 V (Phantom Power)
Physical
Dimensions
4.25 x 2.75 x 1.75″ / 107.95 x 69.85 x 44.45 mm
Weight
19.2 oz / 544.31 g
Packaging Info
Package Weight
1.75 lb
Box Dimensions (LxWxH)
6.4 x 4.2 x 2.9″
