Description
Radial Catapult Mini TX Cat 5/6 Audio Snake Module with Female XLR Connectors
อุปกรณ์ส่งสัญญาณเสียง analog ผ่านสายแลน Radial Catapult Mini TX, Sends Analog Audio over Cat 5/6 Cable, Four Female XLR Inputs, RJ45 Output, 7 Hz to 20 kHz Frequency Response, Powder-Coated Steel Chassis, Color-Coded Heatshrink Labels
The Catapult Mini TX from Radial Engineering acts as a 4-channel audio snake. It allows you to send mic or line-level signals from one location to another without signal loss, noise, or interference, and without any digital audio conversion needed.

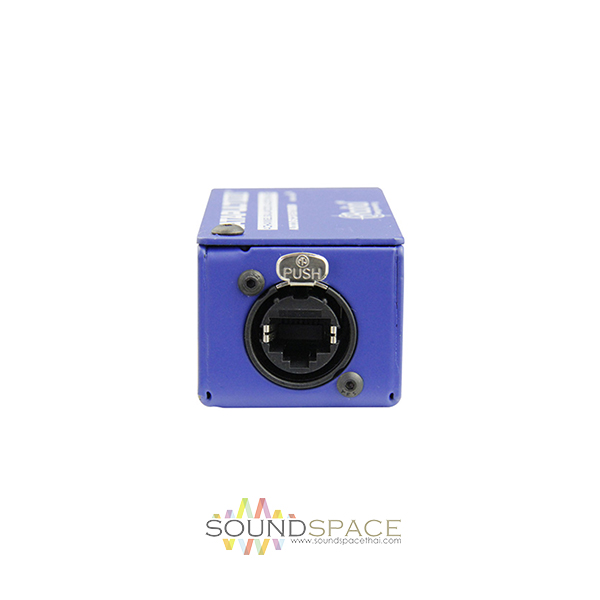

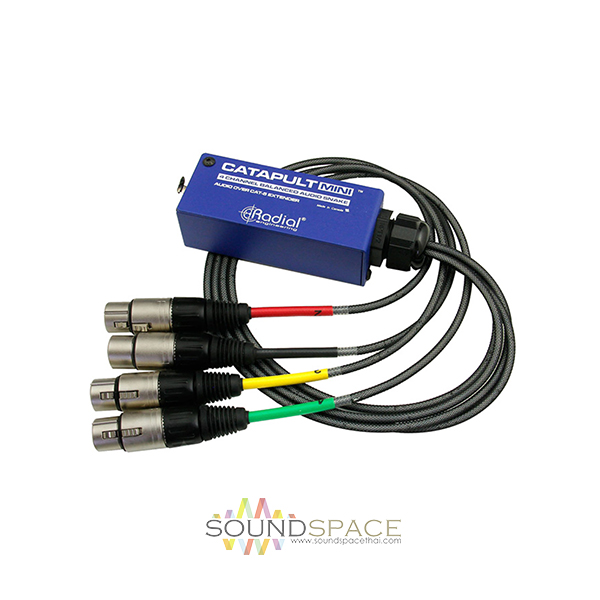

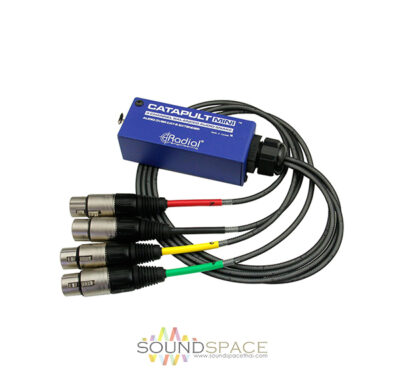

The Catapult Mini TX features four female XLR inputs on cable tails and an RJ45 output, which sends analog audio over cat 5/6 Ethernet cables. The housing is made of 16-gauge steel for handling any environment and is powder coated.
Features:
- Transforms a standard Cat 5 or Cat 6 cable into a 4-channel analog snake (when used in conjunction with a Catapult MINI RX (sold separately)
- Uses the analog conductors in any shielded Cat 5 or Cat 6 cable to deliver 4 balanced audio lines
- Employs straight-wire passive operation — it’s analog all the way, with no digital conversion
- Can also work via a building’s pre-existing Ethernet network
