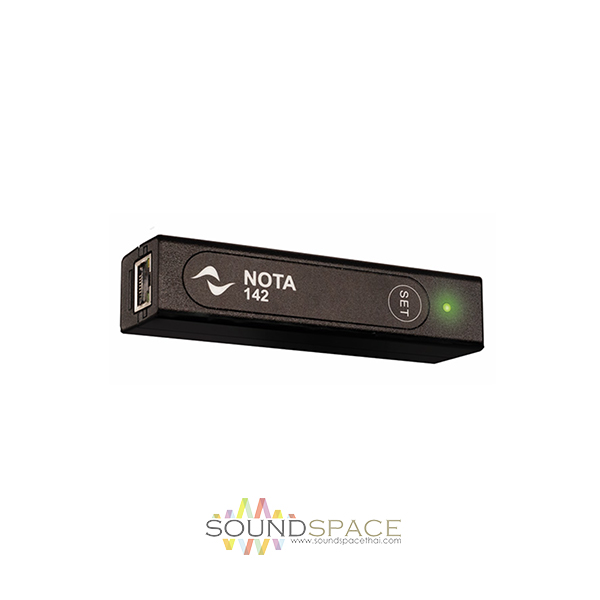

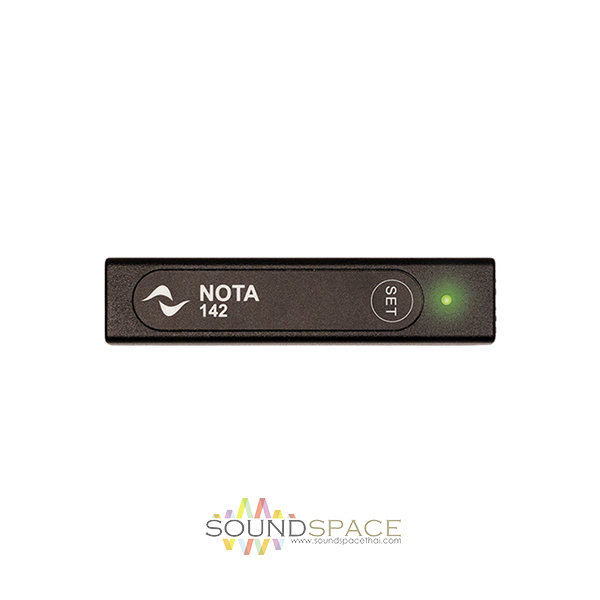

เพาเวอร์แอมป์ Powersoft NOTA 142 Ultra Compact PoE Amplifier

Name: เพาเวอร์แอมป์ Powersoft NOTA 142 Ultra Compact PoE Amplifier
Brand: d&amp;b audiotechnik
SKU: 38186
Price: 26000.00 THB
Availability: InStock

Original price was: ฿32,500.00.Current price is: ฿26,000.00.

เครื่องขยายเสียงพกพาขนาดเล็ก Powersoft NOTA 142 Ultra Compact PoE Amplifier, Class-D Amplifier มีกำลังขยาย 2x140W 4 Ohms 2x70W 8 Ohms, Integrated DSP, PoE/PoE+ Powered, USB -C Connectivity, Auto Setup, Power Sharing, ควบคุมผ่านเครือข่าย

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

ดูสินค้าแบรนด์เดียวกันทั้งหมด: d&b audiotechnik

สอบถามและสั่งซื้อสินค้า

Category: เพาเวอร์แอมป์ (Power AMP) Tag: d&b audiotechnik

แชร์สินค้านี้: Facebook X LINE

Description

Powersoft NOTA 142 Ultra Compact PoE Amplifier 2x140W

NOTA 142 is an ultra compact, versatile PoE/PoE+ amplifier designed for networked AoIP applications where space and wiring constraints are a concern.

Tailored for AV and IT system integrators, it offers an intuitive installation process with a single Ethernet cable for power and data.

With its modular design and flexibility, NOTA seamlessly integrates into existing systems and expands them as needed, ensuring efficient operation in any networked environment.

Features:

PoE/PoE+ Integration Enables power and data transmission over Ethernet, simplifying installation and reducing wiring complexity.
Compact & Space-Saving Design Highly compact form factor, ideal for installations with limited space, ensuring easy integration in tight environments.
Optimized Performance Delivers 140 W power across two channels, ensuring high performance considering its compact form factor.
Auto Setup Automatically measures the impedance curve of connected speakers and applies a high-pass filter in order to optimize sound quality and preserve the speakers.
Onboard DSP Includes built-in DSP, offering audio control, speaker health monitoring, and system optimization.
Control Options Compatible with ArmoníaPlus software and third-party software products through the available APIs for easy control.

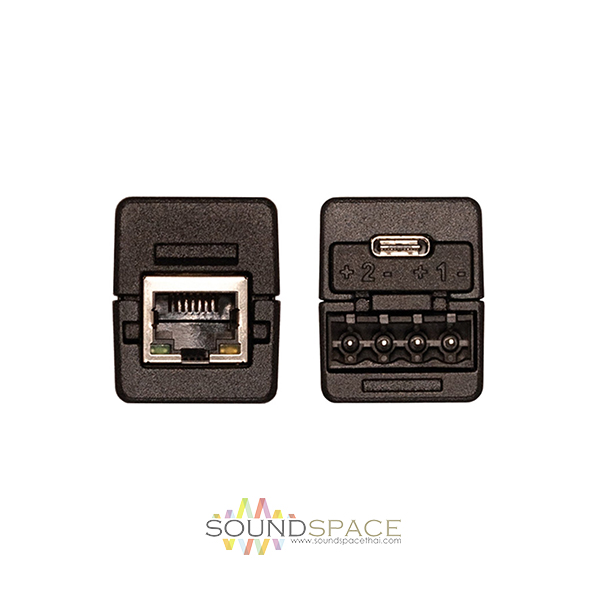

USB Connectivity Features a USB-C port for expanding systems by connecting external multimedia devices and acting as an USB to AES67 converter, enhancing system flexibility.
AES67 Support Native support for the AES67 standard, enabling easy AoIP integration with other networked systems.
Cloud Monitoring With Verso Gateway, the amplifier supports cloud monitoring via MyUniverso, allowing for real-time system diagnostics and control from anywhere.

Specifications

Audio Parameters
Number of Output Channels	2
Rated Power @ 4Ω	140 W
Max Output Power (per channel)
@ 16Ω (symmetrical)	35 W (PoE+), 30 W (PoE)
@ 8Ω (symmetrical)	50 W (PoE+), 35 W (PoE)
@ 4Ω (symmetrical)	70 W (PoE+), 50 W (PoE)
@ 2Ω (symmetrical)	50 W (PoE+), 50 W (PoE)
@ 16Ω (asymmetrical)**	40 W (PoE+), 35 W (PoE)
@ 8Ω (asymmetrical)**	70 W (PoE+), 50 W (PoE)
@ 4Ω (asymmetrical)**	110 W (PoE+), 65 W (PoE)
@ 2Ω (asymmetrical)**	80 W (PoE+), 55 W (PoE)
Frequency Response	10 Hz – 22 kHz
THD+N (0.1W to Half Power)	< 0.5%
Dynamic Range	-115 dB(A)
DSP
DA Converters	24 Bit @ 48 kHz, 115 dB-A Dynamic Range
Internal Precision	32 bit floating point
Latency	< 10 ms
EQ	Parametric IIR: peaking, hi/lo-shelving, all-pass, band-pass, band-stop, hi/lo-pass
Crossover	Butterworth, Linkwitz-Riley, Bessel:6 dB/oct to 48 dB/oct (IIR)
Limiters	RMS voltage, Peak limiter
Input Delay	0 – 100 ms
Output Delay	0 – 10 ms
Startup Time	1.1 ms
Power Supply
Type	PoE / PoE+
Voltage Range	57 – 44 V
Max Current Drawn	600 mA
Efficiency	≥ 75%
Environment
Operating Temperature	0°C to +35°C
Humidity	90% RH, non-condensing
IP Class	50
Certifications	CE, FCC, UKCA, CSA, Plenum rated
Mechanical Parameters
Nominal Size (D x W x H)	115 x 25.4 x 31.4 mm (4.5″ x 1″ x 1.2″)
Weight	198 g (0.43 lb)
