ตู้ลำโพง NEXO P12 Point Source Loudspeaker 12″
ลำโพง NEXO P12 เป็นลำโพงกลางแจ้งแบบไม่มีกำลังขยาย Point-Source รุ่นล่าสุดจาก NEXO (2019) มีขนาดดอกลำโพง LF 12 นิ้ว Neodymium driver เสียงแหลม 3นิ้ว diaphragm HF driver in a coaxial configuration, Switchable Active/Passive modes, 140dB peak SPL (Active Mode) ตอบสนองความถี่ 60 Hz – 20 kHz
ราคาพิเศษ….Contact Us…..0863114142
฿156,000.00
Description
NEXO P12 Point-Source Loudspeaker Perfected 12″
ลำโพง NEXO P12 เป็นลำโพงกลางแจ้งแบบไม่มีกำลังขยาย Point-Source รุ่นล่าสุดจาก NEXO (2019) มีขนาดดอกลำโพง LF 12 นิ้ว Neodymium driver เสียงแหลม 3นิ้ว diaphragm HF driver in a coaxial configuration, Switchable Active/Passive modes, 140dB peak SPL (Active Mode) ตอบสนองความถี่ 60 Hz – 20 kHz

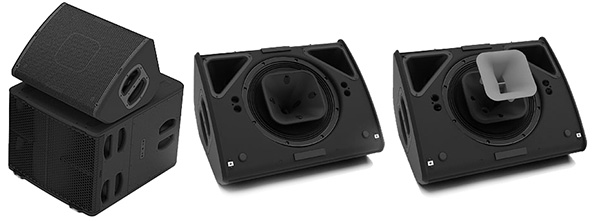

Housed in a curvilinear enclosure of custom birch and poplar plywood, The P12 employs a purpose-designed 12″ LF Neodymium driver and 3″ diaphragm HF driver in a coaxial configuration. The compact cabinet measures just 531mm x 432mm x 317mm, and can be deployed in vertical or horizontal (wedge monitor) configurations, with HF directivity set to match the specific application.
The back plate holds two Speakon® connectors (plus one each on both sides) and a recessed switch to change the cabinet from 2-way passive to 2-way active mode.
Features:
- Compact, low-profile, curvilinear enclosure
- 12” LF Neodymium driver and 3” diaphragm HF driver in a coaxial configuration
- Variable HF directivity
- Switchable Active/Passive modes
- 140dB peak SPL (Active Mode)
- Threaded inserts on the back and on both sides for connection of mounting accessories
- Stand fitting on both sides
- 4x NL4, 4 poles connectors; 2 on the back and 1 on both sides
Specifications
| P12 WITH NEXO PROCESSING | |
| Frequency Response @-6 dB | 60 Hz to 20 kHz |
| Peak SPL@1m | 138 dB Peak (Passive mode) / 140 dB Peak (Active mode) |
| Operating Voltage | 55 Vrms (150 Vpeak) |
| HF Dispersion (according to flanges) | 60°x60° (Default) – 90°x40° (with 90×40 flange) – 60°~100°x40° (with PS flange) |
| Crossover Frequency | 60 Hz, 85 Hz |
| Nominal Impedance | Active mode: (8 ‑ LF + 8 ‑ HF) / Passive mode: 8 ohms |
| PRODUCT FEATURES | |
| Components | 1 x Coaxial Neodymium LF 12” 8 Ohms long excursion & HF 3“ 8 Ohms |
| Number of ways (Touring version) | 2 ways passive (2+/2- P12) or 2 ways active (1+/1- LF, 2+/2- HF) switchable |
| Number of ways (Install version) | 2 ways passive |
| Connectors (Touring version) | 4 x NL4, 4 poles connectors (1 per handle + 2 at the back) |
| Connectors (Install version) | 1 x Cable gland with 2 cores cable |
| Rigging points | 1 x universal accessory fit on each side + 1 x on the bottom |
| Material | Custom made bent plywood of baltic birch and poplar |
| Finish | Black or White structural paint |
| Front Finish (Touring version) | Steel front grille + back mesh |
| Front Finish (Install version) | Acoustic fabric fitted front gril |
| Height x Width x Depth | 534mm x 432mm x 314 mm (21.0” x 17.0” x 12.3”) |
| Weight: Net | 20 kg (44 lbs) |
| Operating temperature range | 0°C – 40 °C (32° F – 104° F) |
| Storage temperature range | -20 °C – 60 °C (-4 ° F – 140° F) |
| SYSTEM OPERATION | |
| Recommended powering solution | NXAMP4x2mk2 Powered TDcontroller: up to 2 x P12 per channel |
| Optional powering solution | NXAMP4x1mk2 Powered TDcontroller (Bridged): up to 2 x P12 per channel |
| NXAMP4x4 Powered TDcontroller: up to 4 x P12 per channel |
