ตู้ลำโพง NEXO ePS8 Passive Point Source Loudspeaker 8″
ลำโพงแบบไม่มีกำลังขยายในตัว Point Source สำหรับงานติดตั้ง NEXO EPS8 เป็นลำโพงแบบ 2 way Passive ขนาดดอกลำโพง 8 นิ้ว 8 Ohms LF driver long excursion driver เสียงแหลม 1.4 นิ้ว HF driver on an Asymmetrical Dispersion, Nominal Impedance 8 Ω, Recommended Power 350 to 570 Watts / 8 Ohms
ราคาพิเศษ….Contact Us…..0863114142
฿57,600.00
Description
NEXO ePS8 2 Way Passive Point Source Loudspeaker 8″
ลำโพงแบบไม่มีกำลังขยายในตัว Point Source สำหรับงานติดตั้ง NEXO EPS8 เป็นลำโพงแบบ 2 way Passive ขนาดดอกลำโพง 8 นิ้ว 8 Ohms LF driver long excursion driver เสียงแหลม 1.4 นิ้ว HF driver on an Asymmetrical Dispersion, Nominal Impedance 8 Ω, Recommended Power 350 to 570 Watts / 8 Ohms

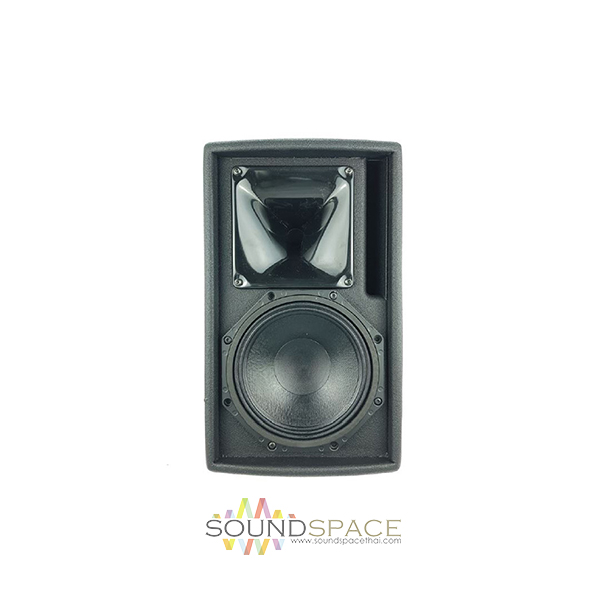

Measuring 423mm high x 250mm wide x 227mm deep and weighing 8.1Kg, the ePS8 combines a high excursion 8-inch LF driver with a 1.4-inch voice coil HF driver in a trapezoidal cabinet constructed in a bass-reflex design from 15mm baltic birch plywood.

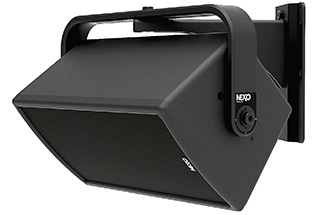

Achieving a peak SPL of 128dB with a frequency range of 80Hz to 20kHz, the ePS8 features a rotatable asymmetric horn, convenient rigging points on the cabinet top, bottom and back, and two pairs of In/Out connectors on pitch screw terminal blocks with an IP cover.
Features:
- High power (128 dB peak) point source loudspeaker for fixed installation
- Lightweight (8.1kg / 17.9lbs) design
- Robust 15 mm Birch plywood enclosure
- NEXO’s Asymmetrical Dispersion Constant Directivity horn design (”PS” Horn), rotatable
- IP54 protection level
- Comprehensive range of accessories for deploying in a wide variety of fixed installation applications
- Black finish with custom RAL colours available
Specifications
| Frequency Response @-6 dB | 80 Hz to 20 kHz |
| Sensitivity 1W@1m | 100 dB SPL Nominal |
| Peak SPL@1m | 128 dB |
| Vertical Dispersion | +25°/-30° |
| Horizontal Dispersion | 50° to 100° Asymmetrical |
| Crossover Frequency | 80 Hz, 120 Hz |
| Nominal Impedance | 8 Ω |
| Recommended Power | 350 to 570 Watts / 8 Ohms |
Product Features
| Number of ways | 2 ways passive |
| LF Component | 8″ 8 Ohms long excursion neodymium driver |
| HF Component | 1.4″ diaphragm 8 Ohms HF driver on an Asymmetrical Dispersion (“PS”) horn |
| Connectors | 2 pairs (In/Out) of 7.62 mm pitch screw terminal blocks (+/- poles) |
| Compatible cables section | Cables from 0.75 mm² to 3.3 mm² (AWG 18 to 12) copper section |
| Compatible cables outside diameter | Cable with maximum outside diameter of 9 mm |
| Rigging points | 3x M6 – 70 mm pitch rigging points (back) + 2x extra M6 and 1x M10 (top/bot) |
| Material | 15 mm thick birch plywood body and galvanized grille |
| Finish | Black structural paint (RAL9005 or Custom RAL upon request) |
| Front Finish | UV & Fire resistant acoustic fabric |
| Height x Width x Depth | 423mm x 250mm x 227mm (16.7″ x 9.8″ x 8.9″) |
| Weight: Net | 8.1 kg (17.9 lbs) |
| Operating temperature range | 0°C – 40 °C (32° F – 104° F) |
| Storage temperature range | -20 °C – 60 °C (-4 ° F – 140° F) |
| IP Rating | IP54 |
| System Operation | |
| Recommended powering solution | NXAMP4x1mk2 Powered TDcontroller: Up to 3 x ePS8 per channel |
| Optional powering solution | DTDcontroller + DTDAMP4x0.7 : Up to 2 x ePS8 per channel |
| DTDcontroller + DTDAMP4x1.3 : Up to 2 x ePS8 per channel | |
| NXAMP4x2mk2 Powered TDcontroller: Up to 4 x ePS8 per channel | |
| NXAMP4x4mk2 Powered TDcontroller: Up to 4 x ePS8 per channel |
Downloads
ดาวน์โหลด Data Sheet NEXO EPS8
