ลำโพงซับวูฟเฟอร์สำหรับงานบันทึกเสียง NEUMANN KH870 เป็นตู้ลำโพงซับแบบ Active ขนาดดอกลำโพง 10 นิ้ว 2 ดอก Front-Firing Driver, 7.1 Channel HD Bass Management, 4-Mode LFE Processing, 4th Order Crossover, มีกำลังขับ 320 วัตต์ RMS 400 วัตต์ Peak, ตอบสนองความถี่ 18 Hz to 300 Hz ± 3 dB
ไม่รวมภาษีมูลค่าเพิ่ม…..
฿405,000.00 ฿263,250.00
ลำโพงซับวูฟเฟอร์สำหรับงานบันทึกเสียง NEUMANN KH870 เป็นตู้ลำโพงซับแบบ Active ขนาดดอกลำโพง 10 นิ้ว 2 ดอก Front-Firing Driver, 7.1 Channel HD Bass Management, 4-Mode LFE Processing, 4th Order Crossover, มีกำลังขับ 320 วัตต์ RMS 400 วัตต์ Peak, ตอบสนองความถี่ 18 Hz to 300 Hz ± 3 dB
The KH 870 Dual 10″ Active Studio Subwoofer from Neumann is a professional-grade subwoofer, ideal for tracking, mixing, and mastering applications in music, broadcast, and post production facilities. The sub has a 7.1 HD Bass Manager that is compatible with all standard consumer formats from mono all the way up to more recent 7.1 high-def systems. The subwoofer supports 8 channels of analog audio via XLR connectors for wide compatibility and flexibility in modern studios. You can also add an optional 24-bit/192kHz digital input card to add support for 8 digital channels.

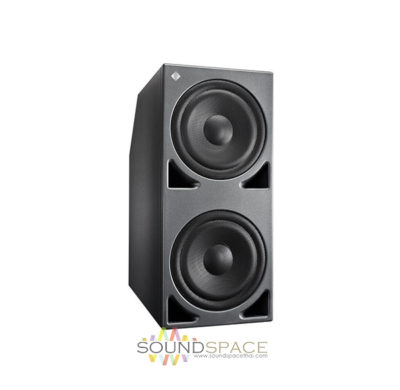

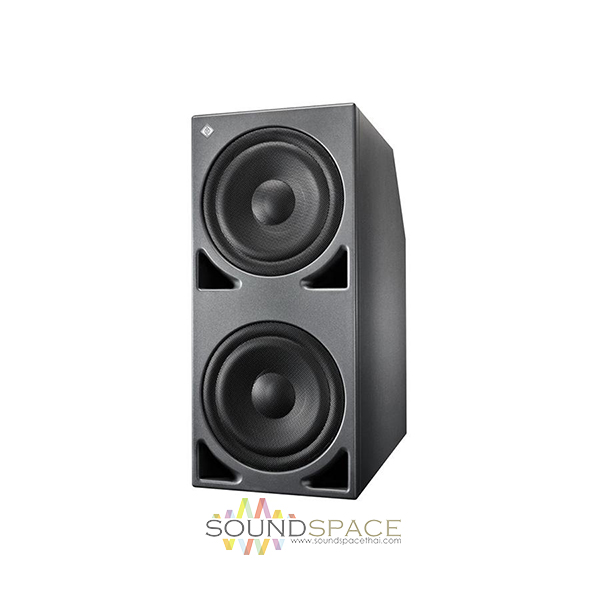

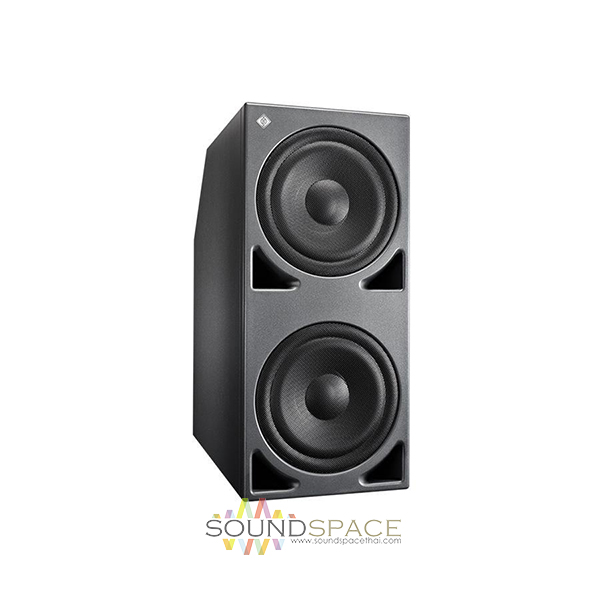

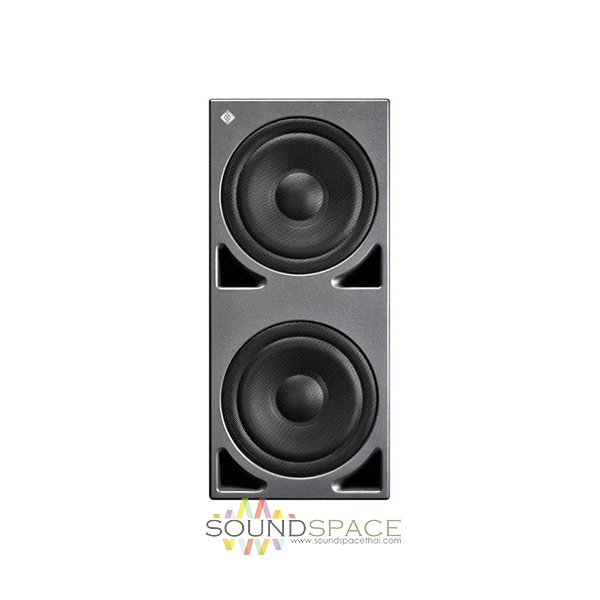

The sub has a sturdy cabinet with a pair of 10″ front-firing woofers. Front-panel bass ports extend low frequency response while reducing compression and turbulence. Because the ports are on the front, you can also position the sub next to a wall or flush mounted into a wall without reducing performance. The sub can be used on its own, daisy-chained with other subwoofers to make a larger system, or used with Neumann full-range monitors for a full multichannel system.
The subwoofer has an integrated 8-channel system volume control and has an RS-232 port for use with an optional remote control. The electronics can be remotely turned on with 2 modes of operation. Using a remote allows centralized system control regardless of the source, and the electronics can be remotely located to reduce cabling. Other features include a bypassable 4th order 80Hz active crossover and 4-mode LFE processing, as well as an electronic limiter to protect the sub’s amplifiers and drivers.
Monitor Type | Active Subwoofer |
Enclosure | Bass-Reflex, Shielded |
Power Rating | 320 W RMS 400 W Peak |
Drivers | LF Driver: 2 x 10″ / 265 mm Woofer |
Frequency Range | 18 Hz to 300 Hz ± 3 dB (at -3 dB) |
Frequency Response | 19 Hz to 300 Hz ± 2 dB |
Maximum Sound Pressure Level (SPL) | 116.7 dB |
Dynamic Range | 110 dBA |
Total Harmonic Distortion (THD) | 0.001% |
Maximum Input Level | +19 dBu |
Analog Input Sensitivity/Gain | +6 / -8 dBu (Fixed) |
Self-Generated Noise | Less Than 20 dBA (at 3.93″ / 10 cm) |
Protections and Limiting | Peak Limiter and Thermal Limiting |
CMRR | 60 dB |
EQ | 1 x LF Shelf: -12 to 0 dB at 30 Hz |
Filters | High-Pass at 6.5 Hz, 12 dB/Octave Slope |
Crossover Frequency | 80 Hz, 24 dB/Octave Slope |

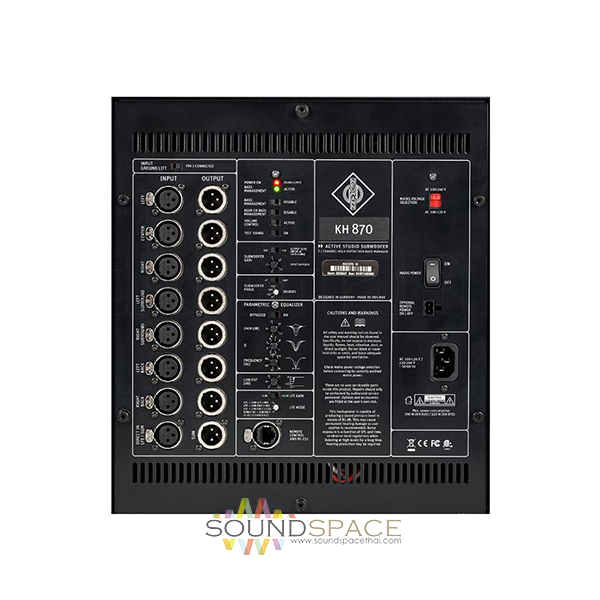

I/O | 1 x 3-Pin XLR Analog Input (13 kOhms) |
AC Input Power | 100 to 120 VAC at 60 Hz 220 to 240 VAC at 50 Hz |
Power Consumption | 25 W (Idle) 550 W (Maximum) |
