ลำโพงซับวูฟเฟอร์แบบมีกำลังขยายในตัว KH810 G เป็นตู้ลำโพงซับแบบ Active ขนาดดอกลำโพง 10 นิ้ว Front-Firing Driver, 7.1 Channel HD Bass Management, 4-Mode LFE Processing, 4th Order Crossover, มีกำลังขับ 160 วัตต์ RMS 200 วัตต์ Peak, ตอบสนองความถี่ 18 Hz to 300 Hz ± 3 dB

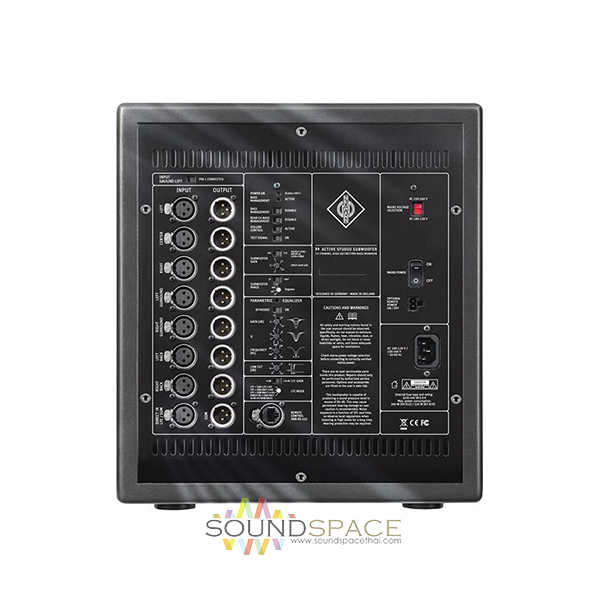

KH 810 10″ Active Studio Subwoofer from Neumann is a professional-grade subwoofer, ideal for tracking, mixing, and mastering applications in music, broadcast, and post production facilities. The sub has a 7.1 HD Bass Manager that is compatible with all standard consumer formats from mono all the way up to more recent 7.1 high-def systems. The subwoofer supports 8 channels of analog audio via XLR connectors for wide compatibility and flexibility in modern studios.

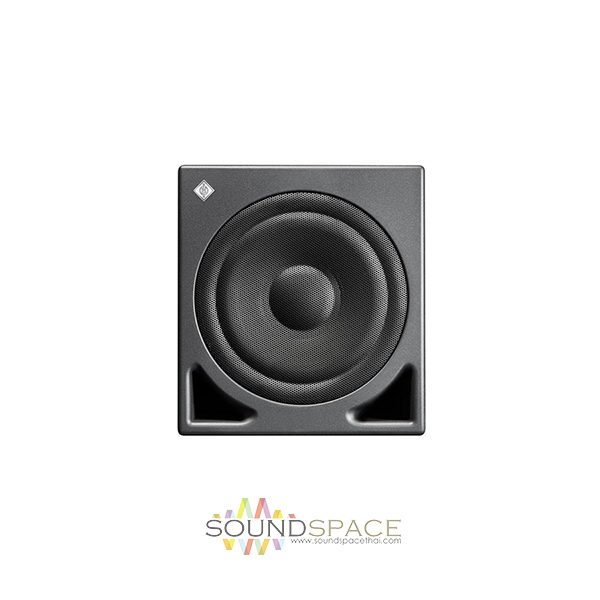

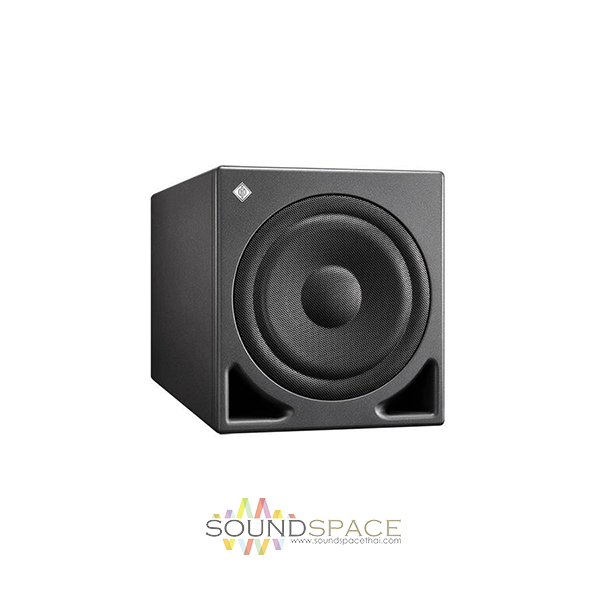

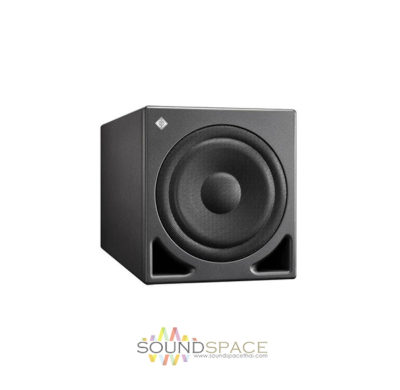

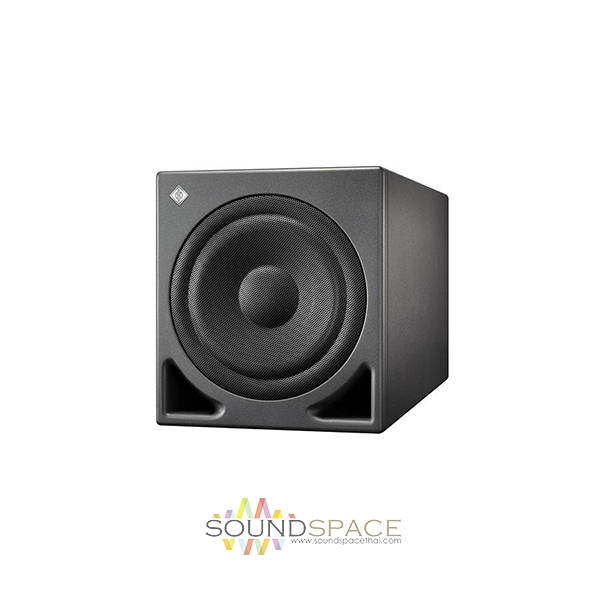

The sub has a sturdy cabinet with a 10″ front-firing woofer. Front-panel bass ports extend low frequency response while reducing compression and turbulence. Because the ports are on the front, you can also position the sub next to a wall or flush mounted into a wall without reducing performance. The sub can be used on its own, daisy-chained with other subwoofers to make a larger system, or used with Neumann full-range monitors for a full multichannel system.
The subwoofer has an integrated 8-channel system volume control and has an RS-232 port for use with an optional remote control. The electronics can be remotely turned on with 2 modes of operation. Using a remote allows centralized system control regardless of the source, and the electronics can be remotely located to reduce cabling. Other features include a bypassable 4th order 80Hz active crossover and 4-mode LFE processing, as well as an electronic limiter to protect the sub’s amplifier and driver.
Bass extension for loudspeakers down to 18 Hz
Increasing the maximum SPL of loudspeakers by up to 8 dB
Decreasing harmonic and intermodulation distortion of loudspeakers
Reproducing the LFE channel
Reproducing the “Sub” signal of a bass managed multichannel source
Making a Plane Wave Bass Array™ system
Working as an extension for KH line subwoofer systems
