ลำโพงห้องอัด NEUMANN KH420 3-Way Active Studio Monitor 10″

ลำโพงห้องบันทึกเสียงแบบมีกำลังขยายในตัว Neumann KH 420 เป็นตู้ลำโพงแบบ 3-Way Active ขนาดดอกลำโพง 10 นิ้ว Long Throw Woofer เสียงกลาง 3 นิ้ว Fabric Dome Midrange เสียงแหลม 1นิ้ว Alloy Fabric Dome Tweeter, มีกำลังขับ 295/130/130W Class AB Amplifiers, ตอบสนองความถี่ 28 Hz to 20 kHz ± 2 dB

ราคาสินค้าเป็นราคาต่อใบ…และไม่รวมภาษีมูลค่าเพิ่ม

฿296,000.00 ฿192,000.00

สอบถามและสั่งซื้อสินค้า

Description

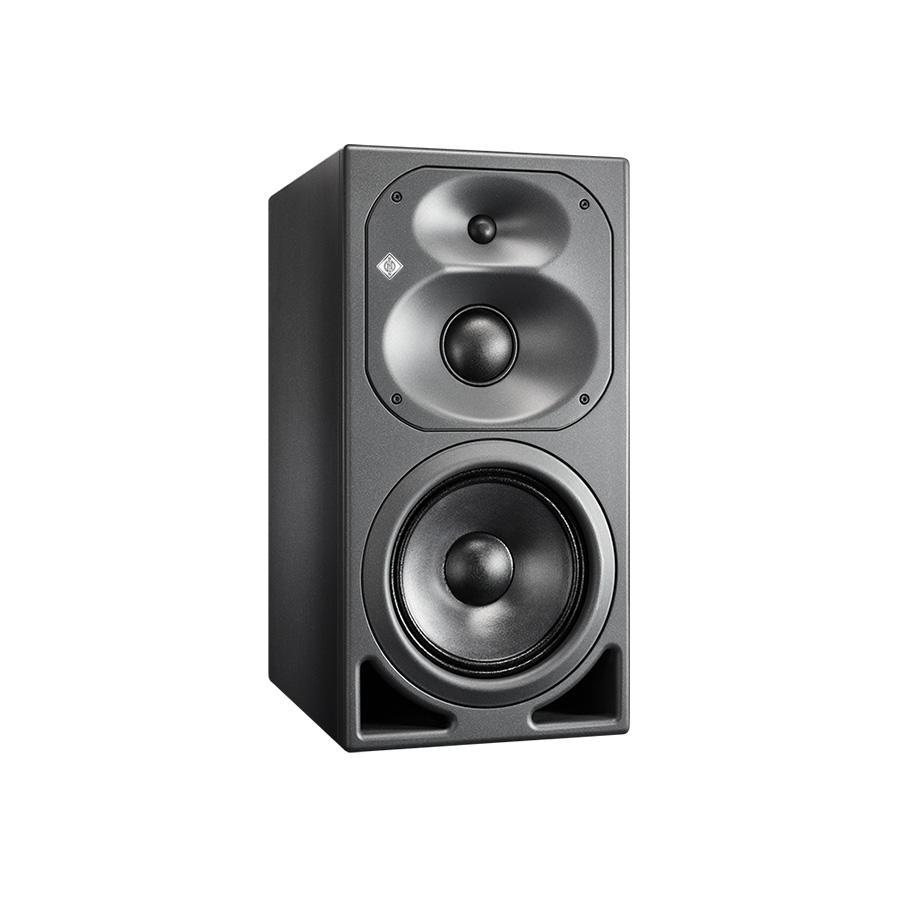

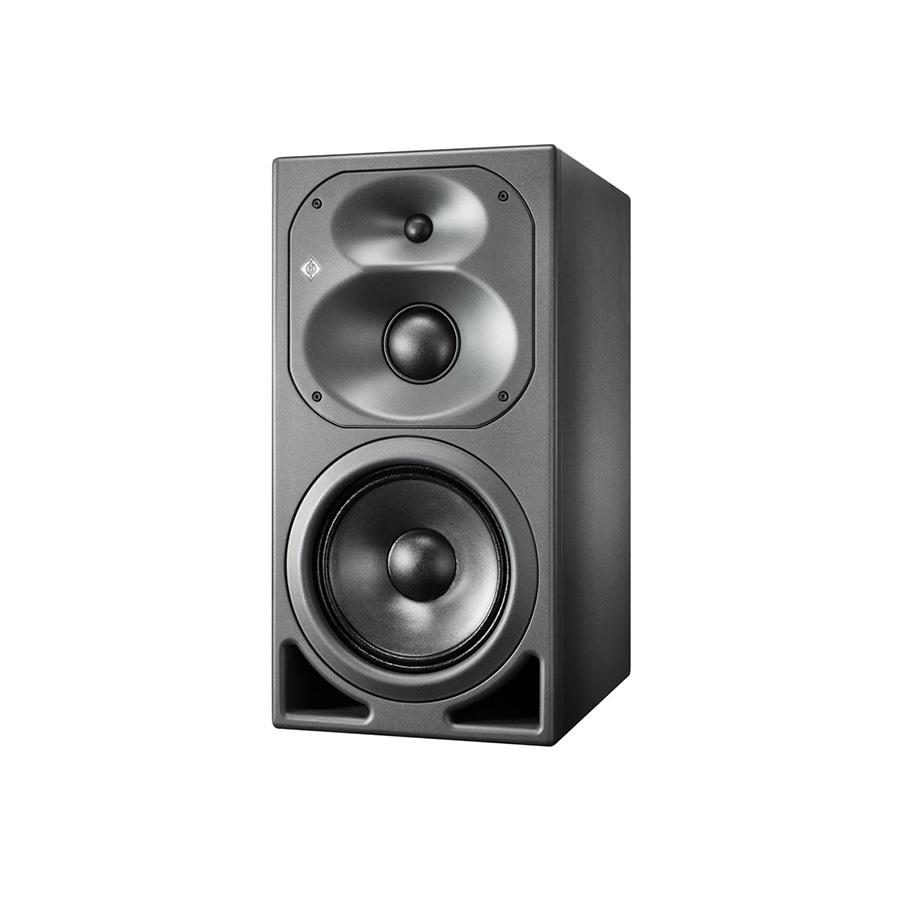

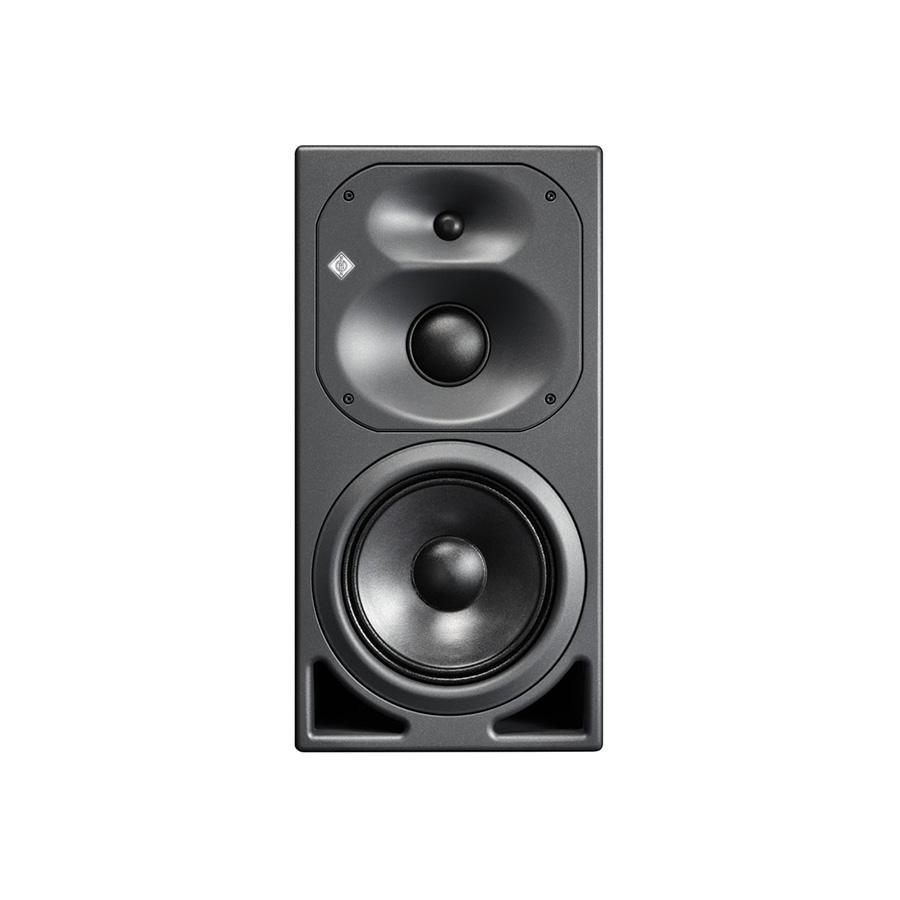

NEUMANN KH420 3-Way Active Studio Monitor 10″

ลำโพงห้องบันทึกเสียงแบบมีกำลังขยายในตัว Neumann KH 420 เป็นตู้ลำโพงแบบ 3-Way Active ขนาดดอกลำโพง 10 นิ้ว Long Throw Woofer เสียงกลาง 3 นิ้ว Fabric Dome Midrange เสียงแหลม 1นิ้ว Alloy Fabric Dome Tweeter, มีกำลังขับ 295/130/130W Class AB Amplifiers, ตอบสนองความถี่ 28 Hz to 20 kHz ± 2 dB

The KH 420 from Neumann is a three-way active monitor designed for use as a mid-field or main monitor, and can be used free-standing or flush mounted into a wall. It is particularly well-suited for use in music, broadcast, and post production studios for tracking, mixing and mastering, and in multi-channel systems can be mixed freely with other loudspeakers in the range.

In-house computer optimized drivers, a waveguide featuring Mathematically Modeled Dispersion (MMD), flexible acoustical controls, various input options and an extensive mounting hardware range allow the KH 420 to be used in diverse acoustical conditions, with any source equipment, and in a wide variety of physical locations.

Features:

  • Computer mechanically modeled three-way cabinet design using Low Resonance Integral Molding (LRIM) materials
  • In-house simulated magnetically shielded drivers
  • Alloy fabric dome tweeter with built-in grille
  • Fabric dome, neodymium magnet, midrange driver
  • Long throw bass driver with Extremely Linear Force Factor (ELFF) and flow optimized die cast basket
  • High-capacity flow-optimized bass reflex ports with pipe damped
  • Elliptical Mathematically Modeled Dispersion (MMD) waveguide, with wide horizontal and narrow vertical dispersion
  • Electronics panel with dimensioned integrated Accelerated Heat Tunneling (AHT) heat sink
  • Analog class AB amplifiers with large headroom and overheat limiting
  • Fast-acting independent thermo limiters for woofer, midrange dome and tweeter to protect the voice coils
  • Woofer soft clip and excursion limiters
  • Four-position bass, low-mid and treble acoustical controls and easy to use parametric equalizer
  • Wide range input gain and output level controls, Ground lift
  • Individual hand-alignment in final test

Specifications

Studio Monitor
Monitor Type Active 3-Way
Enclosure Bass-Reflex, Shielded
Drivers HF Driver: 1 x 1″ / 25 mm Tweeter
MF Driver: 1 x 3″ / 76 mm Cone
LF Driver: 1 x 10″ / 265 mm Woofer
Amplification HF Amplifier: Class-AB Rated at 130 W / 140 W Peak
MF Amplifier: Class-AB Rated at 130 W / 140 W Peak
LF Amplifier: Class-AB Rated at 295 W / 330 W Peak
Performance
Frequency Range 26 Hz to 22 kHz  ± 3 dB
Frequency Response 28 Hz to 20 kHz ± 2 dB
Maximum Sound Pressure Level (SPL) 122.4 dB
Total Harmonic Distortion (THD) 0.5%
Analog Input Sensitivity/Gain +4  to -12 dB (Continuously Variable)
Self-Generated Noise Less Than 20 dBA (at 3.93″ / 10 cm)
Protections and Limiting Excursion Limiter, Peak Limiter, and Thermal Limiting
Signal Processing
EQ 1 x LF Shelf: -7.5 to 0 dB (2.5 dB Increments)
1 x Mid Notch/Peak: -4.5 to 0 dB (1.5 dB Increments)
1 x HF Shelf: -2 to +1 dB (1 dB Increments)
Parametric EQ -12 to +4 dB Between 25Hz and 80Hz, Q: 1 to 8
-12 to +4 dB Between 50Hz and 160Hz, Q: 1 to 8
-12 to +4 dB Between 100Hz and 320Hz, Q: 1 to 8
Crossover
Crossover Frequency Low-Pass Frequency: 570 Hz, 24 dB/Octave Slope
High-Pass Frequency: 2 kHz, 24 dB/Octave Slope
Connectivity
I/O 1 x 3-Pin XLR Balanced Analog Input
Power
AC Input Power 100 to 240 VAC at 50/60 Hz
Power Consumption 60 W (Standby)
800 W (Maximum)
Environmental
Operating Temperature 50 to 104°F / 10 to 40°C
Operating Humidity 90%
Storage Temperature -13 to 158°F / -25 to 70°C
General
Enclosure Material Aluminum, Metal Grille, Wood
Mounting Points 8 x M5 (Rear Panel)
Dimensions (W x H x D) 13 x 25.4 x 17.5″ / 330 x 645 x 444 mm
Weight 77.2 lb / 35.0 kg
