ดิจิตอลมิกเซอร์ MIDAS PRO9 CC-IP Install Package

เครื่องผสมสัญญาณเสียงแบบดิจิตอล Midas Pro9 CC-IP สำหรับงานติดตั้ง (Install Package) Live Digital Console Control Centre with 88 Input Channels, 35 Mix Buses and 96 kHz Sample Rate


฿1,124,000.00 ฿899,200.00

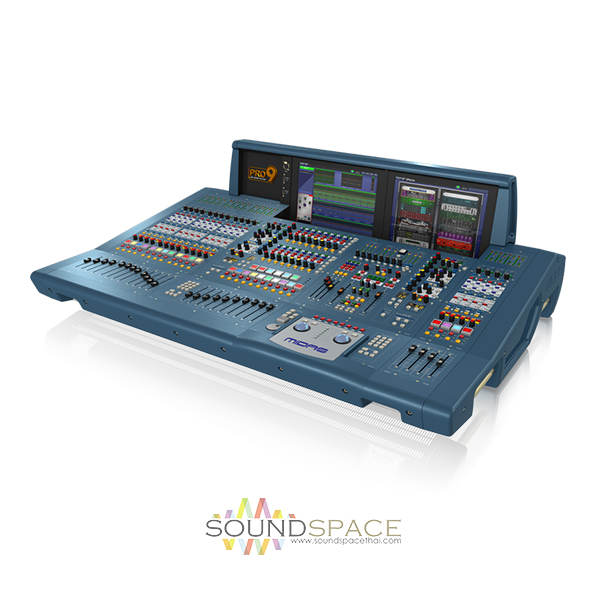

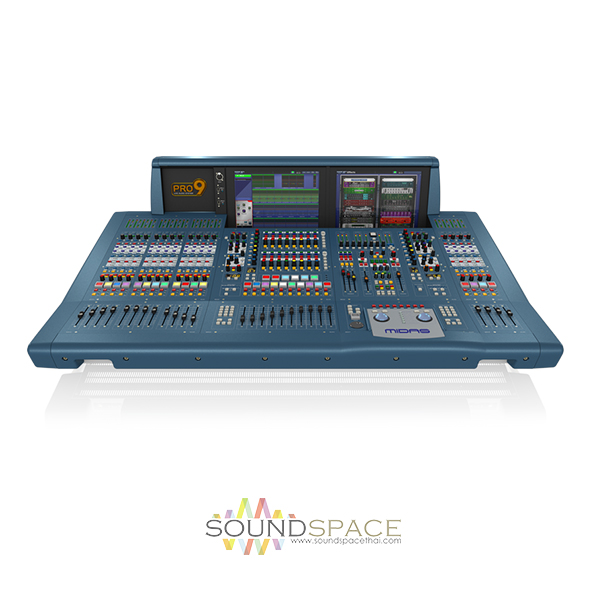

Midas Pro9 CC-IP Digital Audio Mixing System (Install Package)

เครื่องผสมสัญญาณเสียงแบบดิจิตอล Midas Pro9 CC-IP สำหรับงานติดตั้ง (Install Package) Live Digital Console Control Centre with 88 Input Channels, 35 Mix Buses and 96 kHz Sample Rate

The MIDAS PRO Series has become established as the industry standard on live concert tours and the road-proven PRO9 featuring 88 simultaneous input channels and 35 time-aligned and phase-coherent mix buses, shares the familiarity of a common user interface and workflow with PRO3 and PRO6. Like all PRO Series consoles, the PRO9 features managed latency and 40 bit floating point processing precision. PRO9 sets the standard of performance in high-profile live sound applications and is a truly impressive digital control surface for the engineer whose very livelihood depends on both unparalleled functionality and reliability.

HyperMAC and AES50 audio networking technologies allow the PRO9 to dynamically assign up to 288 inputs and 294 outputs at 96 kHz sampling rate to any of its input channels and bus outputs on a scene-by-scene basis. This high level of connectivity, coupled with the large channel and bus counts, makes the PRO9 equally at home in theatres and symphony halls as it is in live concert touring, outside broadcast and music festivals.



  • Live performance digital console control centre with up to 88 simultaneous input channels
  • 35 time-aligned and phase-coherent mix buses
  • HyperMAC and AES50 networking allows up to 288 inputs and 294 outputs @ 96 kHz Sample Rate
  • HyperMAC router with 192 bidirectional channels over copper and optical fibre
  • Provides dual redundant snake connection to DL371PRO9 Audio System Engine
  • Snake connections up to 500 m with optical fibre or 100 m with CAT5/5e cable
  • 10 VCA (variable control association) and 6 POPulation groups
  • Up to 36 assignable 1/3 octave KLARK TEKNIK DN370 graphic equalisers
  • Up to 8 multi-channel digital signal processing effects engines
  • 29 MIDAS PRO motorised 100 mm faders
  • 2 daylight viewable 15” full colour TFT display screens
  • Fully interpolated touch sensitive controls
  • Optional wireless remote control with MIDAS MIXTENDER App for iPad*
  • Three bay auto-ranging universal switch-mode power supply with N+1 redundancy
  • 3-Year Warranty Program*
  • Designed and engineered in the U.K.


I/O Maximum Input Capacity: 288
Maximum Output Capacity: 294
Primary Inputs: 80
Return Inputs: 8
Maximum simultaneous mix channels: 104
Number of groups/auxes: 16
Number of matrices: 16
Groups that provide mixes in monitor mode: 32
Mix buses: 35
VCAs: 10
POPulation groups: 6
Effects devices: 8
Maximum Klark Teknik Teknik DN370: 36
Configurable ‘area B’: yes
Expandability Digital snake: dual redundant HyperMac (192 x 192) Cat 53 digital snake included
Fiber-optic connections for optional maximum 500 m snake Additional I/O options:
DL251 Audio System I/O
DL351 Modular I/O
DL431 Mic Splitter
DL451 Modular I/OI/O Card Options
DL441 analog input (mic module)
DL442 analog output module
DL443 analog jack I/O module
DL444 8 analog mic in and 8 analog line out module
DL452 AES/EBU input and output module
Option of 150 m fiber optic cable
Processor 32-bit
Reverb Hall, Plate, Chamber and Room, with five variations of each
Effects Live, Non-Linear, Reverse, Delay, ADT, Multitap Echo, Sound-On-Sound and Infinite Room
Parameters Pre-delay: 0 to 990 ms
Pattern (density) Adjustable 0 to 9 increments (Grainy to Dense)
Level (depth) Adjustable 0 to 9 increments (Distant to Close)
Decay time 0.1 to 18 seconds
Room size 8 to 90 meters linear dimension
LF decay Adjustable ±7 increments ref. 1 kHz decay time
HF decay Adjustable ±7 increments ref. 1 kHz decay time
Controls Input mute: Removes audio feed from reverberation section. Reverb mute: Clears unwanted reverberant signal.
Input level control: From 6dB gain to infinite attenuation.
Headroom indicator: 10-point LED display, 0 dB to -27 dB.
Display” Simultaneous display of all parameter information. Parameter selection and store functions are verified by individual LEDs
Sampling Frequency 96 kHz
Latency Delay <2 ms input to master (no compensation)
Dynamic Range 110 dB, 22 to 22,000 Hz (no pre-emphasis)
Maximum Voltage Gain 80 dB inputs to subgroups and masters
86 dB inputs to aux and matrix
Maximum Voltage Gain 80 dB inputs to subgroups and masters
86 dB inputs to aux and matrix
Crosstalk At 1 kHz: -100 dB physically adjacent input channels ,b>At 10 kHz: -100 dB physically adjacent input channels
Cut and Mix Transitions Fader/pan cut off at 1 kHz: -100 dB
Fader/pan cut off at 10 kHz: -100 dB
Display Screen 2x 15″ daylight-viewable color screens
LCD 33x RGB color
Faders 29x touch-sensitive faders with 1024 steps of resolution
Encoders 102x touch-sensitive with 512 steps
Power Requirements 100 to 240 VAC, 50 to 60 Hz
Operating Temperature 41 to 104°F (+5 to 40° C)
Storage Temperature -4 to 140° (-20 to 60°C)
Dimensions Control Center: 51.18 x 39.37 x 15.75″ (1300 x 1000 x 400 mm)

Accessories (sold separately)
DL251 I/O Box (5U): 19.0 x 17.5 x 16.1″ (48.3 x 44.5 x 41.0 mm)
DL351 I/O Box (7U): 19.0 x 24.5 x 16.1″ (48.3 x 62.2 x 41.0 mm)
DL371 I/O Box (7U): 19.0 x 24.5 x 16.1″ (48.3 x 62.2 x 41.0 mm)
DL451 I/O Box (3U): 19.0 x 10.5 x 16.1″ (48.3 x 26.7 x 41.0 mm)

Weight Control center: 265 lb (120 kg)

Accessories (sold separately)
DL351: 110 lb (50 kg)
DL371: 66 lb (30 kg)
DL451: 29 lb (13 kg)

Packaging Info
Package Weight 538.0 lb
