฿1,855,000.00Original price was: ฿1,855,000.00.฿1,484,000.00Current price is: ฿1,484,000.00.
ชุดอัฟเกรดสำหรับดิจิตอลมิกเซอร์ MIDAS PRO3, PRO6 and PRO9 เพื่ออัพเกรดขึ้นเป็นระบบ PRO X Digital console, Includes NEUTRON High Performance Audio System Engine

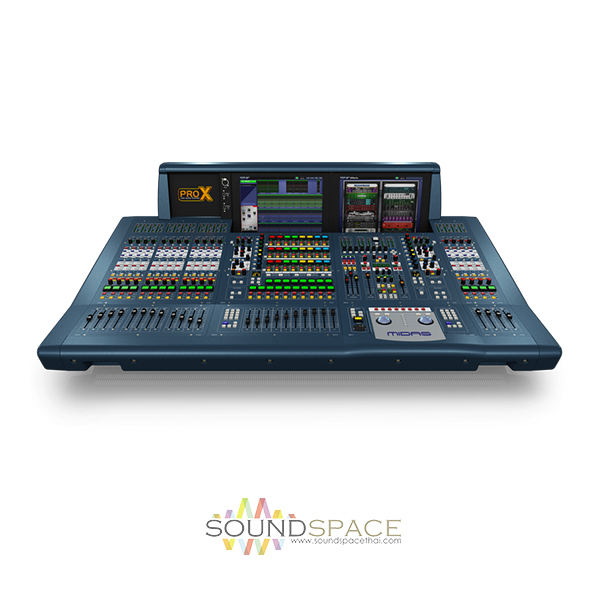

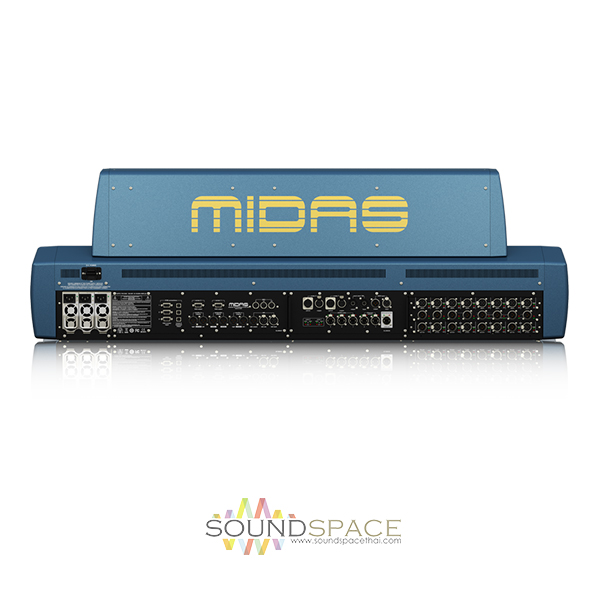

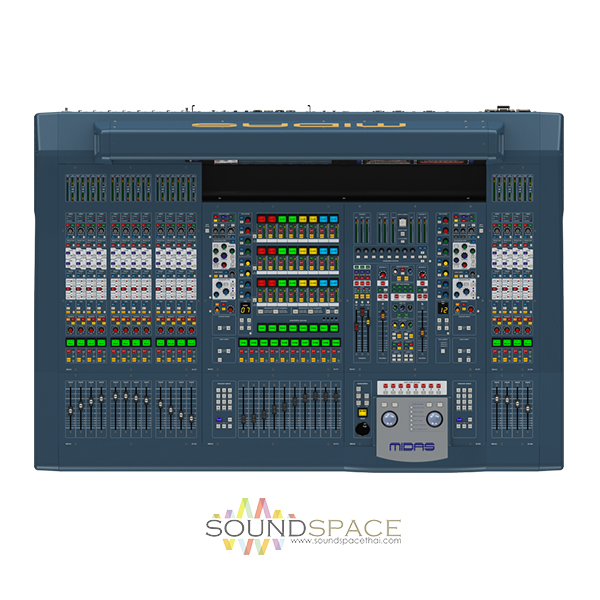

Midas PRO X Upgrade Kit Digital Console Control Surface Upgrade Kit
ชุดอัฟเกรดสำหรับดิจิตอลมิกเซอร์ MIDAS PRO3, PRO6 and PRO9 เพื่ออัพเกรดขึ้นเป็นระบบ PRO X Digital console, Includes NEUTRON High Performance Audio System Engine
The MIDAS PRO Series family moves up a gear with the PRO X control centre and the industry-changing NEUTRON Audio System Engine. Featuring 168 simultaneous input channels and 99 time-aligned and phase-coherent mix buses, the PRO X sets a new performance benchmark in high-profile live sound applications and is a truly impressive digital control surface for the engineer whose very livelihood depends on both unparalleled functionality and reliability. Like all PRO Series consoles, the PRO X features managed latency and 40 bit floating point processing precision.
The MIDAS PRO X UPGRADE KIT uniquely allows owners of PRO3, PRO6 and PRO9 digital console systems to fully upgrade to a MIDAS PRO X system and includes the NEUTRON high performance audio system engine. This upgrade path allows owners to protect the value of their investment in MIDAS PRO Series and bring their existing consoles up to the state-of-the-art in digital mixing console technology.
PRO X upgrades are only performed by authorised MIDAS service centres, please contact your local MIDAS distributor for more information.
Features:
MIDAS PRO X digital console Control Surface upgrade kit
Upgrades PRO3, PRO6 and PRO9 Control Surfaces to PRO X
Includes NEUTRON High Performance Audio System Engine
1 DL511 Centre Section PCB Assembly
1 DL5101 Scan Processor PCB Assembly
2 DL5104 Advantech* motherboards
Complete set of fascia panels
Illuminated PRO X logo
Internal cables
Switch caps
3-Year Warranty Program*
Designed and engineered in England
Specifications
System Specifications
Sampling rate
96 kHz
Latency delay
<2 ms (Input to Master output with no latency compensation)
Dynamic range
110 dB, 22 Hz to 22 kHz
Maximum voltage gain
80 dB, Inputs to Subgroups and Masters 86 dB, Inputs to Aux and Matrix
Crosstalk
-100 dB physically adjacent input channels
Fader/pan cut off
-100 dB
Frequency Response
0 dB to -1.0 dB
20 Hz to 20 kHz
Gain Error @ 1 kHz
±1.0 dB
Input CMRR
0 dB gain
-80 dB
+40 dB gain
-90 dB
Distortion @ 0 dBu
0 dB gain
0.01%
+40 dB gain
0.03%
Distortion @ +20 dBu
0 dB gain
0.03%
+40 dB gain
0.03%
Noise Floor
0 dB gain
-89 dBu, 22 Hz to 22 kHz (unweighted)
+40 dB gain
-87 dBu, 22 Hz to 22 kHz (unweighted)
Equivalent Input Noise (EIN)
0 dB gain
-89 dBu, 22 Hz to 22 kHz (unweighted)
+40 dB gain
-127 dBu, 22 Hz to 22 kHz (unweighted)
Dynamic Range
0 dB gain
110 dB, 22 Hz to 22 kHz (unweighted)
+40 dB gain
108 dB, 22 Hz to 22 kHz (unweighted)
Analogue Audio System Inputs
Mic/Line Inputs
Quantity
8
Connector
3-pin XLR balanced mic/line input with +48 V phantom power
A/D converter
24 bit, 96 kHz with 128 x oversampling
Gain
-25 dB to +60 dB
Maximum input level
+26 dBu
Input impedance
10 kOhm
Talk Mic Input
Quantity
1
Connector
3-pin XLR balanced mic input with +48 V phantom power
Mic gain
+15 dB to +60 dB
Maximum input level
+6 dBu
Input impedance
600 Ohm
Talk Back Input
Quantity
1
Connector
3-pin XLR balanced line input
Maximum input level
+21 dBu
Input impedance
10 kOhm
Analogue Audio System Outputs
Line Outputs
Quantity
8
Connector
3-pin XLR balanced line output
D/A converter
24 bit, 96 kHz with 128 x oversampling
Maximum signal level
+21 dBu
Monitor Outputs
Quantity
4
Connector
3-pin XLR balanced line output
Maximum signal level
+21 dBu
Assignable Outputs
Quantity
2
Connector
3-pin XLR balanced line output
Maximum signal level
+21 dBu
Talk Output
Quantity
1
Connector
3-pin XLR balanced line output
Maximum signal level
+21 dBu
Headphone Output
Quantity
2
Connector
¼” Jack (stereo)
Maximum signal level
+21 dBu
Digital Audio System Inputs and Outputs
AES3 Inputs
Quantity
4
Format
Conforms to AES3-2009 (2 channels of digital audio)
Connector
3-pin XLR
Sample rate
32 kHz to 96 kHz
Bypass
Sample rate converter bypass
AES3 Outputs
Quantity
4
Format
Conforms to AES3-2009 (2 channels of digital audio)
Connector
3-pin XLR
Sample rate
48 kHz, 96 kHz or auto-tracking to inputs
Bypass
Sample rate converter bypass
Word length
16, 20 or 24 bit
AES50 Audio
Quantity
1
Format
Conforms to AES50-2011 (24 channels of bidirectional digital audio @ 96 kHz)
Connector
Neutrik etherCON with status LEDs
Redundancy
N+1 cable redundancy (X & Y)
Snake (Copper)
Quantity
2
Format
KLARK TEKNIK HyperMAC (192 channels of bidirectional digital audio @ 96 kHz)
Connector
Neutrik etherCON with status LEDs
Redundancy
Dual cable redundancy (X & Y)
Snake (Fibre)
Quantity
2
Format
KLARK TEKNIK HyperMAC (192 channels of bidirectional digital audio @ 96 kHz)
Connector
Neutrik opticalCON DUO
Transmission
1.25 Gb/s 1000 base-SX physical layer on 50/125 multimode fi bre
Redundancy
Dual optical fibre redundancy (X & Y)
Ethernet Control Data
Quantity
2
Connector
Neutrik etherCON with status LEDs
Redundancy
Dual cable redundancy (1 & 2)
Word Clock Input
Quantity
1
Format
TTL level, 96 kHz square wave
Connector
75 Ohm BNC
Word Clock Output
Quantity
1
Format
TTL level, 96 kHz square wave
Connector
75 Ohm BNC
AES3 Sync Input
Quantity
1
Format
Conforms to AES3-2009 (2 channels of digital audio @ 96kHz)
Connector
3-pin XLR
AES3 Sync Output
Quantity
1
Format
Conforms to AES3-2009 (2 channels of digital audio @ 96kHz)
Connector
3-pin XLR
Output
96 kHz Grade II reference clock
Other Interfaces
External Ethernet Tunnel
Quantity
1
Connector
Neutrik etherCON with status LEDs
Screen Outputs
Quantity
2
Connector
Analogue VGA
KVM Inputs
Quantity
3
Connector
Analogue VGA, USB keyboard & mouse
USB Interface
Quantity
2
Format
USB 2.0 full speed (12.0 Mbit/s), 5 V 1 A maximum load
Connector
USB Type A
MIDI Interface
Quantity
3
Format
MIDI IN, MIDI OUT, MIDI THRU
Connector
5-pin DIN
Displays
Quantity
2
Type
15″ daylight-viewable colour TFT LCD screen
Power
Power Supplies
Quantity
3
Format
PRO Series Power Supply Module (MKT-PSU-2)
Connector
IEC mains inlet
Mains Input Voltage
100 to 240 VAC, 50 to 60 Hz
Redundancy
N+1 power supply redundancy
Power Consumption
115 VAC
230 VAC
Physical
Dimensions
1365 mm wide x 940 mm deep x 434 mm high (53.7″ x 37.0″ x 17.1″)
