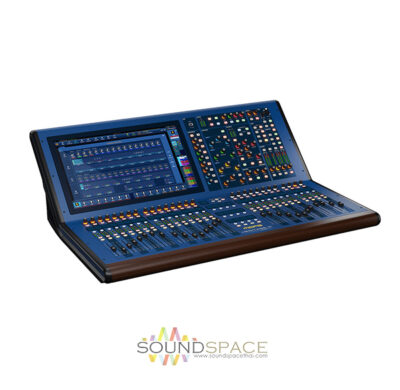

MIDAS Heritage D HD96-24-CC-TP Digital Mixer (Tour Pack)
ดิจิตอลมิกเซอร์ MIDAS Heritage D HD96-24, 144-input 120-Output with 28 Motorized Faders, 96 kHz Sample Rate, 21″ Touch Screen, Digital Effects, ประมวลผลด้วยชิป FPGA 64 บิต, รองรับ Dante, MADI และ USB มาพร้อม Touring Grade Road Case
Heritage D series the Midas HD96-24-CC-TP is a world-class, 144-input digital mixing console. This mixer is jam-packed with features, including eight award-winning Midas preamps, 120 time-aligned, phase-coherent mix buses, 24 VCA groups, and top-tier digital effects.
The HD96-24-CC-TP makes taking command of your mix a piece of a cake, with 28 motorized 100mm faders, interpolated touch-sensitive controls, and a 21-inch display with an advanced multi-gesture touchscreen interface.
This mixer teems with state-of-the-art digital tech, boasting HyperMAC and AES50 networking, dual Ultranet ports, and a dual network bridge format converter.
An integrated wireless transceiver module and dual redundant power supplies rounds out the HD96-24-CC-TP’s impressive feature set.
The Heritage D HD96-24-CC-TP also comes with a tour-grade road case that boasts marine-grade plywood and aluminum construction.
Features:
Live performance digital control centre with up to 144 simultaneous input channels and 96 kHz sample rate
123 time-aligned and phase-coherent mix buses
21″ full colour TFT display screen with capacitive touch sensing
Advanced and multi gesture, touchscreen user interface
Award-winning Midas microphone preamplifiers
HyperMAC and AES50 networking allows up to 480 inputs and 480 outputs @ 96 kHz sample rate
Dual Network Bridge Format Converter with up to 128 Bidirectional Channels and Asynchronous Sample Rate Conversion
24 VCA (variable control association) groups, and 24 POPulation groups
Up to 48 assignable 1/3 octave Klark Teknik DN370 graphic equalisers
Up to 24 multi-channel digital signal processing effects engines
Integrated Bluetooth and wireless transceiver module
Dual ULTRANET Ports providing 32 additional digital outputs
28 MIDAS PRO motorised 100 mm faders
Fully interpolated touch sensitive controls
Optional wireless remote control with remote application
Dual redundant auto-ranging universal switch-mode power supplies
Specifications
Processing
Input processing channels
144 flexi channels
Output processing channels
96 flexi aux outputs, 24 matrices, stereo bus, mono bus
Point-to-point routing matrix
622 x 652
Signal processing
64-bit floating point
D/A converter
24-bit, 96 kHz and 128 times oversampling
A/D converter
24-bit, 96 kHz and 128 times oversampling
Sampling frequency
96 kHz
I/O latency (surface input to output)
1.34 ms
Input audio processing
Dual-slope high and low-pass filters
True phase filter control
4-band parametric EQ with 3 shelf modes
4-mode creative input compressors
Input gates or ducker
Insert point on/off with processing order change
Direct output with adjustable level and processing pick of point
Delay-compensated aux return mode on inputs
5 x tap-off points per send
Output audio processing
Output 4-band parametric EQ with shelving/HP/LP options
4-mode creative output dynamics
Insert point on/off with processing order change
Direct input with adjustable level and processing tap-off point
Mixing control assistance
12 x talk groups|
12 x mute groups
24 x surface POPulation groups
24 x VCA associated population groups
Scene snapshot automation
Connectors
Midas microphone preamplifier
8 x XLR balanced
Balanced outputs
8 x XLR balanced
Talkback connector
1 x XLR balanced
Talk connector
1 x XLR balanced
Headphone connector
2 x 1⁄4″ TRS (stereo)
Digital AES3 input / output (XLR)
2 / 2
AES50 ports (Klark Teknik SuperMAC, 100 Mbit/s)
4
Snake (copper)
2 x HyperMac (192 channels of bi-directional digital audio) on Ethercon XLR
Snake (fibre)
2 x HyperMac (192 channels of bi-directional digital audio) on Opticon XLR
CM1 expansion slots
2 x slots (CM1 module for AES50, DANTE, MADI and USB)
Ultranet
2 x Ultranet ports (up to 16 digital outputs per port)
