มิกเซอร์ดิจิตอล MIDAS HD96-AIR Lightweight Live Digital Console
ดิจิตอลมิกเซอร์ MIDAS HD96-AIR Lightweight Live Digital Console with 144 Input Channels, 96 flexi aux outputs, 24 matrices, stereo bus, mono bus, 64-bit floating point, 96 kHz Sample Rate and 21″ Glare Resistant Ergonomic Touch Screen
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม
฿1,031,000.00 ฿879,000.00
Description

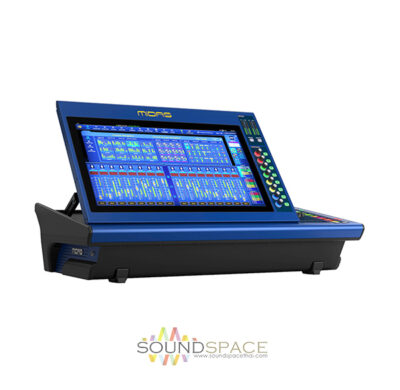

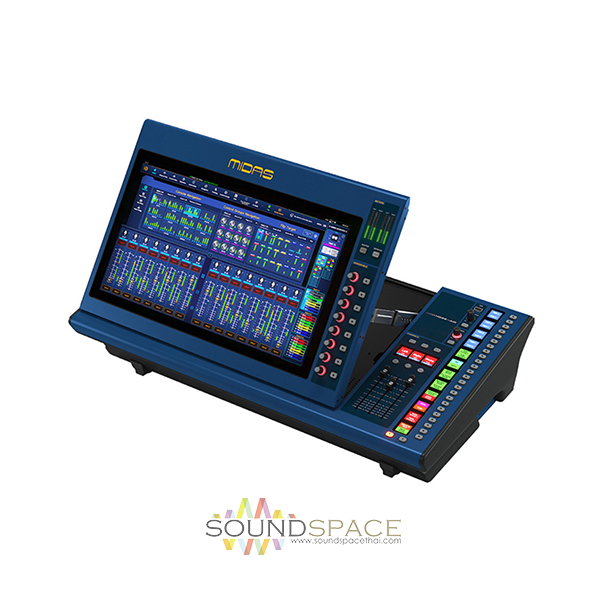

MIDAS HD96-AIR Lightweight Live Digital Console
ดิจิตอลมิกเซอร์ MIDAS HD96-AIR Lightweight Live Digital Console with 144 Input Channels, 96 flexi aux outputs, 24 matrices, stereo bus, mono bus, 64-bit floating point, 96 kHz Sample Rate and 21″ Glare Resistant Ergonomic Touch Screen
The HD96-AIR is the latest and highly anticipated addition to the Heritage-D series. This revolutionary lightweight console is unmatched in its class, offering more power and features than any other console of its size. AIR blends innovative technology, portability, and performance.
It boasts 144 simultaneous input channels, a 96 kHz sample rate, and 123 time-aligned and phase-coherent mix buses, offering sound engineers unparalleled control and precision. Its ergonomic 21-inch full-colour TFT display screen features capacitive touch sensing with an advanced multi-gesture user interface. The unit will also include 8 XLR inputs and outputs with award-winning Midas microphone preamplifiers.
The HD96-AIR will further support HyperMAC and AES50 networking, allowing for up to 480 inputs and 480 outputs at a 96 kHz sample rate, and include a dual network bridge format converter with up to 128 bidirectional channels and asynchronous sample rate conversion.
As per the HD96, AIR will also offer 24 VCA (variable control association) groups, 24 POPulation groups, up to 48 assignable 1/3 octave Klark Teknik DN370 graphic equalisers, and up to 24 multi-channel digital signal processing effects engines.
There will be many more additional features built-in, including fully interpolated touch-sensitive controls and dual redundant auto-ranging universal switch-mode power supplies, however full specs will be provided once testing is completed.
Features:
- Live performance digital console with up to 144 simultaneous input channels and 96 kHz sample rate
- Lightweight console in a flyable package+
- 123 time-aligned and phase-coherent mix buses
- 21″ full colour TFT, high-brightness screen with capacitive touch sensing
- Advanced and multi-gesture, touchscreen user interface
- Award-winning Midas microphone preamplifiers
- Dual HyperMAC and AES50 allows up to 480 inputs and outputs at 96 kHz sample rate
- Dual network bridge format converter with up to 128 Bidirectional Channels and asynchronous sample rate conversion
Specifications
Processing
| Input processing channels |
144 flexi channels |
| Output processing channels |
96 flexi aux outputs, 24 matrices, stereo bus, mono bus |
| Signal processing |
64-bit floating point |
| D/A converter |
24-bit, 96 kHz and 128 times oversampling |
| A/D converter |
24-bit, 96 kHz and 128 times oversampling |
| Sampling frequency |
96 kHz |
| I/O latency (surface input to output) |
1.34 ms |
| Input audio processing | Dual-slope high and low-pass filters True phase filter control 4-band parametric EQ with 3 shelf modes 4-mode creative input compressors Input gates or ducker Insert point on/off with processing order change Direct output with adjustable level and processing pick of point Delay-compensated aux return mode on inputs 5 x tap-off points per send |
| Output audio processing | Output 4-band parametric EQ with shelving/HP/LP options 4-mode creative output dynamics Insert point on/off with processing order change Direct input with adjustable level and processing tap-off point |
| Mixing control assistance | 12 x talk groups 12 x mute groups 24 x surface POPulation groups 24 x VCA associated population groupsฅ Scene snapshot automation |

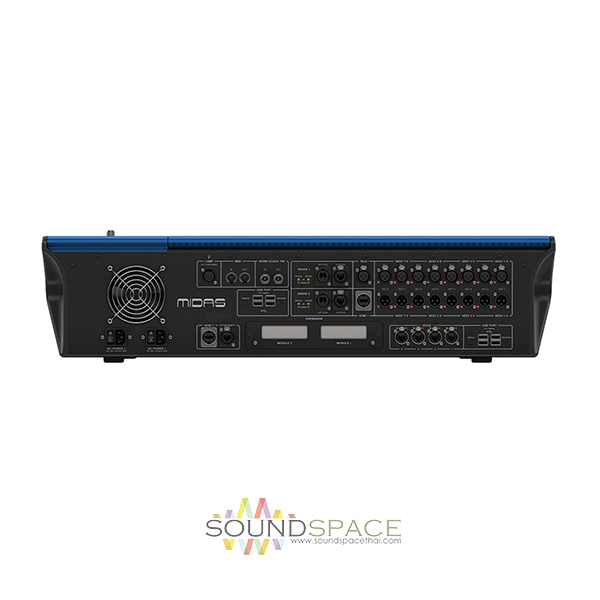

Connectors
| Midas microphone preamplifier |
8 x XLR balanced |
| Balanced outputs |
8 x XLR balanced |
| Talk connector |
1 x XLR balanced |
| Headphone connector |
2 x 1⁄4″ TRS (stereo) |
| AES50 ports (Klark Teknik SuperMAC, 100 Mbit/s) |
4 |
| Snake (copper) |
2 x HyperMac (192 channels of bi-directional digital audio) on Ethercon XLR |
| Snake (fibre) |
2 x HyperMac (192 channels of bi-directional digital audio) on Opticon XLR |
| CM1 expansion slots |
2 x slots (CM1 module for AES50, DANTE, MADI and USB) |
| Word clock IN |
BNC, accepts TTL level, 96 kHz square wave, impedance 75 Ohms |
| Word clock OUT |
BNC, provides a TTL level, 96 kHz square wave |
| External (Ethernet) connector |
Ethercon XLR |
| Monitor output |
2 x HDMI (1920 x 1080p 59.94Hz/60Hz 16:9 & 720 x 480p 59.94Hz/60Hz 16:9 supported) |
| IEC mains socket with power switch |
2 |
Displays
| Display screen |
21″ LCD high brightness 1920 x 1080 px, captive touchscreen, up to 10 simultaneous touches |
| Output meters (quantity 2) |
20 segment -36 dBu to +21 dBu |
Controls
| Custom controls | |
| Talk |
Talk gain min to max |
