มิกเซอร์ MIDAS DDA DM16 Analog Mixer

฿14,500.00

เครื่องผสมสัญญาณเสียง DDA DM16 By MIDAS ขนาด 16 input, 12 mono 2 st MIDAS microphone preamp, 3-band EQ with mid-frequency sweep, 2 switchable pre/post-fader aux sends, 2 monitor outs

ราคาไม่รวมภาษีมูลค่าเพิ่ม…..

ดูสินค้าแบรนด์เดียวกันทั้งหมด: MIDAS

สอบถามและสั่งซื้อสินค้า
Category: Tag:
แชร์สินค้านี้: Facebook X LINE

Description

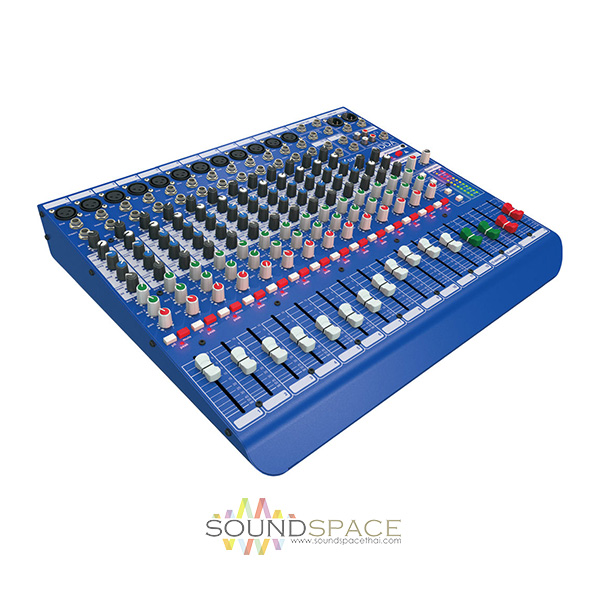

Midas DDA DM16 16-Input Analog Live and Studio Mixer

เครื่องผสมสัญญาณเสียง DDA DM16 By MIDAS ขนาด 16 input, 12 mono 2 st MIDAS microphone preamp, 3-band EQ with mid-frequency sweep, 2 switchable pre/post-fader aux sends, 2 monitor outs

midas_dm16_mixer_4

The compact DM16 16-Input Analog Live/Studio Mixer from MIDAS provides remarkable sonic performance and amazing versatility. The DM16 Mixer features MIDAS microphone preamplifiers with true +48 phantom power that delivers transparency and nuanced low noise and high-headroom design. The mixer has TRS line inputs on all 16 channels (12 mono and 2 stereo), mono channel inserts and 3-band EQ with mid-frequency sweep, 2 switchable pre/post-fader aux sends, 2 monitor outs, and 2-track RCA I/O.

Features:

  • Live performance and studio recording analogue mixer with 16 input channels
  • 12 mono input channels with award-winning MIDAS microphone preamplifiers
  • 2 electronically balanced stereo line input channels on 1/4″ TRS connectors
  • 3 band EQ on mono channels with swept mid band
  • 2 aux sends with pre/post fade switching
  • 60 mm precision long-life faders
  • Rugged chassis construction for durability in portable applications
  • Auto-ranging universal switch-mode power supply
  • Designed and engineered in England

Specifications

Input Channels Mic inputs (MIDAS mic preamp): 12
Type: XLR, balanced
Mic EIN @ 60 dB Gain, 50 ohms Source at Insert Send: -131 dBu, unweighted, 20 Hz to 20 kHz
Mic EIN @ 60 dB Gain, 150 ohms Source at Insert Send: -128 dBu, unweighted, 20 Hz to 20 kHz
Noise @ 10 dB Gain, at Insert Send: -97 dBu, unweighted, 20 Hz to 20 kHz
Frequency Response (-1 dB) at Main Output: 20 Hz to 20 kHz (-1 dB)
Frequency Response (-3 dB) at Main Output: 70 kHz (-3 dB)
Mic Gain Range: +10 dB to +60 dB
Maximum Input Level: +11 dBu @ +10 dB gain
CMRR @ +60 dB Gain: Typically -90 dB
Impedance: 2 kOhms, Balanced
Distortion (THD+N) at 0 dBu: 0.005% @ 1 kHz
Phantom Power: Switchable, +48 V
Line Input Type: 1/4″ TRS, balanced
Impedance: 20 kOhms balanced / unbalanced
Line Gain Range: -10 dB to +40 dB
Maximum Input Level: +30 dBu
Stereo Input Type 4 x 1/4″ TRS connector, balanced
Impedance: 20 kOhms balanced / unbalanced
Gain Range: -20 dB to +20 dB
Maximum Input Level: +21 dBu
Equalizer Low: ±15 dB @ 80 Hz, shelving
Mid (mono inputs only) ±15 dB @ 150 Hz to 3.5 kHz, variable semi-parametric
High ±15 dB @ 12 kHz, shelving
Channel Inserts Type: 1/4″ TRS connector, unbalanced
Maximum Input / Output Level: +21 dBu
AUX Sends Type: 2 x 1/4″ TRS connector, balanced
Impedance: 240 ohms balanced, 120 ohms unbalanced
Maximum Output Level: +21 dBu
Monitor Output Type: 2 x 1/4″ TRS connector, balanced
Impedance: 240 ohms balanced, 120 ohms unbalanced
Maximum Output Level: +21 dBu
Main Output Type: 2 x XLR, electronically balanced
Impedance: 100 ohms balanced, 50 ohms unbalanced
Maximum Output Level: +21 dBu
Inserts Main Out Inserts:
Type: 2 x 1/4″ TRS connector, unbalanced
Maximum Input/Output Level +21 dBu
Phones/Line Out Type 1/4″ TRS connector, unbalanced
Impedance: 25 ohms
Maximum Output Level: +21 dBu
Track Format Type: 2 x RCA, unbalanced
Impedance: 20 kOhms
Maximum Input Level: +21 dBu
Record Output Type: 2 x RCA, unbalanced
Impedance: 1 kOhm
Maximum Output Level: +21 dBu
Main Mix Main Mix @ -∞, Channel Fader @ -∞: -104 dBu, unweighted, 20 Hz to 20 kHz
Main Mix @ 0 dB, Channel Fader @ -∞: -91 dBu, unweighted, 20 Hz to 20 kHz
Main Mix @ 0 dB, Channel Fader @ 0 dB: -84 dBu, unweighted, 20 Hz to 20 kHz

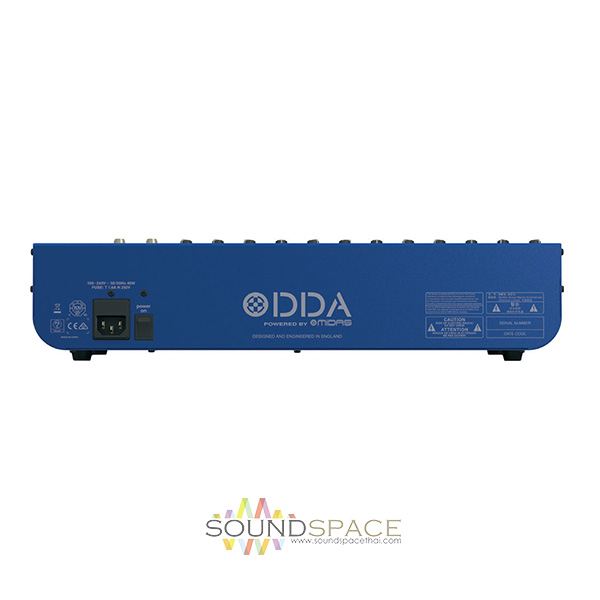

Power Supply Switch Mode Power Supply: 100 to 240V to 50/60 Hz, switchable (T 1.6 A H 250 V) Power Consumption: 40 W Mains Connection Standard IEC receptacle
Dimensions (H x W x D) 3.7 x 17 x 15″ (9.5 x 44 x 37 cm)
Weight 2.3 lb (5.0 kg)
Packaging Info
Package Weight 13.5 lb
Box Dimensions (LxWxH) 20.0 x 17.5 x 6.0″

Data Sheet

ดาวน์โหลด All Documant มิกเซอร์ MIDAS DDA DM16 Analog Mixer

ดาวน์โหลด Product Information Document MIDAS DDA DM16 Analog Mixer

ดาวน์โหลด Quick Start Guide มิกเซอร์ MIDAS DDA DM16 Analog Mixer
