ตู้ลำโพงไลน์อาเรย์ Martin Audio TORUS T1215 Passive Array Speaker 12″15°

ลำโพงแบบแขวนไลน์อาเรย์  Martin Audio TORUS T1215 เป็นตู้ลำโพง Passive 2-way Constant Curvature 15° enclosure  60/90/75° Adjustable Horn, ขนาดดอกลำโพง LF 12″ เสียงแหลม HF 3×1″ ทนกำลังขับ AES 400W, PEAK 1600W, Impedance 8 ohms

coming soon…..

สอบถามและสั่งซื้อสินค้า

Description

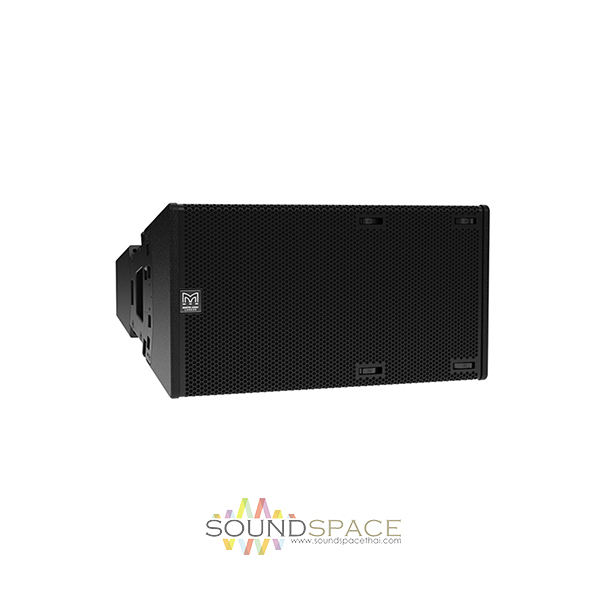

Martin Audio TORUS T1215 Passive Array Speaker 12″ 15°

ลำโพงแบบแขวนไลน์อาเรย์  Martin Audio TORUS T1215 เป็นตู้ลำโพง Passive 2-way Constant Curvature 15° enclosure  60/90/75° Adjustable Horn, ขนาดดอกลำโพง LF 12″ เสียงแหลม HF 3×1″ ทนกำลังขับ AES 400W, PEAK 1600W, Impedance 8 ohms

For applications that typically require a throw between 15-30m (50-100ft), a full-blown line array is not always practical, optimal or affordable. Conversely, a point source solution may not be sufficient in coverage and SPL.

TORUS T1215 is a constant curvature array, designed to fill that gap perfectly, combining optimised coverage, SPL and cost efficiency. T1215 offers a narrow fixed vertical pattern of 15° with a flexible horizontal pattern that can be manually adjusted between 90° and 60° or 75° (asymmetrical) via the Dynamic Horn Flare™.

Features:

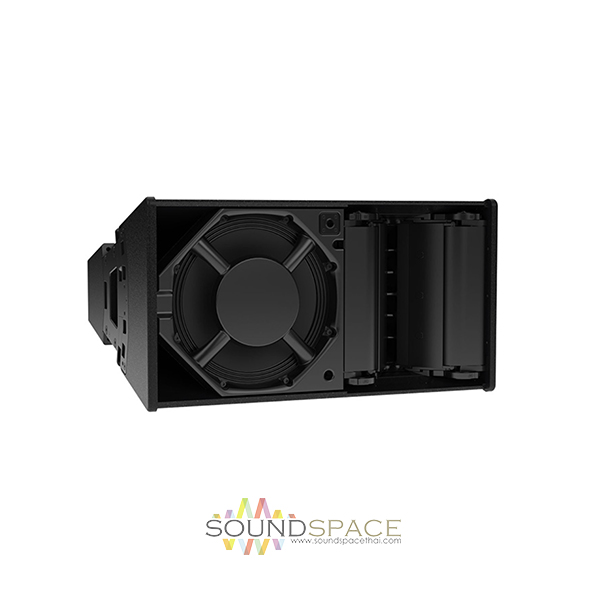

  • 1 x 12” (300mm), & 3 x 1.4” (35mm) HF drivers
  • Passive fixed angle array cabinet of 15° vertical dispersion pattern
  • Manually adjustable Dynamic Horn Flare™ (between 60°, 90° or 75° Asymmetrical) for flexible horizontal pattern
  • Phase plug for increased mid-band sensitivity
  • Optimised coverage via DISPLAY 3 and powered by iKON amplifiers
  • Plug-and-play system, quick set-up and easy rigging

Specifications

Product Name TORUS 12: T1215
Type Passive 2-way Constant Curvature 15° enclosure
Frequency Response (With Ikon Settings) 65Hz – 18kHz ± 3dB, -10dB @ 50Hz
Drivers LF: 12”, 3” Voice Coil, Neodymium
HF: 3 x 1” exit, 1.4” Voice Coil, HT Polymer dome neodymium compression driver
Sensitivity (2.83V 1m free-field) 99dB
Nominal Impedance 8 ohms
Rated Power AES 400W, PEAK 1600W
Maximum Spl (System) 126dB continuous, 132dB peak*
Dispersion 60-75-90° horizontal, 30° vertical
Pin Connections (Input) 1+/- or 2+/-
Pin Connections (Link) 1+/- and 2+/-
Dimensions (W) 650mm, (H) 350mm, (D) 442mm
(W) 25.59ins, (H) 13.76ins, (D) 17.40ins
Weight 26kg (57.32 lbs)
*Martin Audio continues to specify a crest factor of 2 with 6dB between peak and continuous which best mirrors real-world performance. Simply add a further 6dB for comparison with manufacturers quoting a crest factor of 4 ie. 12dB between continuous and peak.
