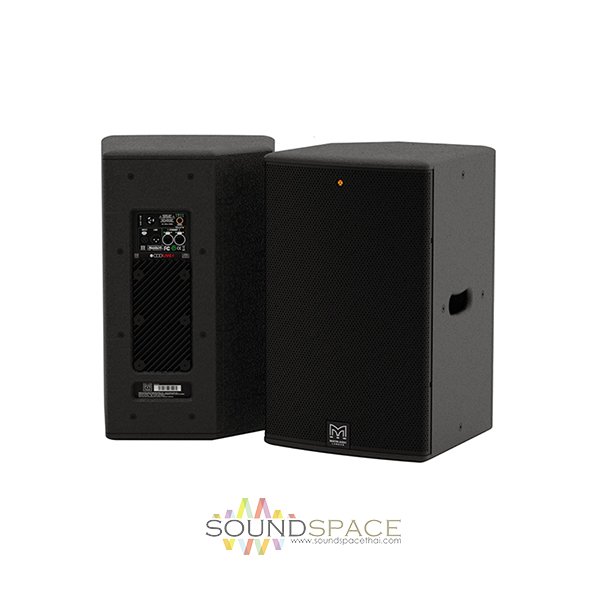

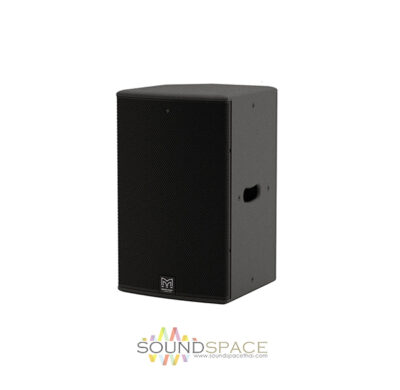

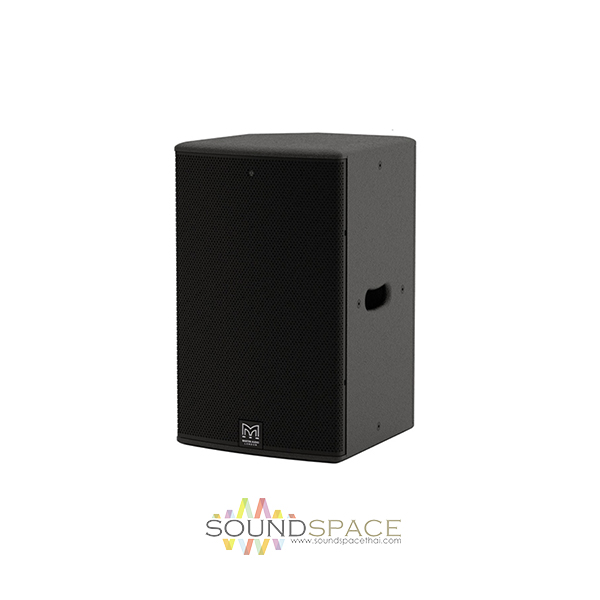

ลำโพงแบบมีกำลังขยายในตัว Martin Audio CDD-LIVE12 Powered Loudspeaker 12″
ตู้ลำโพง Martin Audio CDD-LIVE 12 เป็นตู้แบบ 2 ทาง Coaxial Loudspeaker ขนาดดอกลำโพง LF 12 นิ้ว เสียงแหลม HF 1 นิ้ว มีกำลังขยายในตัว 2500W Onboard Class D amplification and DSP, Dante™ Digital Audio networking, IP24 rating
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม
฿198,000.00
Description
Martin Audio CDD-LIVE 12 Powered Coaxial Loudspeaker 12″ 2500W
ตู้ลำโพง Martin Audio CDD-LIVE 12 เป็นตู้แบบ 2 ทาง Coaxial Loudspeaker ขนาดดอกลำโพง LF 12 นิ้ว เสียงแหลม HF 1 นิ้ว มีกำลังขยายในตัว 2500W Onboard Class D amplification and DSP, Dante™ Digital Audio networking, IP24 rating
The CDD-LIVE 12 is a high-performance, self-powered system designed for professional applications that require high output levels and exceptional fidelity from a very compact enclosure.
With a peak output capability of 128dB at 1 metre, it is the ideal solution for a multitude of premium stand-alone and distributed sound reinforcement requirements from touring, theatre and portable live sound, to concert hall and HoW installations, AV events and stage monitor use.
Features:
- Compact, self-powered two-way system
- Coaxial Differential Dispersion™ technology
- Onboard Class D amplification and DSP
- Dante™ Digital Audio networking
- Global mains operation with Power Factor Correction
- User-rotatable CDD™ driver
- Vertical and horizontal mounting options
- Tour-grade, multi-angle plywood enclosure
- IP24 rating option with rain cowl
- Comprehensive mounting accessories
Specifications
| ACOUSTICS | |
| TYPE | Compact, Coaxial Differential Dispersion powered two-way system |
| FREQUENCY RESPONSE | 62Hz – 20kHz ±3dB, -10dB @ 50Hz |

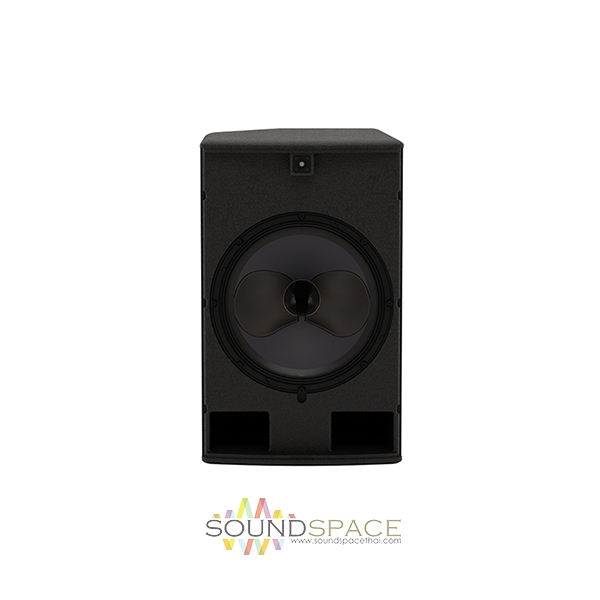

| DRIVER | LF: 12” (300mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor system with HF HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver |
| INPUT SENSITIVITY | -30dBu for 100dB SPL |
| MAXIMUM SPL | 122dB continuous / 128dB peak |
| DISPERSION | 110˚-60˚ horizontal, 60˚ vertical (user-rotatable) |
| CROSSOVER | 1.5kHz Active LR8 with low latency HF FIR equalisation Balance presets for pole mount/ pole mount with sub/ stage monitor |
| MODULE AUDIO INPUT | |

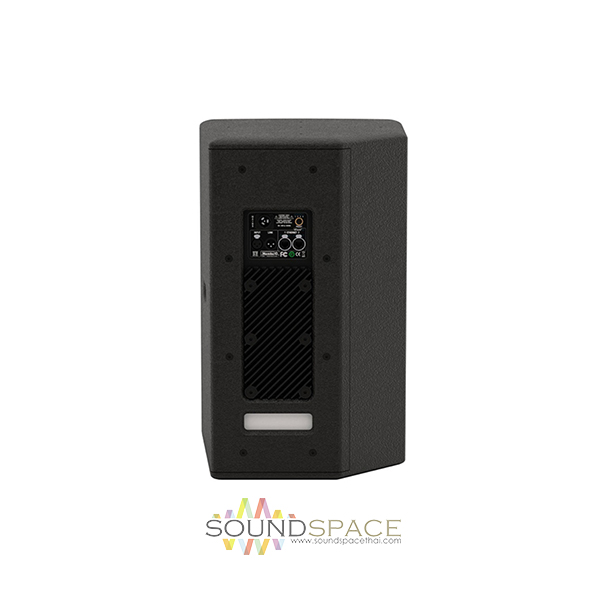

| CONNECTORS | Female XLR input, male XLR link output, Dante Audio Neutrik® Ethercon |
| ANALOGUE INPUT IMPEDANCE | 20 kΩ balanced to ground |
| MAXIMUM ANALOGUE INPUT LEVEL | 24.6 Vpp (+21dBu), over voltage protected |
| INTERNAL PROCESSING | Multi-channel DSP, programmable via TCP/IP using VU-Net software PEQ/shelving filters Up to 48dB/Oct HPF Low latency HF FIR filters Up to 200ms input delay Pre-set selection via rear panel switch |
| NETWORK | |
| CONNECTORS | 2xNeutrik® Ethercon |
| PROTOCOL | TCP/IP and UDP/IP |
| AMPLIFIER | |
| TYPE | 2 channel switch-mode, class D, Bridged Tied Load + 1 channel switch-mode, class D |
| PEAK OUTPUT POWER | 2500W total 2000W LF, 500W HF |
| AVERAGE EFFICIENCY | 89% |
| COOLING | External convection cooled, with internal fan |
| MAXIMUM AMBIENT TEMPERATURE | 40°C (104°F) for full output |
| POWER SUPPLY | |
| TYPE | Switch mode, fixed frequency with PFC |
| AC INPUT OPERATING RANGE | 85 – 265V ~ AC, 50 – 60Hz |
| POWER FACTOR | > 0.98 |
| NOMINAL POWER CONSUMPTION | 160W |
| MAINS CONNECTOR | Neutrik® Powercon True1 |
| MECHANICAL | |
| ENCLOSURE | Extensively braced multi-laminate plywood. |
| FINISH | Textured black PU coating. |
| PROTECTIVE GRILLE | HEX perforated mild steel with protective zinc plating and black powder coat finish. Backed with black grille cloth. |

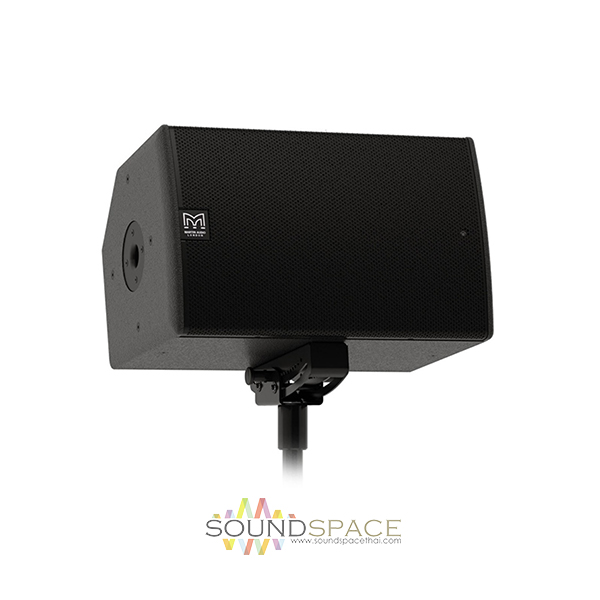

| FITTINGS | Top hat for pole mounting 15 x M8 mounting points Two side pocket handles Optional weather protection cowl |
| IP RATING | IP24 factory option available |
| DIMENSIONS | (W) 359mm x (H) 580mm x (D) 373mm (W) 14.13in x (H) 22.83in x (D) 14.69in |
| WEIGHT | 28kg (61.6lbs) excluding Transit cover |
| ACCESSORIES | Transit Cover Optional wall, yoke and universal brackets |
