Description

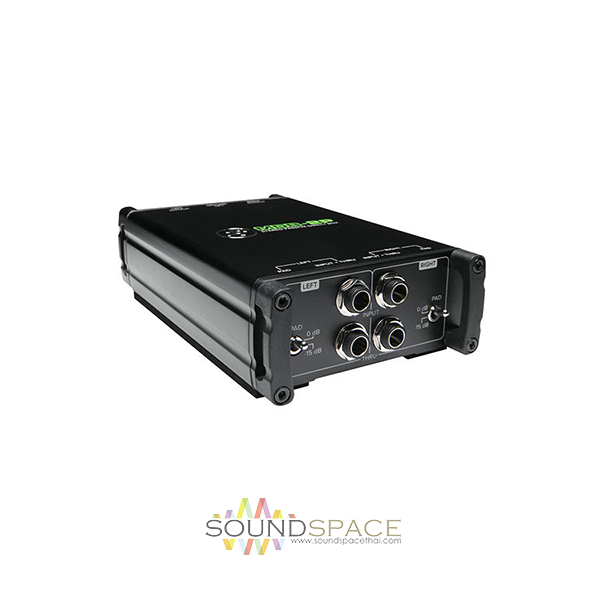

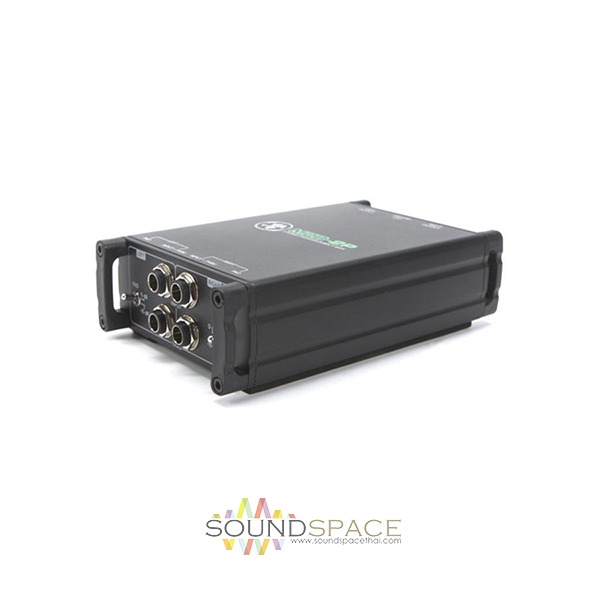

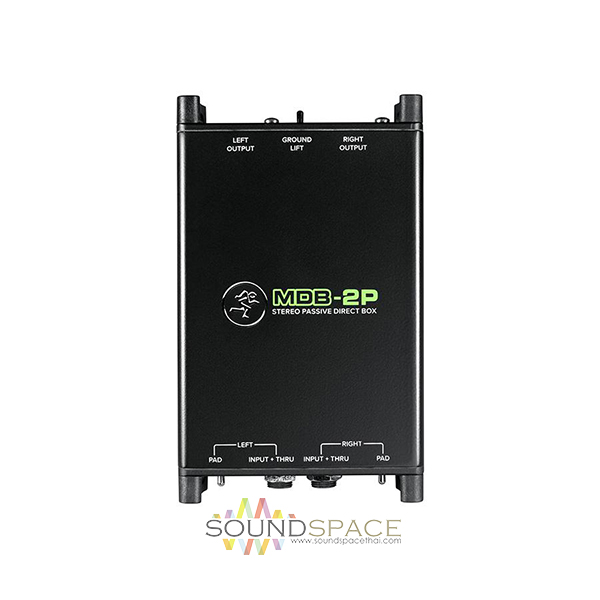

MACKIE MDB-2P Stereo Passive Direct Box
Di Box หรือ Direct Box แบบแม่เหล็ก Passive MACKIE MDB-2P, แปลงไม่สมดุลย์เป็น Balanced, อินพุตไม่สมดุล 1/4 “สองตัว, แจ็ค TS Thru 1/4” สองตัว, เอาต์พุตบาลานซ์ XLR 3 ขาสองตัว, -15 dB Pads, กราวด์ – ลิฟท์สวิตช์ไม่ต้องใช้แหล่งพลังงาน
The Mackie MDB-2P is a stereo passive direct box designed to connect two mono instruments or a single stereo instrument to microphone preamps for musicians and audio engineers in recording sessions, houses of worship, and live stage applications.

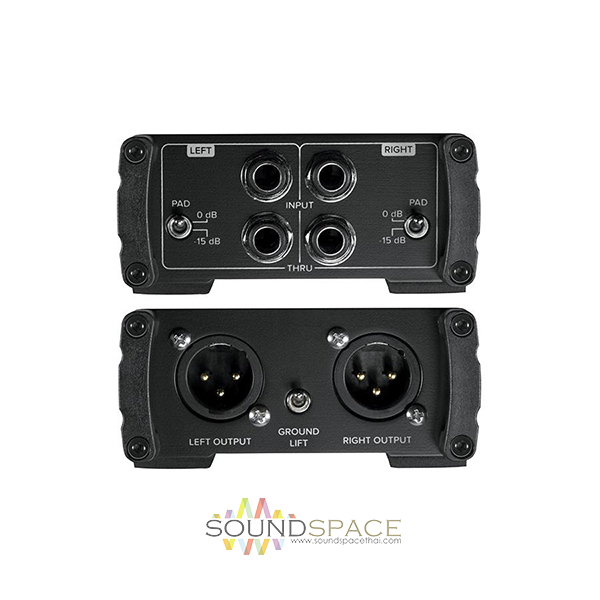

It converts high-impedance, instrument-level signal via its 1/4″ TS unbalanced inputs to low-impedance, mic-level outputs via balanced XLR 3-pin jacks. Two 1/4″ TS thru jacks allow simultaneous connection to amplifiers or pedalboards.
Each channel offers a -15 dB pad for reducing the input level to prevent distortion when using a high-gain source. The ground-lift switch inhibits hum caused by ground loops. Due to passive design principles, the MDB-2P requires no batteries or power supply. Its sturdy steel chassis enables confident use in the studio or on the road.
Features:
- Connect two mono instruments such as guitars or basses or a stereo instrument such as a keyboard to microphone preamps
- Converts high-impedance, unbalanced 1/4″ TS inputs to low-impedance, balanced XLR mic-level outputs
- 1/4″ thru jacks for routing to amplifiers or pedalboards
- Per-channel -15 dB pad prevents overloading when accepting signal from a loud source
- Ground-lift switch minimizes hum
- Passive design requires no batteries or power supply
