ดิจิตอลแร็คมิกเซอร์ MACKIE DL16SE 16-ch Rackmount Digital Mixer

฿34,700.00

ดิจิตอลมิกซ์แร็คมิกเซอร์ MACKIE DL16SE 16-in/16-out USB Audio Interface, 16 Onyx+ Preamps, 8 XLR Outputs, 4-Band EQ, HPF & Dynamics, 31-Band Graphic EQ on Output Busses, Effects, and Wireless App Control

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม….

แชร์สินค้านี้: Facebook X LINE

Description

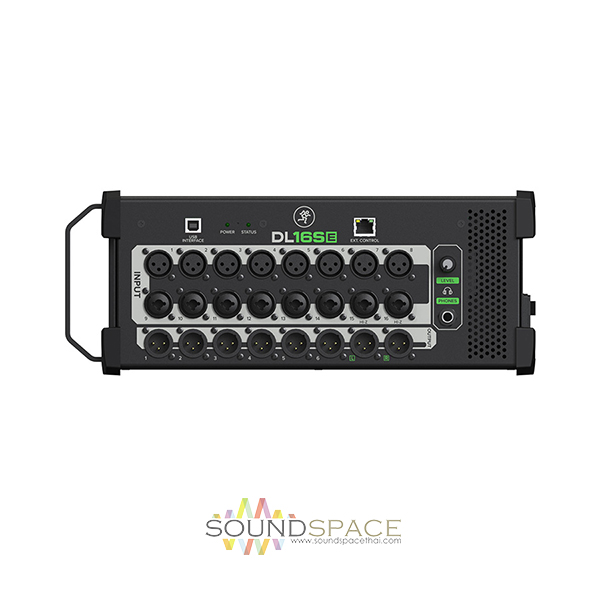

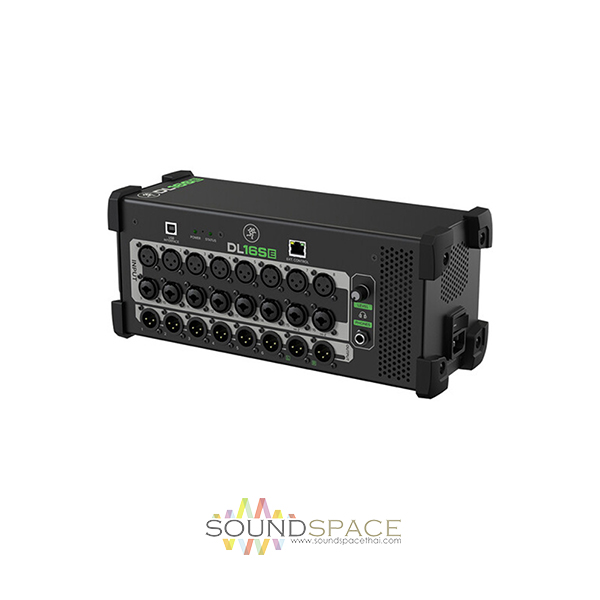

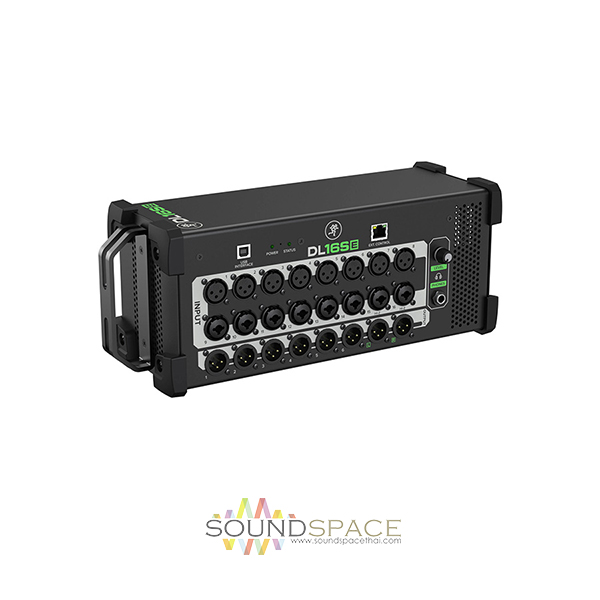

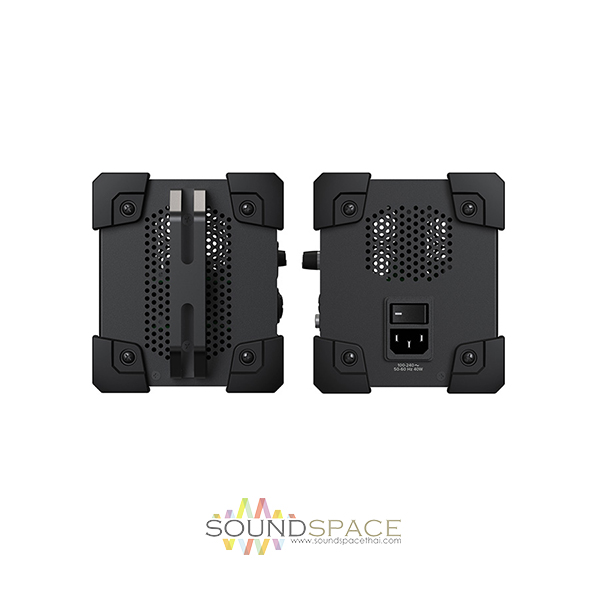

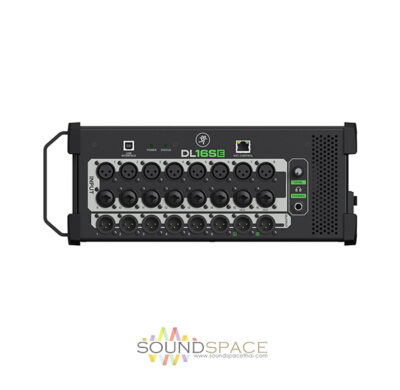

MACKIE DL16SE 16-ch Rackmount Digital Mixer

ดิจิตอลมิกซ์แร็คมิกเซอร์ MACKIE DL16SE 16-in/16-out USB Audio Interface, 16 Onyx+ Preamps, 8 XLR Outputs, 4-Band EQ, HPF & Dynamics, 31-Band Graphic EQ on Output Busses, Effects, and Wireless App Control

The Mackie DL16SE digital mixer delivers proven mixing power with legendary Onyx+ mic preamps in a stage-friendly, rack-mountable design made to withstand real-world abuse. Connect to your wireless router and get mixing quickly with the industry-leading, multi-platform Master Fader SE app. C

reate stunning multitrack recordings and get playback for a virtual soundcheck via USB I/O. Loaded with per-channel and output DSP plus 4 FX processors, DL16SE gives you all the mixing power you need for proven professional sound.

Features:

  • Ample I/O including 16 stereo-linkable input channels, 8 fully assignable XLR outputs, 13 output buses, 6 stereo-linkable aux sends, 6 stereo-linkable subgroups, a Main L/R bus, and a headphone output
  • 16 recallable Onyx+ mic preamps deliver top-notch sound
  • Wireless mixing allows you to take control of your mix via a tablet
  • Tweak your mix, processing, and routing from anywhere in the venue
  • Supports up to 20 tablets at once to accommodate multiple engineers
  • 4 onboard FX processors with dedicated sends and returns create polished, professional-sounding mixes
  • 16-in/16-out USB interface for recording straight to your DAW
  • Play intermission music, backing tracks, and more
  • Play back your full multitrack recording for a virtual soundcheck

Specifications

Mixer
Max I/O Capacity
16x Input / 8x Output
Number of Analog Input Channels
16 (16 Mono / 0 Stereo)
Number of Mic Preamps
16
Number of Analog Output Channels
8
Mix Routing
6x Stereo Aux Send
6x Subgroup
Groups
6x VCA Group
6x Mute Group
Faders & Level Adjustment
No
Signal Processing
Dynamic Processing
Input Channels:
Compressor, Gate
Buses, Master:
Compressor, Limiter
EQ
Input Channels:
4-Band Parametric

Output Buses:
4-Band Parametric
31-Band Graphic
Graphic EQ
31-Band
Filters
Input Channels:
High-Pass

Outputs:
High-Pass
Low-Pass
Solo/Mute
No
Built-In Effects
Stereo Reverb
Stereo Delay
Stereo Chorus
Stereo Flanger
Audio Delay
Yes
Automatic Mic Mixing
No
Connectivity
Analog Inputs
8x XLR Balanced Input
8x Combo XLR-1/4″ TRS Balanced Input
Analog Outputs
8x XLR Balanced Output
1x 1/4″ TRS Headphone Output
Phantom Power
+48 V, Selectable On/Off (Selectable on Individual Inputs)
Digital I/O
1x RJ45 (Wi-Fi Router, 100 Mb/s)
MIDI I/O
No
USB I/O
1x USB-B 2.0 (Host Connection)
Wireless
No
External Display I/O
No
Recording
Max Multitrack Recording
16 Tracks
Media Support
HDD
File Format Support
WAV
Power
Input Power
100 to 240 VAC, 50 / 60 Hz
Physical
Rack Mountable
Yes
Rackmount Size
3 U (with Included Hardware)
Dimensions
14.1 x 5.6 x 5.8″ / 35.8 x 14.2 x 14.7 cm
Weight
6.1 lb / 2.8 kg

Downloads

ดาวน์โหลด Data Sheet DL16SE
