Description
Mackie DL Dante Expansion Card for DL32R Mixer
Mackie การด์ Dente สำหรับดิจิตอลมิกเซอร์ MACKIE รุ่น DL32R 32×32 48 kHz digital audio interface connecting the Mackie DL32R to a Dante network using Cat5e

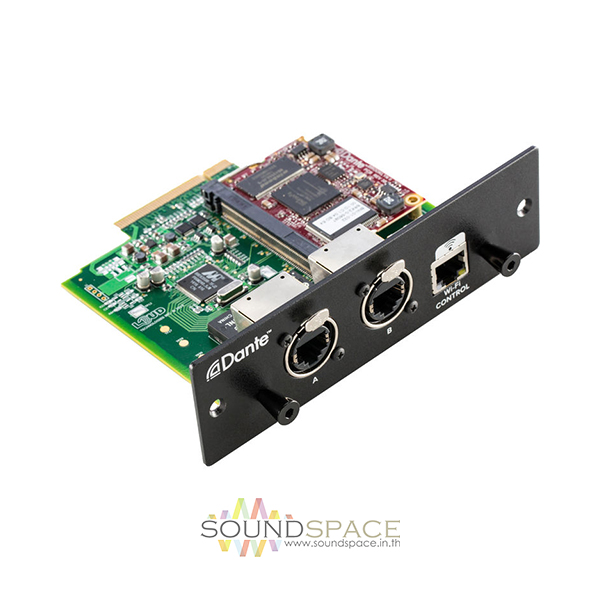

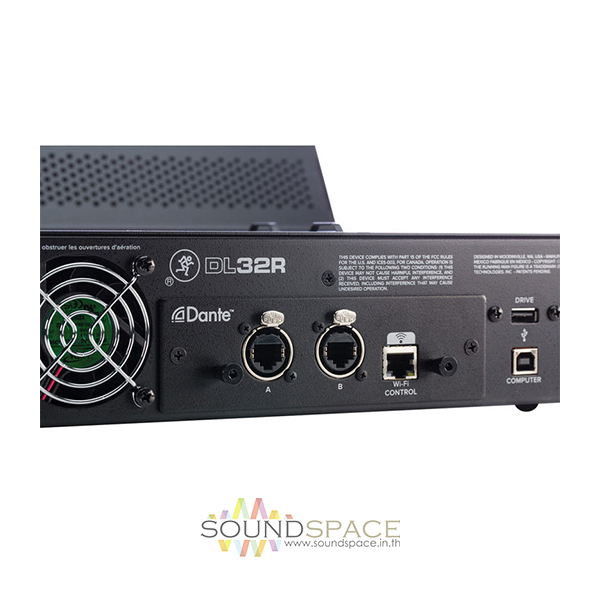

The DL Dante Expansion Card from Mackie connects the DL32R 32-channel digital live sound mixer to any Dante-enabled audio network. With 32×32 channels of inputs/outputs, the user can route inputs like microphones and other sources to any channel on the DL32R. It’s also perfect for sending any DL32R signal to loudspeaker systems and amplifiers. The card features dual ports for daisy-chaining or system redundancy, and a dedicated Wi-Fi control port that eliminates the need for an Ethernet switch in many situations. The DL Dante expansion card includes Dante virtual sound card, which enables multi-tracking recording / playback between Dante and a Mac or PC.
Features:
- 32×32 48 kHz digital audio interface connecting the Mackie DL32R to a Dante network using Cat5e
- Route any signal to the network from the DL32R using Master Fader control software
- Dual Ethercon connectors for Dante daisy-chaining or redundant Dante mode
- Dedicated Wi-Fi control port eliminates need for Ethernet switch in many applications
- Automatic device discovery and custom channel naming with easy one-click routing using Dante Controller software for Mac and PC
- Includes Dante Virtual Soundcard for recording and playback of up to 64×64 channels via Mac or PC
- Use simultaneously with DL32R USB I/O for total routing and recording control
- Simple two-screw user installation
