เครื่องขยายเสียง LAB GRUPPEN D200:4L Power Amplifier

แอมป์ขยายเสียง (เพาเวอร์แอมป์) LAB GRUPPEN D200:4L, with Lake DSP, Up to 5000 W per channel for driving high power elements, 4 “Lake class” analog inputs with Iso-Float™ ground isolation, 4 AES inputs, 8 Dual Redundant Dante™ inputs, Breaker Emulation Limiter (BEL)

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..

฿462,000.00 ฿392,700.00

สอบถามและสั่งซื้อสินค้า

Description

LAB GRUPPEN D200:4L 4-Channel COMBINES 20000 W Amplifier

แอมป์ขยายเสียง (เพาเวอร์แอมป์) LAB GRUPPEN D200:4L, with Lake DSP, Up to 5000 W per channel for driving high power elements, 4 “Lake class” analog inputs with Iso-Float™ ground isolation, 4 AES inputs, 8 Dual Redundant Dante™ inputs, Breaker Emulation Limiter (BEL)

The Lab Gruppen D 200:4L offers 20000 W of power combined with the latest Lake DSP, Dante digital audio networking and advanced system integrity monitoring. Based on the renowned PLM series, the D 200:4L offers reliability and superb sonic performance. Housed in a convenient 2U rack spacing the Lab Gruppen D series offer the perfect choice for any professional sound applications.

The Lab Gruppen D series offers total integration of the widest range of digital audio and control protocols, offering powerful and unique benefits and capabilities. The D 200:4L is an advanced install-dedicated amplifier, part of the Lab Gruppen D Series. Available in two variants, each with three different power models to suit any specific application. The first delivers the proven quality of Lake Processing combined with Dante, while the second features the ground breaking collaboration with Biamp Systems for complete integration with their Tesira DSP platform.

The D series is available in 3 different power configurations of 8000 W, 12000 W and 20000 W and also boasts the introduction of Rational Power Management (RPM). This allows for true flexibility of power allocation without any loss of channel count. It is the most efficient use of the amplifiers inventory.

Features:

  • Rational Power Management™ (RPM) – True flexibility in allocating total available power output across channel count for most efficient use of system inventory
  • Up to 5000 W per channel for driving high power elements (e.g. subwoofers) on all models – all 4 channels on D 200:4L.
  • Lake processing Classic/linear-phase/FIR speaker processing platform with 4 throughputs
  • Input with multitude of automatic redundancy
    • 4 “Lake class” analog inputs with Iso-Float™ ground isolation
    • 4 AES inputs
    • 8 Dual Redundant Dante™ inputs
  • Integration potential with 3rd party matrix systems including MediaMatrix and Q-Sys via purpose developed middleware
  • CAFÉ (Configuring Amplifiers For the Environment) Software incorporating ESP (Equipment Specification Predictor) for design, system planning and equipment planning, installation and commissioning.
  • Regulated Switch-Mode Power Supply (R.SMPS™)
  • Breaker Emulation Limiter (BEL™) to prevent power interruption
  • Under-voltage Limiting (UVL™) for continued operation despite severe voltage drops
  • Best-in-class Power Factor Correction (PFC) with Current Draw Modelling
  • Proven and reliable Class TD® Output Stage with patented Intercooler® high-efficiency cooling system
  • Dedicated on-board surveillance & load monitoring system
  • Redundant audio inputs and onboard system surveillance for mission-critical Voice Alarm applications (PA/VA)
  • Detachable Phoenix plug-in audio connectors for audio I/O

Specifications

General
Processing / Network Lake / Dante
Number of amplifier channels 4
Total burst power all channels (share among channels with RPM) 20000 W
Max output power (all channels driven)1
2 ohms 4400 W
2.67 ohms 5000 W
4 ohms 4400 W
8 ohms 2300 W
16 ohms 1150 W
Hi-Z 70 V 3300 W
Hi-Z 100 V 4700 W
Max output power single channel (all models)1
2 ohms 4400 W
2.67 ohms 5900 W
4 ohms 4600 W
8 ohms 2300 W
16 ohms 1150 W
Hi-Z 70 V 3300 W
Hi-Z 100 V 4700 W
Amplifier output modules (all models, all channels)
Peak output voltage 194 V
Max. output current 67 A
Rational Power Management (RPM) Regardless of model, any channel has potential to deliver the max single channel output power (1 channel on D 80:4, 2 channels on D 120:4)
Default voltage limitation (can be lifted with RPM configuration) 194 V
Protection features Current Average Limiter (CAL), Very High Frequency Protection (VHF), Direct Current Protection (DC), Short Circuit Protection, Current-Clip Limiter, Voltage Clip Limiter, Temperature protection
Amplifier platform
Inter Sample Voltage Peak Limiter (ISVPL) Configurable Peak voltage threshold and profile
THD + N at 1 kHz and 1 dB below clipping < 0.04 %
Pilot tone generation and analysis Yes
Load impedance analysis Yes
Frequency response (1 W into 8 Ohm, 20 Hz – 20 kHz) +/- 0.05 dB
Internal Sample Rate / Data path 48 / 96 kHz / 32 bit floating point
Product propagation delay AES 96 kHz / analog input 1.61 / 1.68 ms
Lake processing
Loudspeaker processing Up to 4 modules of Classic/linear-phase/FIR crossover, EQ, delay, LimiterMax™ – peak and RMS limiters
System tuning Group control with Raised Cosine™ MESA EG™ asymmetric filters
Input redundancy / Matrix Automatic 4 level input redundancy / 4 input mixers
System integration Comprehensive 3rd party protocol over UDP Ethernet
Dante Audio Network
Dante I/O 8 x 8
Network topology / redundancy Flexible topology / Supports daisy-chained and Dual redundant networks
Sample Rates / Transport 48, 96 kHz / Uni + Multicast
Network latency 0.25, 0.5, 1.0, 2.0, 5.0 ms
AES Inputs
Inputs 2 AES inputs (4 audio channels)
Supported sample rates / resolution 44.1, 48, 88.2, 96, 176.4, 192 kHz / up to 24 bits
Sample rate conversion THD+N 20 Hz – 20 kHz unweighted 0.00003 %
Analog Inputs
Inputs 4 high quality inputs with Iso-Float ground isolation
Maximum input / digital reference +26 dBu / +21 dBu
Sampling rate / Resolution 96 kHz / 24 bit
Input impedance balanced / unbalanced 20 / 10 kOhm
THD+N (typical at 1 kHz unweighted) 0.00022 %
THD+N (typical at 20 Hz and 20 kHz unweighted) 0.00033 %

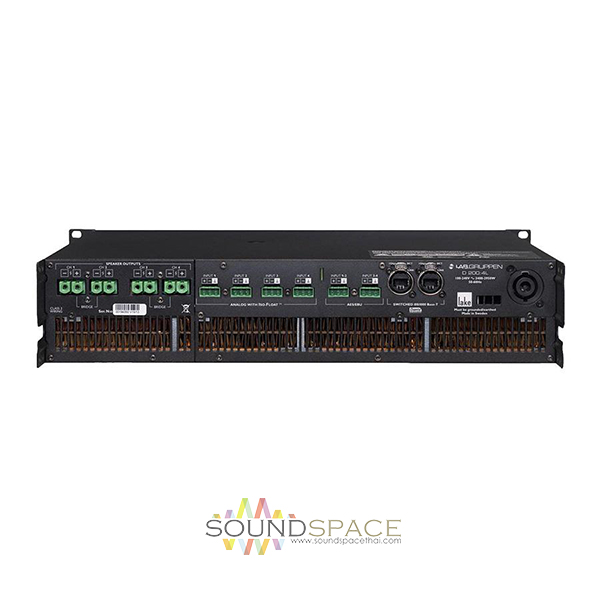

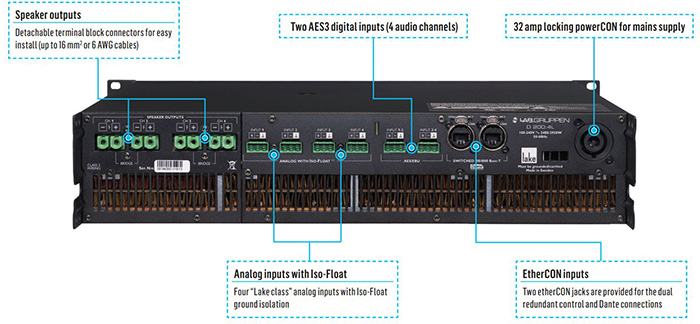

Back panel Interface
Analog inputs 4 x Terminal block connectors analog input with +, – and ground
AES inputs 4 x Terminal block connectors analog input with +, – and ground
Output connectors 4 x 2 pole Terminal block connectors rated at 1000 V / 76 A (exceeding amplifier capacity) Can take up to 16 mm2 (6 AWG) cables
Ethernet Ports 2 x EtherCon RJ45 100/1000 Base-T for the Lake Controller, Dante controller and/or DLM (3rd party protocol)
Detachable mains cord Neutrik PowerCon rated at 250V/32A

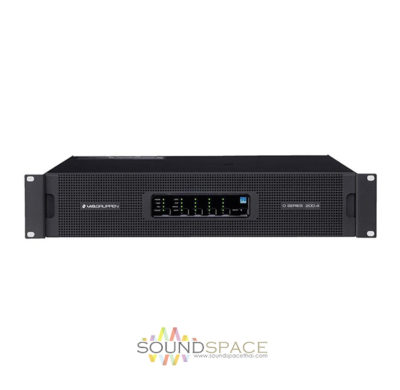

Front-panel user interface
System status indication 3 x 3 colored LED. FRAME, TEMP, PSU for device status indication
Channel status indication 3 x 3 colored LED per channel. Status indication separated for channel LOAD, AMP, SIGNAL status
Mute Per channel touch button for mute control and bicolored LED for indication
Power Touch button for ON/STANDBY control and bicolored LED for power state indication
Select Touch button and LED for bidirectional Device -Software select functionality
Mains Power
Nominal voltage 100 – 240 Volt AC 50 – 60 Hz
Operating voltage 70 – 265 V AC 45 – 66 Hz
Mains wall plug Selectable on order
CEE 7/7 “Schuko” 230 V / 16 A
NEMA L5-30 “Twistlock” 125 V / 30 A
NEMA 5-15P 125 V / 15 A (D 80:4 only)
NEMA 5-20P 125 V / 20 A (D 120:4 only)
NEMA 6-20P 250 V / 20 A
AS/NZS 3112 230 V / 15 A (Aus/Nz)
BS 546 230 V / 16 A (India)
C-30P 125 V / 30 A (Japan)
Power supply features
Soft start / Inrush power Yes/ Max 8 Ampere
Power factor correction > 0.98 for mains power > 400 W
Regulated switch mode power supply (R.SMPS) Yes
Breaker Emulation Limiter (BEL) Configurable current threshold and breaker profile
BEL max current threshold 32 A
Power Average Limiter (PAL) Yes
Under Voltage Limiter (UVL) Yes
Mains undervoltage and overvoltage protection and mains glitch tolerance Yes
Dimensions
Rack rail to rear panel W: 483 mm (19″), H: 88 mm (2 U), D: 424 mm (16″)
Overall depth front-rear support D: 463 mm
Weight
Weight 16.5 kg (36 lbs)
Finish
Finish Black painted steel chassis with grey painted steel front with detachable grille
Approvals
Approvals CE, ETL(ANSI/UL, CSA), PSE, RCM

Note:

  • 1. Lab.gruppen burst power (1 kHz, 25 ms burst power @ 150 BPM, 12 dB Crest factor)
