เครื่องขยายเสียง LAB GRUPPEN CA601 Commercial Amplifier
แอมป์ขยายเสียง (เพาเวอร์แอมป์) LAB GRUPPEN CA601 เป็นแอมป์ในตระกูล CA-Series ที่ออกแบบมาสำหรับงาน Installation มีกำลังขับ 60 วัตต์ Class D Amplifier, Low-Z (4/8 Ohm) and High-Z (70/100 V) operation with switchable high-pass filter, มีขนาดครึ่งแร็ค Rack-mountable 1U, Half-Rack
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..
฿10,900.00 ฿10,100.00
Description
LAB GRUPPEN CA601 Commercial Amplifier 60W
แอมป์ขยายเสียง (เพาเวอร์แอมป์) LAB GRUPPEN CA601 เป็นแอมป์ในตระกูล CA-Series ที่ออกแบบมาสำหรับงาน Installation มีกำลังขับ 60 วัตต์ Class D Amplifier, Low-Z (4/8 Ohm) and High-Z (70/100 V) operation with switchable high-pass filter, มีขนาดครึ่งแร็ค Rack-mountable 1U, Half-Rack
The CA601 60-Watt Commercial Amplifier provides the perfect solution for commercial and industrial applications requiring great sounding distributed audio coupled with power conservation and reduced operating expense. Capable of delivering high-quality sound over both Low-Z (4/8 Ohm) and High-Z (70/100 V) loudspeaker configurations offering extreme flexibility on every channel.
The CA601 is easy to install and operate – even for non-technical personnel. Simply put, the CA601 is ideal-suited for bars & restaurants, retail destinations, hotels, corporate, education or other venues needing background music and/or a public address system.
Features:
- 60 Watt amplifier for commercial and industrial applications
- Low-Z (4/8 Ohm) and High-Z (70/100 V) operation with switchable high-pass filter
- Energy Star* certified design conserves energy and drastically reduces operational cost
- Direct drive, constant power technology for superior audio performance and reliability
- GPI remote volume control using standard RJ-45 connector and Ethernet cable
- Individual front panel master volume and bass/treble controls
- Auto Ramp circuitry for quiet and fast power up/down enables real-world energy savings
- Front panel power control button for direct access

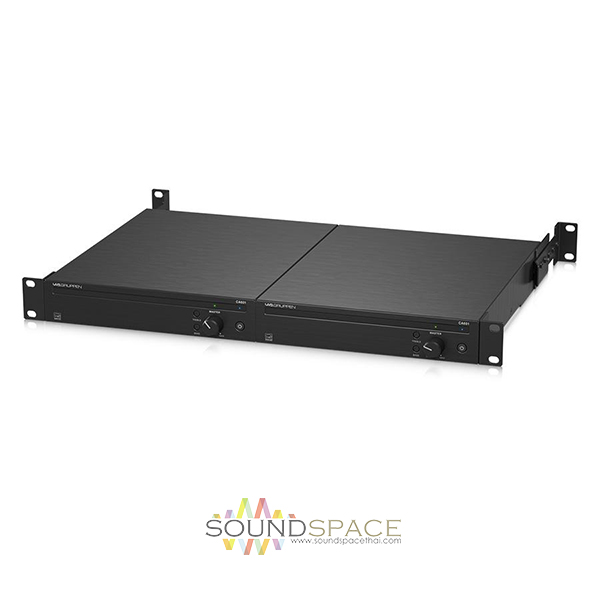

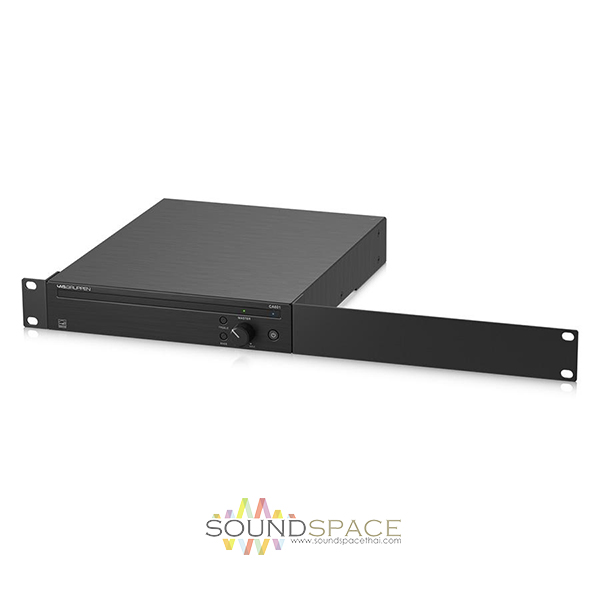

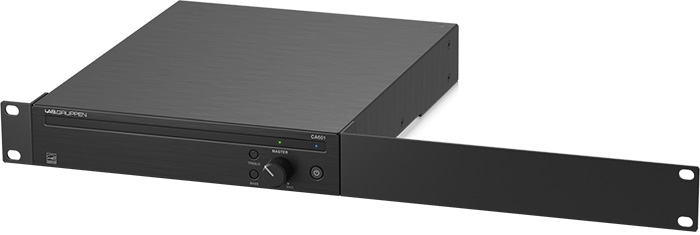

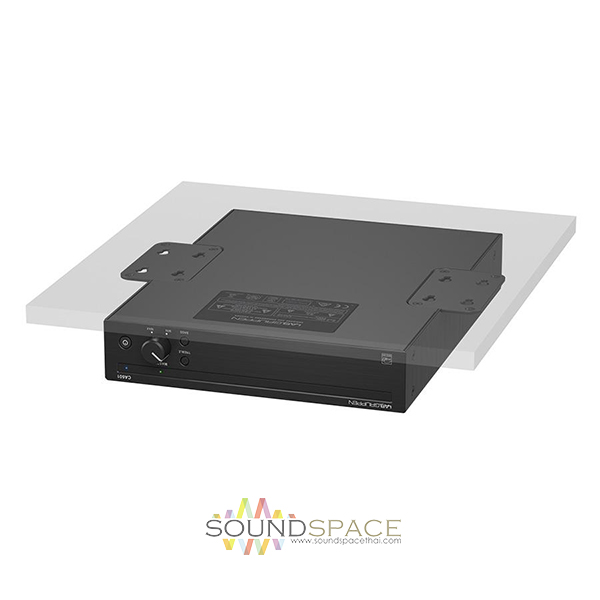

- Rack-mountable 1U, half-rack width enclosure with joining brackets for rack, table and wall mounting
- Euroblock type amplifier input and output connectors
- Convection-cooled, fan-less amplifier technology for low noise
- Designed and engineered in Sweden
Specifications
| Maximum Output Power | |
| 4 Ω per channel | 60 W |
| 8 Ω per channel | 60 W |
| 70 V per channel | 60 W |
| 100 V per channel | 60 W |
| Number of Ouput Channels | Number 1 |
| Minimun Load Impedance | |
| 4 Ω mode | 4 Ω |
| 8 Ω mode | 8 Ω |
| 70 V output mode | 82 Ω |
| 100 V output mode | 166 Ω |
| Limiter Voltage / Amp Gain | |
| 4 Ω mode | 22 Vpeak / 22 dB |
| 8 Ω mode | 31 Vpeak / 25 dB |
| 70 V output mode | 100 Vpeak / 35 dB |
| 100 V output mode | 141 Vpeak / 38 dB |
| Controls | |
| Front | Power standby button, gain control, tone controls – bass and treble |
| Rear | Load config – (4 Ω / 8 Ω / 70 V / 100 V), switchable 80 Hz high-pass filter |
| Tone Controls | |
| Bass | ±10 dB @ 100 Hz |
| Treble | ±10 dB @ 10 kHz |
| Indicators | |
| Power | On (blue), force standby (red), sleep (yellow) |
| Master | Signal (green LED) >12.3 mV (-36 dBu) Limit (red LED) Input clip, output limit Fault (red LED) Overheat, DC fault, over current, etc |
| System | |
| Inputs | 1 x 3-pin 5.08 mm Euroblock connector 1 x RCA stereo summed |
| Input impedance | 10 kΩ unbalanced and RCA, 20 kΩ balanced |
| Input sensitivt | Balanced: 1.23 V (+4 dBu) RCA: 0.62 V (-2 dBu) each for mono sum RCA |
| Maximum input | level 9.75 V (+22 dBu) |
| Outputs | 1 x 2-pin 5.08 mm Euroblock connector |
| Output circuit type | Class D |
| Remote connector | 1 x RJ45 connector |
| Performance | |
| Distortion, 1/8 rated power | <0.05% |
| Frequency response | 20 Hz to 20 kHz, +0.5 / -1 dB |
| Crosstalk (2 channel models) | >85 dB |
| Signal-to-noise | >97 dBA |
| High-pass filter | 80 Hz HPF |
