เครื่องขยายเสียง LAB GRUPPEN CA1201 Commercial Amplifier

แอมป์ขยายเสียง (เพาเวอร์แอมป์) LAB GRUPPEN CA1201 เป็นแอมป์ในตระกูล CA-Series ที่ออกแบบมาสำหรับงาน Installation มีกำลังขับ 120 วัตต์ Class D Amplifier, Low-Z (4/8 Ohm) and High-Z (70/100 V) operation with switchable high-pass filter, มีขนาดครึ่งแร็ค Rack-mountable 1U, Half-Rack

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..

฿13,600.00 ฿11,500.00

สอบถามและสั่งซื้อสินค้า

Description

LAB GRUPPEN CA1201Commercial Amplifier 120W

แอมป์ขยายเสียง (เพาเวอร์แอมป์) LAB GRUPPEN CA1201 เป็นแอมป์ในตระกูล CA-Series ที่ออกแบบมาสำหรับงาน Installation มีกำลังขับ 120 วัตต์ Class D Amplifier, Low-Z (4/8 Ohm) and High-Z (70/100 V) operation with switchable high-pass filter, มีขนาดครึ่งแร็ค Rack-mountable 1U, Half-Rack

LAB GRUPPEN CA1201 120-Watt Commercial Amplifier provides the perfect solution for commercial and industrial applications requiring great sounding distributed audio coupled with power conservation and reduced operating expense. Capable of delivering high-quality sound over both Low-Z (4/8 Ohm) and High-Z (70/100 V) loudspeaker configurations offering extreme flexibility on every channel.

The CA1201 is easy to install and operate – even for non-technical personnel. Simply put, the CA1201 is ideal-suited for bars & restaurants, retail destinations, hotels, corporate, education or other venues needing background music and/or a public address system.

Features:

  • 120 Watt amplifier for commercial and industrial applications
  • Low-Z (4/8 Ohm) and High-Z (70/100 V) operation with switchable high-pass filter
  • Energy Star* certified design conserves energy and drastically reduces operational cost
  • Direct drive, constant power technology for superior audio performance and reliability
  • GPI remote volume control using standard RJ-45 connector and Ethernet cable
  • Individual front panel master volume and bass/treble controls
  • Auto Ramp circuitry for quiet and fast power up/down enables real-world energy savings
  • Front panel power control button for direct access

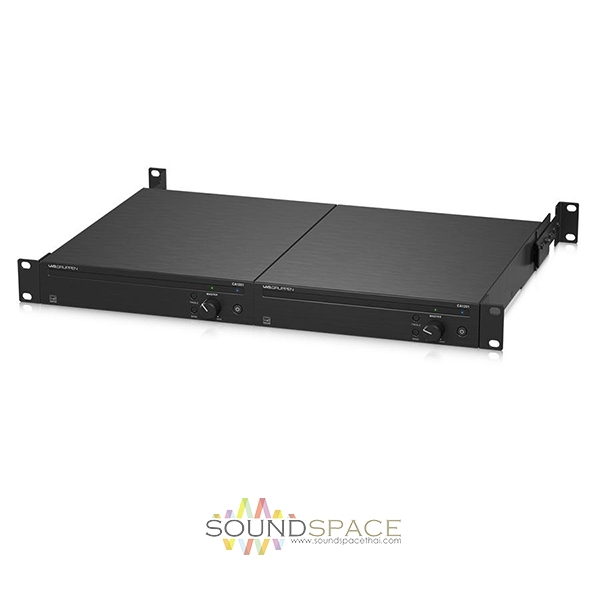

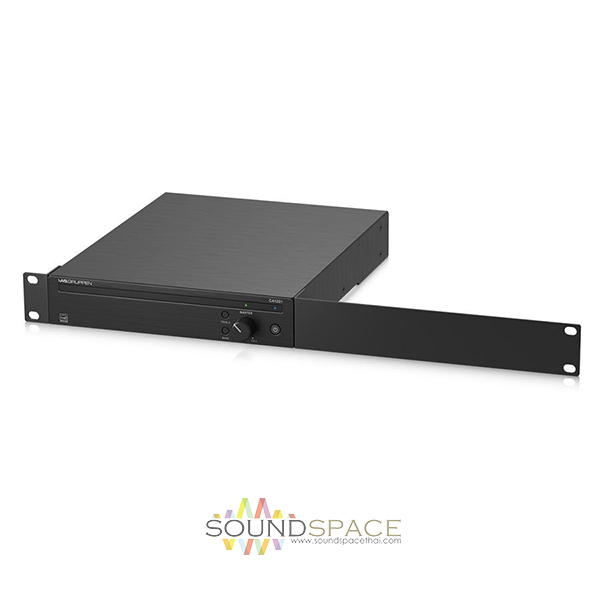

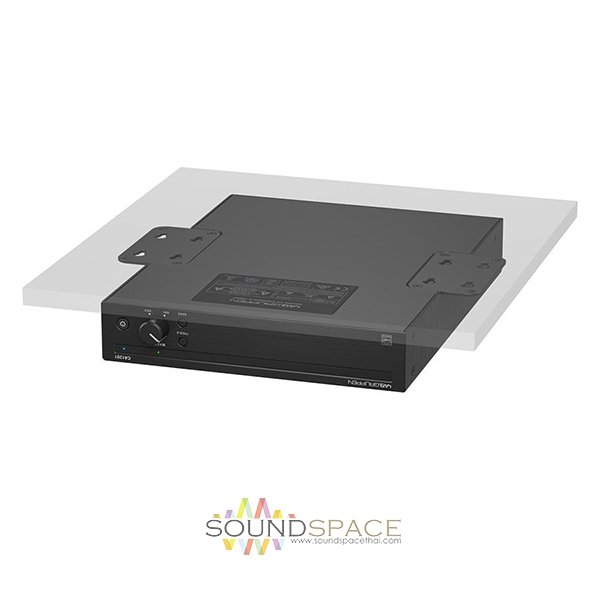

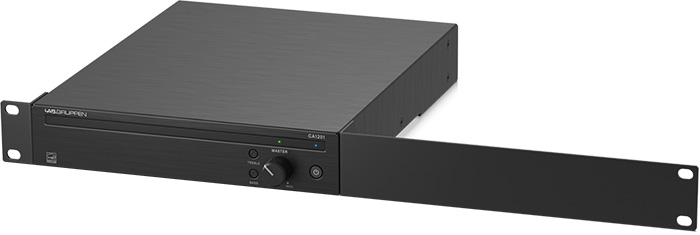

  • Rack-mountable 1U, half-rack width enclosure with joining brackets for rack, table and wall mounting
  • Euroblock type amplifier input and output connectors
  • Convection-cooled, fan-less amplifier technology for low noise
  • Designed and engineered in Sweden

Specifications

Maximum Output Power
4 Ω per channel 120 W
8 Ω per channel 120 W
70 V per channel 120 W
100 V per channel 120 W
Number of Ouput Channels Number 1
Minimun Load Impedance
4 Ω mode 4 Ω
8 Ω mode 8 Ω
70 V output mode 41 Ω
100 V output mode 82 Ω
Limiter Voltage / Amp Gain
4 Ω mode 31 Vpeak / 25 dB
8 Ω mode 44 Vpeak / 28 dB
70 V output mode 100 Vpeak / 35 dB
100 V output mode 141 Vpeak / 38 dB
Controls
Front Power standby button, gain control,
tone controls – bass and treble
Rear Load config – (4 Ω / 8 Ω / 70 V / 100 V),
switchable 80 Hz high-pass filter
Tone Controls
Bass ±10 dB @ 100 Hz
Treble ±10 dB @ 10 kHz
Indicators
Power On (blue), force standby (red),
sleep (yellow)
Master Signal (green LED) >12.3 mV (-36 dBu)
Limit (red LED) Input clip, output limit
Fault (red LED) Overheat, DC fault, over current, etc
System
Inputs 1 x 3-pin 5.08 mm Euroblock connector

1 x RCA stereo summed

Input impedance 10 kΩ unbalanced and RCA, 20 kΩ balanced
Input sensitivt Balanced: 1.23 V (+4 dBu)
RCA: 0.62 V (-2 dBu) each for mono sum RCA
Maximum input level 9.75 V (+22 dBu)
Outputs 1 x 2-pin 5.08 mm Euroblock connector
Output circuit type Class D
Remote connector 1 x RJ45 connector
Performance
Distortion, 1/8 rated power <0.05%
Frequency response 20 Hz to 20 kHz, +0.5 / -1 dB
Crosstalk (2 channel models) >85 dB
Signal-to-noise >97 dBA
High-pass filter 80 Hz HPF
