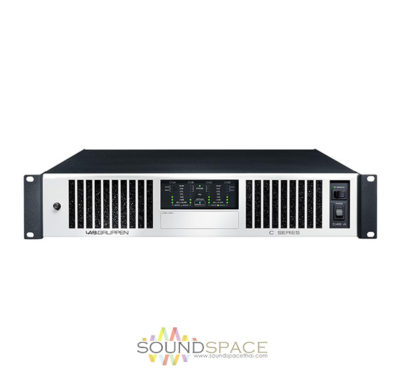

เครื่องขยายเสียง LAB GRUPPEN C48:4 Power Amplifier

แอมป์ขยายเสียง LAB GRUPPEN C48:4, เป็นเพาเวอร์แอมป์แบบ 4 ชาแนล มีกำลังขับ 4×1200 วัตต์ @ 4 Ohms, Lo-Z or Hi-Z (70 V / 100 V) – Selectable per channel, normal or bridged, Class TD® amplifier topology, Screw terminal output connectors


฿142,000.00 ฿127,800.00

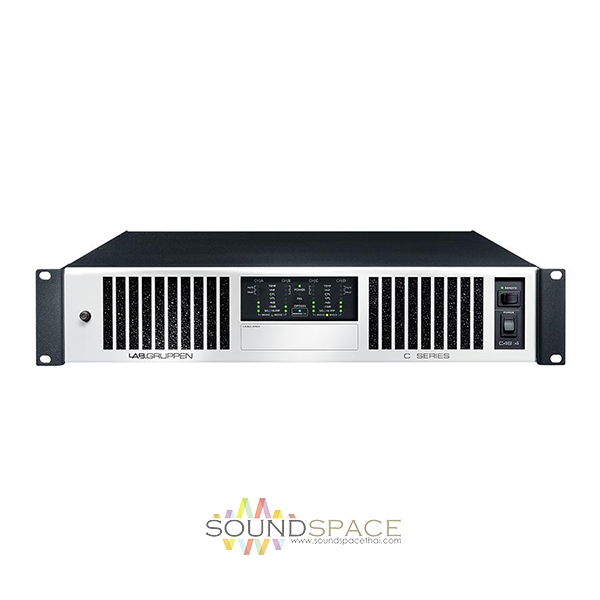

LAB GRUPPEN C48:4 C Series 4-Channel Amplifier (4x1200W)

แอมป์ขยายเสียง LAB GRUPPEN C48:4, เป็นเพาเวอร์แอมป์แบบ 4 ชาแนล มีกำลังขับ 4×1200 วัตต์ @ 4 Ohms, Lo-Z or Hi-Z (70 V / 100 V) – Selectable per channel, normal or bridged, Class TD® amplifier topology, Screw terminal output connectors

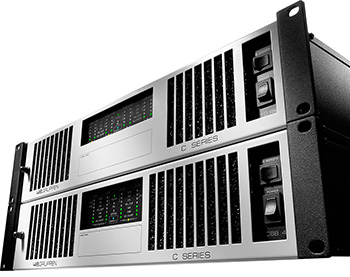

The C 48:4 is the third largest amplifier in the C Series family, delivering an impressive 4 × 1200 W at 4 ohms. The exceptional power output plus a long list of protection and monitoring features are all packed into a 2U chassis.

C Series amplifiers are uniquely capable of adapting to a wide variety of demanding load conditions. Each channel has an individually configurable Voltage Peak Limiter (VPL™), which allows the output to be optimized for any loudspeaker load – whether a single large subwoofer or a series of small 100/70 V loudspeakers. VPL works in combination with adjustable input gain to achieve maximum headroom regardless of input levels or output impedances.

Every C Series is ready for the NomadLink® network right out of the box. With NomadLink, key amplifier parameters are displayed via DeviceControl software, and remote control of channel mutes and power on/off is under network control.


  • Unprecedented power density – Total output of 4800 W (4 ohms) in a 2U cabinet
  • Four channels – All channels bridgeable for 2- or 3-channel configurations
  • Lo-Z or Hi-Z (70 V / 100 V) – Selectable per channel, normal or bridged
  • Patented Class TD® amplifier topology
  • Voltage Peak Limiter (VPL) – Configurable per channel to optimize each output for connected loads
  • Phoenix-type input connectors
  • Screw terminal output connectors
  • Comprehensive protection and warning – Excessive output current, DC, high temperature, very high frequency (VHF), short circuit, open load, mains fuse protection, and soft start
  • Efficient and uniform Intercooler® cooling
  • NomadLink® network ready


Model C Series 48:4
Number of amplifier channels 4
Peak total output all channels driven 4800 W
Peak output voltage per channel 141 V
Max output current per channel 17.5 Arms
Max output power (all channels driven)
16 ohms 625 W
8 ohms 1000 W
4 ohms 1200 W
2 ohms 600 W
Hi-Z per ch. (all ch.’s driven): 70 Vrms / 100 V peak 1100 W
Max output power bridged
16 ohms 2000 W
8 ohms 2400 W
4 ohms 1200 W
2 ohms Not recommended 1
Bridged per ch.: 140 Vrms / 200 V peak 1800 W
THD 20 Hz – 20 kHz at 1 W <0.1%
THD at 1 kHz and 1 dB below clipping <0.05%
Signal to Noise Ratio >112 dBA
Channel separation (Crosstalk) at 1 kHz >70 dB
Frequency response (1 W into 8 ohms) + 0 / -3 dB 6.8 Hz – 34 kHz
Input impedance 20 kOhm
Common Mode Rejection (CMR) >50 dB, 20 Hz – 20 kHz
Output impedance @ 100 Hz 30 mOhm
Gain, Sensitivity and Limiters
VPL, selectable per ch 2 141, 118, 100, 85, 71, 59, 50, 42 V
VPL, when bridged 2 3 282, 236, 200, 170, 142, 118, 100, 84 V
Voltage Peak Limiter mode (per ch.) Hard / Soft
Amplifier gain selectable (all channels) – rear-panel switches 3 23, 26, 29, 32, 35, 38, 41, 44 dB
Default gain 35 dB
Level adjustment (per channel) Front-panel potentiometer, 21 position detented from -inf to

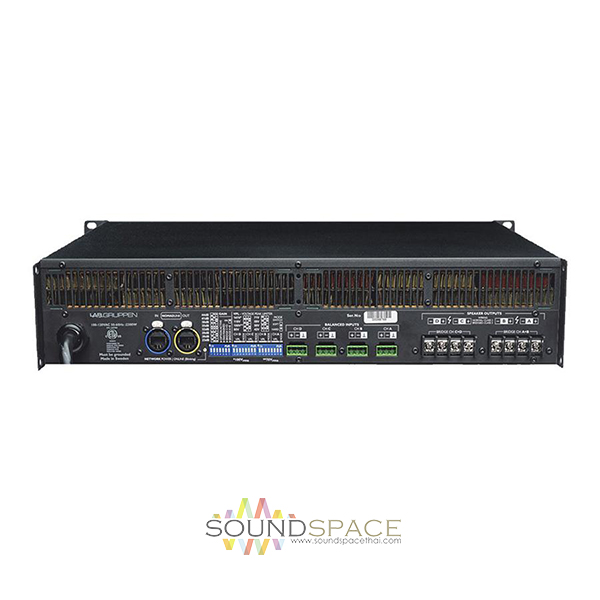

Connectors and Buttons
Input connectors (per ch.) 3-pin Phoenix, electronically balanced
Output connectors (per ch.) Barrier strip 2-pole screw terminals
Output bridge mode A+B and/or C+D, inputs A and C are input source
NomadLink network On board, 2 x RJ45 connectors IN and OUT
Intelligent fans (on/off) Yes, depending on presence of output signal
Power Individual switches on front panel
Cooling Two fans, front-rear airflow, temperature controlled speed
Front-panel user interface
Common NomadLink Network; Power Average Limiter (PAL)5; Power on
Per channel Signal present / High-impedance; -10 dB and -4 dB output signal;Voltage Peak Limiter (VPL); Current Peak Limiter (CPL): Very High Frequency (VHF); High temperature; Fault; Mute
Operating voltage, 230 V / 115 V nominal 130-265 V / 65 -135 V 4
Minimum power-up voltage, 230 V / 115 V 171 V / 85 V
Power Average Limiter (PAL) 5 Yes
Power Factor Correction (PFC) No
Soft-start / Inrush Current Draw Yes / max. 5 A
Mains connector 230 V CE: 16 A, CEE7; 115 V ETL: 20 A / NEMA 5-20P; C16:4: 15A/NEMA 5-15P
Dimensions W: 483 mm (19”), H: 88 mm (2 U), D: 343 mm (13.5”)
Weight 12 kg (26.4 lbs)
Finish Black painted steel chassis with gray painted steel front
Approvals CE, ANSI/UL 60065 (ETL), CSA C22.2 NO. 60065, FCC


  • 1: Regarding n.r. (not recommended) notes: The amplifier will be fully operational in bridge-mode into 2 ohm and high impedance (Hi-Z) loads, but due to physical constraints in the construction, the max. output power will not be significantly higher than running individual channels and therefore this mode of operation is not recommended.
  • 2: For sine waves, peak voltage output values translate to Vrms with the formula V/1.41 = Vrms. E.g. 100 V peak equals app. 70 Vrms. Hence, outputs can be set for high-impedance loads without requiring a transformer.
  • 3: Automatic -6 dB gain compensation when bridging channels. Ch.’s A+B and/or C+D, can be bridged individually.
  • 4: Separate 230 V or 115 V versions available. Not selectable on the amplifier.
  • 5: PAL can reduce the maximum output power to keep the power supply operating safely, and/or to prevent excessive current draw tripping the mains breaker. Refer to Operation Manual.
