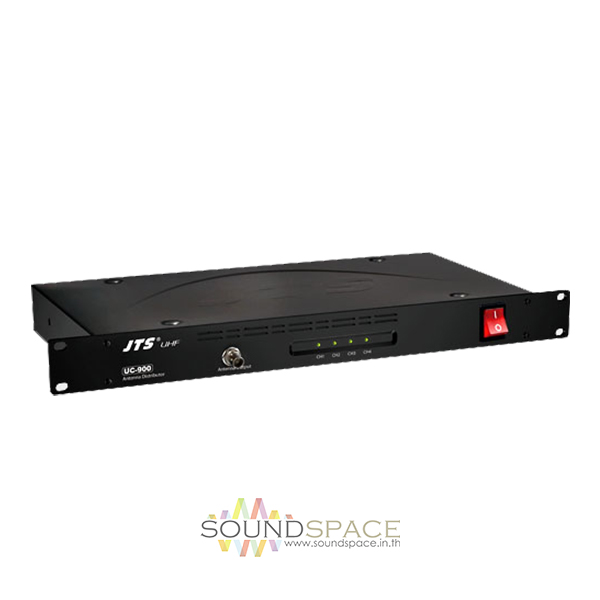

JTS UC900 Antenna Combiner

UC900 Antenna Combiner It is designed to improve RF performance by reducing intermodulation distortion..

ราคาไม่รวมภาษีมูลค่าเพิ่ม

฿12,700.00 ฿10,800.00

สอบถามและสั่งซื้อสินค้า

Description

JTS UC900 Antenna Combiner

UC900 Antenna Combiner It is designed to improve RF performance by reducing intermodulation distortion.

This 4 inputs and 1 output antenna combiner is compatible with transmitters like SIEM-2T, TG-10STX, TG-10GSTX and other transmitters with BNC antenna connecters. It is designed to improve RF performance by reducing intermodulation distortion. This product will also help to save investment in antenna systems. * Provides 4 DC outputs each of 12 V x 800 mA for 4 sets of transmitters.

Capture

Features:

  • Frequency Range 470~970 Mhz
  • Full System Gain 0dB(±2dB)
  • VSWR Input / Output 5:1
  • RF Input Power +20dBm (100mW)
  • Input Signal Indicator Threshold +5dBm
  • Power Consumption 6W
  • Input/Output Connectors BNC female
  • (4 input at back,1 output at front)
  • DC female
  • (4 input, Maximum Power OutputLimit at 12V/1A)
  • Input Voltage 100~240VAC MAX2A 50/60Hz
  • Dimensions 480 (W) * 45 (H) * 260 (D)
  • Wieght 3kg





Specifications

UC-900 Antenna Combiner
Frequency Range 470~970 Mhz
Full System Gain 0dB(±2dB)
VSWR Input / Output 1.5:1
RF Input Power +20dBm (100mW)
Input Signal Indicator Threshold +5dBm
Power Consumption 6W
Input/Output Connectors BNC female
(4 input at back,1 output at front)
DC female
(4 input, Maximum Power OutputLimit at 12V/1A)
Input Voltage  100~240VAC MAX2A 50/60Hz
Dimensions 480 (W) * 45 (H) * 260 (D)
Wieght 2.3kg
