Description

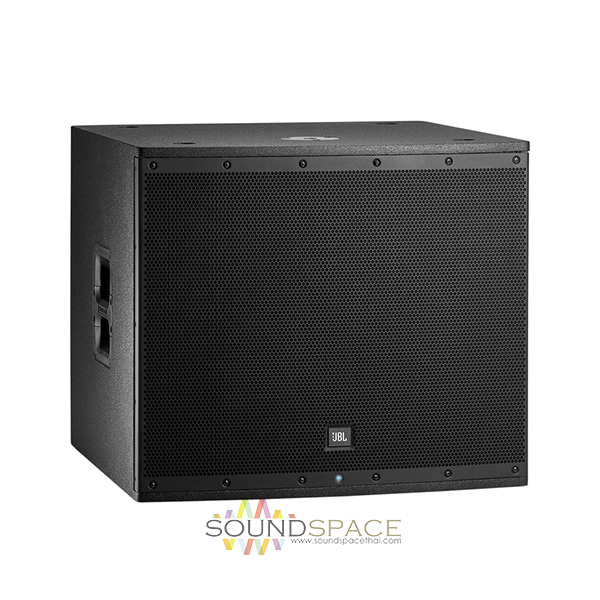

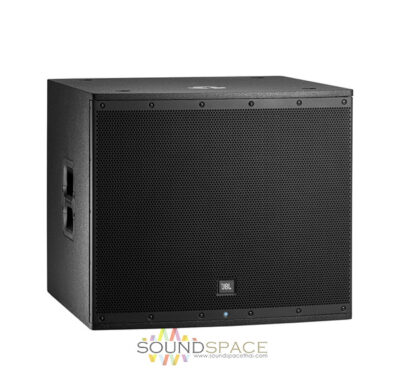

JBL EON618S 18″ Powered Subwoofer 1000W
ตู้ลำโพงซับเบสกลางแจ้งแบบมีกำลังขยาย 1000W Class D Amplification JBL EON 618s ตัวตู้ทำด้วยไม้ ขนาดดอกลำโพง 18″, ตอบสนองความถี่ (- 3 dB): 42.5 Hz – 150 Hz, Crossover Presets: 80 Hz, 100 Hz , 120 Hz
The EON618S is a powered portable PA subwoofer in the EON600 series from JBL Professional. It has been designed to deliver class leading performance in a variety of applications supporting EON600 and other full range systems. A lightweight, highly useful enclosure allows the speaker to be easily transported and set up wherever low frequency reinforcement is needed.
Features:
- 1000 W Class-D amplification
- Maximum SPL Output: 134 dB
- Frequency Range (-10 dB): 31 Hz – 150 Hz
- Frequency Response (- 3 dB): 42.5 Hz – 150 Hz
- Bluetooth Control
- 3 Parametric EQs + Hi & Lo Shelf • Gain and Delay
- Save and Recall settings
- Polarity inversion
- Crossover Presets: 80 Hz, 100 Hz , 120 Hz
- M20 pole cup
- Rugged, stage-ready Duraflex enclosure
Specifications
JBL EON618S 18″ Powered Subwoofer
| System Type |
Self-powered 18″ subwoofer |
| Max SPL Level |
134 dB |
| Frequency Range |
31 Hz – 150 Hz, (-10 dB) |
| Frequency Response |
42.5 Hz – 150 Hz, (±3 dB) |
| Power Rating |
1000 W peak, 500 W continuous |
| Input Impedance |
22 kOhms (balanced) |
| Line Input |
Line Input Gain: 0 to 36 dBu
Line: +14 dBu |

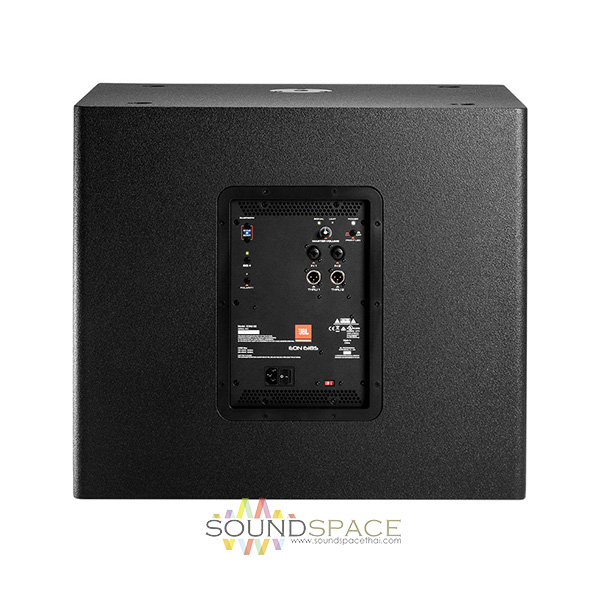

| Connectors |
2 x Balanced XLR-1/4″ combination inputs
2 x Male XLR loop thru out |
| LED Indicators |
Front Power LED (defeatable, white) Rear Power LED (White), Bluetooth (Blue), EQ+ (Green) Preset (Green) Signal (Green) Limit (Orange) |
| Cooling |
Passive |
| AC Power Consumption |
1/8th Power – 1.14 A (Max), 1/4th Power – 1.71 A (Max), 1/3rd Power – 2.03 A (Max) |

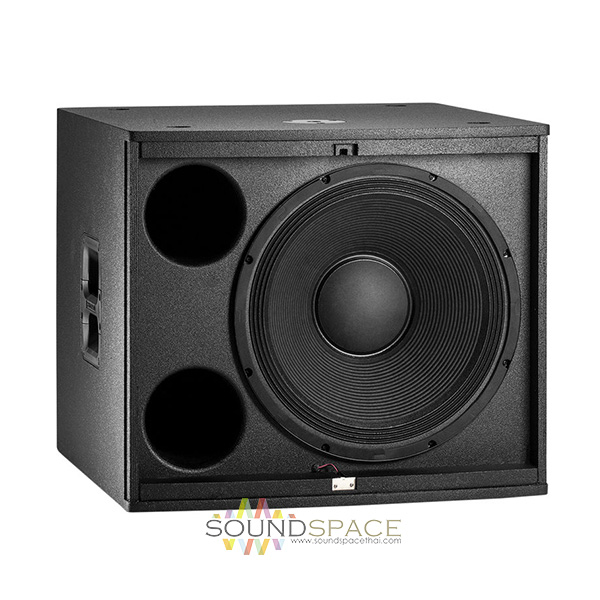

| LF Driver Size |
1 x JBL 618H 18″ (457 mm) woofer with 2″ voice coil |
| AC Power |
100 – 120 VAC 50/60 Hz; 230-240 VAC 50/60 Hz |
| Crossover Frequency |
Selectable; 80 Hz, 100 Hz, or 120 Hz |
| Material |
Duraflex coated wooden enclosure |
| Suspension |
M20 threaded pole cup |
| Handles |
2 |
| Grille |
Powder coated, Obsidian, perforated steel with acoustically transparent black cloth backing |
| Dimensions (H x W x D) |
22.9 x 26.3 x 25.4 (582 x 668 x 645 mm) |
| Weight |
72 lb (35.5 kg) |
