ลำโพงติดฝ้าเพดาน JBL Control 26DT Ceiling Speaker 6.5″
ลำโพงติดฝ้าเพดาน JBL Control 26DT เป็นลำโพงแบบ 2-Way Coaxial Speaker, มีขนาดดอดลำโพง 6.5 นิ้ว Polypropylene-coated, 1″ coil on aluminum former เสียงแหลม 0.75 นิ้ว Titanium-coated Polyester, ทนกำลังขับ 150 Watts, ตอบสนองความถี่ 95 Hz – 18 kHz (-3 dB)
ราคาไม่รวมภาษีมูลค่าเพิ่ม….เป็นราคาใบละ…
฿7,500.00 ฿7,120.00
Description

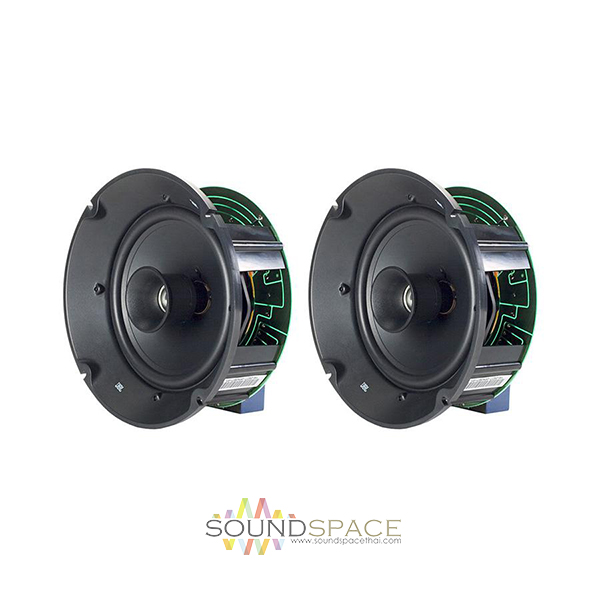

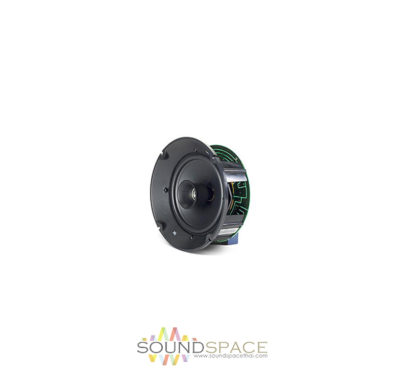

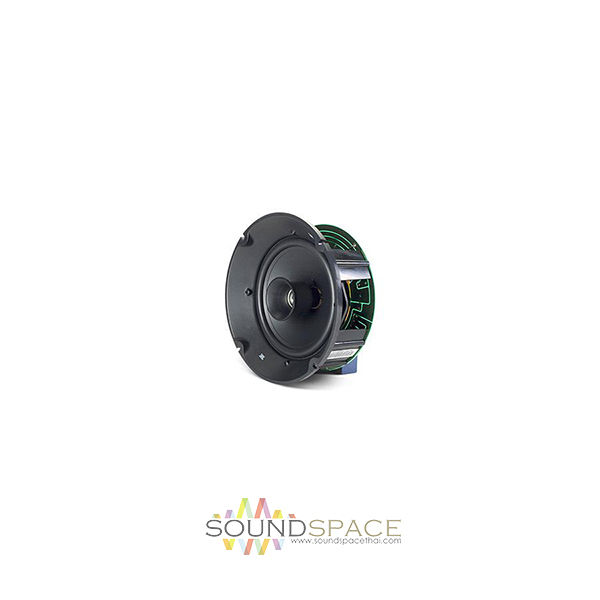

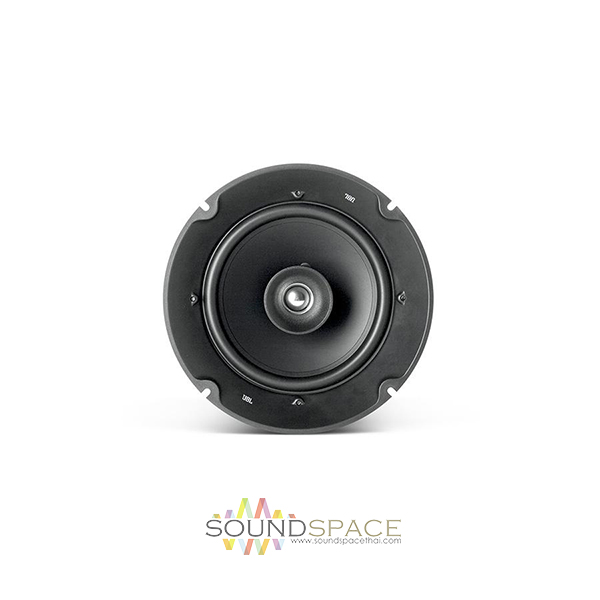

JBL Control 26DT Coaxial Ceiling Speaker Assembly with Transformer 150 W
ลำโพงติดฝ้าเพดาน JBL Control 26DT เป็นลำโพงแบบ 2-Way Coaxial Speaker, มีขนาดดอดลำโพง 6.5 นิ้ว Polypropylene-coated, 1″ coil on aluminum former เสียงแหลม 0.75 นิ้ว Titanium-coated Polyester, ทนกำลังขับ 150 วัตต์, ตอบสนองความถี่ 95 Hz – 18 kHz (-3 dB)
The Control 26-DT is a compact ceiling speaker assembly configured to install into standard ceiling backcans designed for 200 mm (8″) drivers.
Features:
- Coaxial ceiling installation speaker assembly with built-in 70/100V multi-tap transformer and 90° coverage angle
- 6.5″ woofer matches industry mechanical specifications for standard 8″, fits most standard 8″ backcans
- Grille or backcan mountable
- Advanced crossover network for natural sound and even coverage throughout designated listening area
- Rugged, humidity-resistant coaxial woofer with durable butyl rubber surround, titanium-coated tweeter
- High 60-watt transformer power handling, wider frequency response and lower distortion design for higher quality sound reproduction
- Wider coverage with even projection allows for fewer speakers, reduces installation cost
Specifications
| Active or Passive | Passive |
| Frequency Response | 95 Hz – 18 kHz (-3 dB) |
| Power Capacity | 60 Watts (transformer) |
| Maximum Sound Pressure Level (SPL) | 106 dB @ 3.3 ft / 1 m |
| Nominal Sensitivity | 89 dB SPL, 1 W @ 3.3 ft / 1 m |
| Transformer Taps | 70 V Taps: 60, 30, 15, 7.5W 100 V Taps: 60, 30, 15W |
| Impedance | 80 Ohms min. @ 247 Hz (60 Watts) |
| Crossover | 3.5 kHz |
| Shielded | No |
| Low-Frequency Driver | 6.5″ Polypropylene-coated, 1″ coil on aluminum former |
| High-Frequency Driver | .75″ Titanium coated polyester |
| Mounting | 4 screw holes at 7.6″ / 194 mm diameter on center |
| Input Connections | Screw-locking Barrier Strip |
| Environmental | In accordance with IEC60849/EN60849 Safety Rating |
| Dimensions (HxD) | 4.72 x 7.87″ / 120 x 200 mm |
| Weight | 4.2 lb / 91.9 kg |
| Specialties | Coaxial Speaker Design Multi-tap Transformer for 70 and 100V Systems Fits most Backcans 90° Coverage Pattern |
