Description

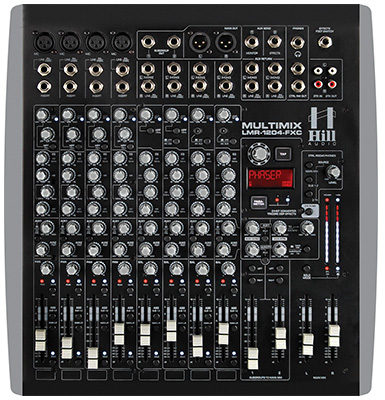

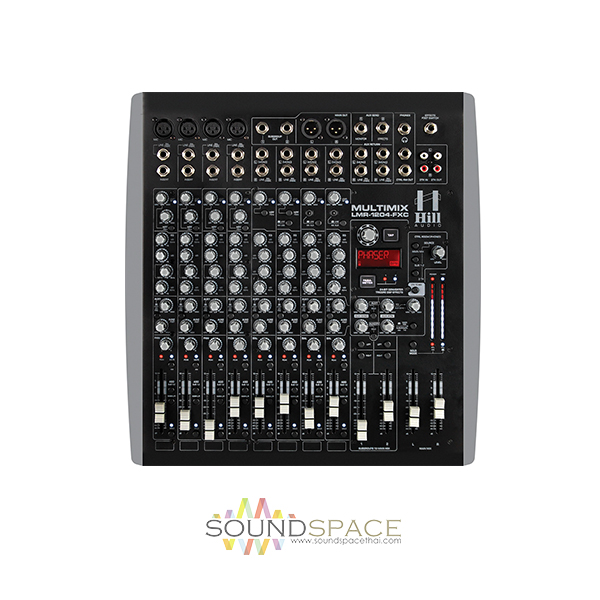

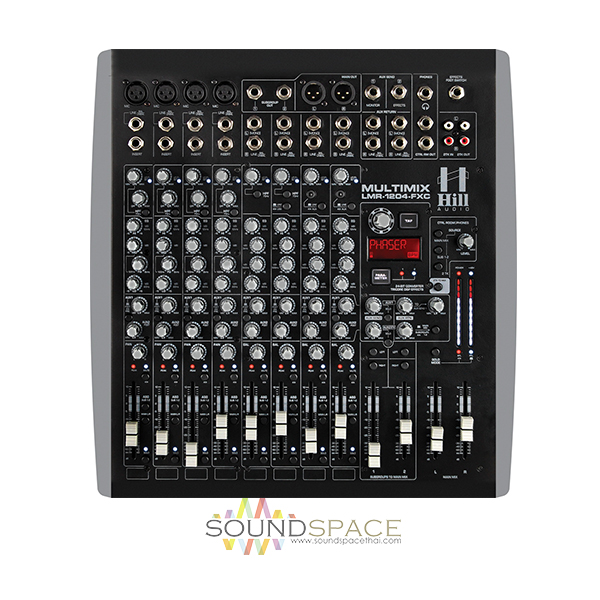

Hill Audio LMR1204FX Stage Mixer with EFX
เครื่องผสมสัญญาณเสียง Hill Audio LMR1204FX, 4- mono microphone, 4 stereo Line inputs with gain control, 4-band shelving EQ, 2 Subgroups,DSP 24-Bit stereo effects processor
The Hill Audio Multimix LMR-1204-FXC-U is a 19’’-rackable live mixing desk following the 30-year Multimix family tradition. It comprises everything required for a small live event: one-knob compressors in the mic/line inputs make dynamics management easy, and the subgroups grant a structured approach to the mixdown. 2 AUX busses, one of them assignable for monitor purposes, and a flexible routing of the AUX signals including a sophisticated internal effects processor with upto 3 editable parameters per algorithm, provide flexibility. A USB audio interface for basic stereo replay and recording completes this comprehensive mixer concept.
Features:
- 4 mono mic/line inputs with gain control, one-knob compressor, 75Hz highpass filter, 4-band semiparametric EQ, 2 AUX busses, pan control and peak LED
- 4 stereo Line inputs with gain control, 4-band shelving EQ, balance control and peak LED
- 3.5mm Mini TRS stereo inputs in two stereo channels
- 60mm faders for level control in all channels
- All mic channels with insert jack
- Channels assignable to Master (LR) or the subgroups
- 2 Subgroups with external outputs, assignable to Master L or R, 60mm fader per subgroup
- Switchable +48V phantom power for microphone inputs
- One AUX bus fixed post-fader (assigned to internal effects), one AUX bus switchable pre/post
- Post-fader AUX return re-routable to Monitor AUX send
- TriCore DSP 24-Bit stereo effects processor with LCD display, external output and footswitch control. 15 algorithms in 6 groups, editable in up to 3 parameters per algorithm. Tap tempo function.
- Stereo tape record/playback port with flexible routing
- USB stereo soundcard for replay and recording
- Control Room/headphones output with selectable source
- Main output with 60mm fader and 2×10 LED level meter
- SOLO function for channels and AUX send, PFL/AFL
- Internal switch mode power supply
- Full metal case with detachable plastic side panels andmountable metal rack ears (included)
