ลำโพงห้องอัด GENELEC 8030C WM 5″ Studio Monitor

NEW 2017…ลำโพงห้องบันทึกเสียงแบบมีกำลังขยายในตัว Genelec 8030W PM สีขาว เปนลำโพงรุ่นใหม่ล่าสุด (2017) ที่ออกมาแทนรุ่น 8030B เดิม ขนาดดอกลำโพง Woofer 5 นิ้ว + Tweeter 3/4 นิ้ว metal dome + DCW™ โดยมีการเพิ่มกำลังขับเป็น Woofer 50 W + Tweeter 50 W (both Class D)


฿30,100.00 ฿24,000.00



Genelec 8030W PM Active Two-Way 5″ Studio Monitor White

ลำโพงห้องบันทึกเสียงแบบมีกำลังขยายในตัว Genelec 8030W PM สีขาว เปนลำโพงรุ่นใหม่ล่าสุด (2017) ที่ออกมาแทนรุ่น 8030B เดิม ขนาดดอกลำโพง Woofer 5 นิ้ว + Tweeter 3/4 นิ้ว metal dome + DCW™ โดยมีการเพิ่มกำลังขับเป็น Woofer 50 W + Tweeter 50 W (both Class D)

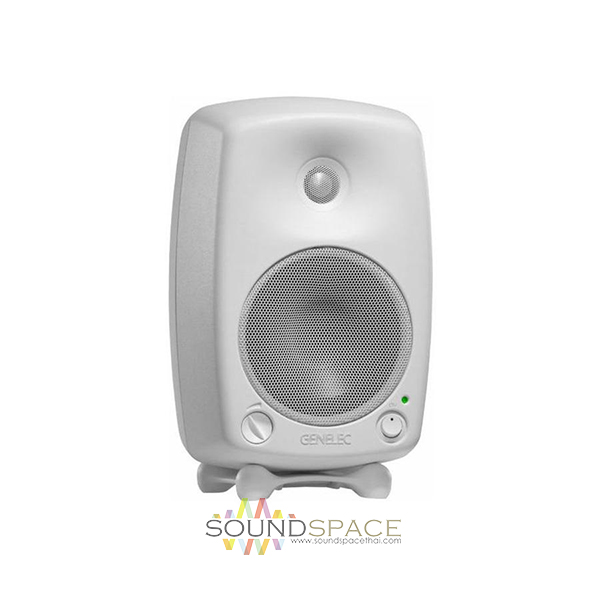

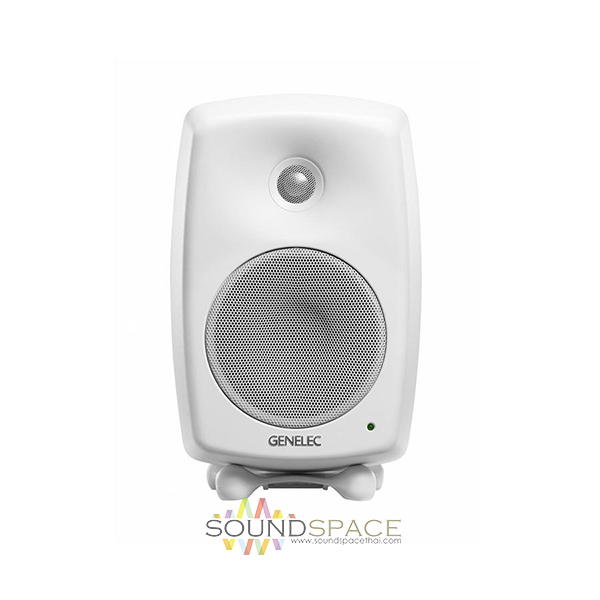

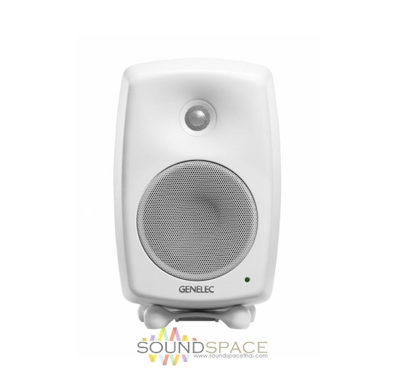

The 8030C Active Two-Way 5″ Studio Monitor from Genelec provides an accurate reproduction of the source material in a compact design, well suited for near field monitoring, mobile vans, broadcast and TV control rooms, surround systems, home studios, and multimedia applications. The cabinet features Minimum Diffraction Enclosure (MDE) technology, which is constructed from all-aluminum in a rounded shape, which minimizes distortions caused by edge diffraction. The metal dome tweeter is surrounded by a smoothly shaped Directivity Controlled Waveguide (DCW), which helps to create an even response when listening both on and off axis.

The 8030C is built with Intelligent Signal Sensing (ISS) technology which automatically activates the speaker when an audio signal is detected, and puts it into Standby Mode when no signal is present, reducing the energy consumption to less than 0.5 watts. The 8030C features a 50-watt high frequency amplifier for its 3/4″ tweeter, and a 50-watt low-frequency amplifier for its 5″ woofer. The bass response is expanded by a rear-facing reflex port, and a separately available Genelec 7050B active subwoofer can be used to monitor a wider array of frequencies.

Key Technologies :

  • Active crossover filters
  • Optimized amplifiers
  • Driver unit protection circuitry
  • Fully magnetically shielded
  • Directivity Control Waveguide (DCW) technology
  • Minimum Diffraction Enclosure (MDE) technology

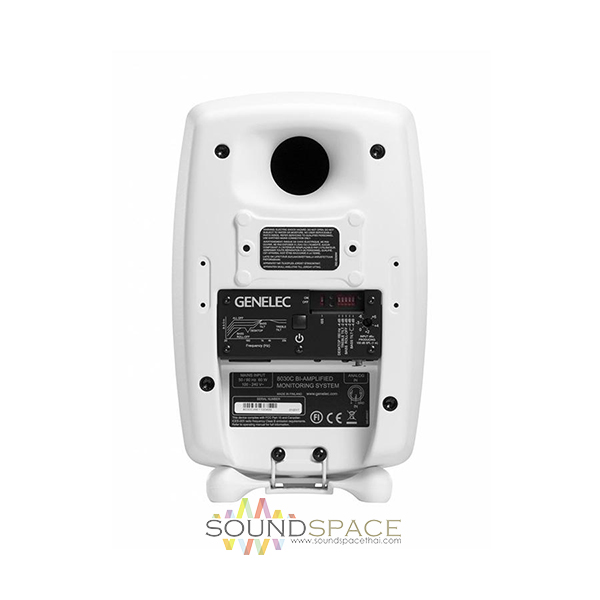

  • Reflex port design
  • Room response compensation via Tone Controls, which optimize the speaker to its environment
  • Intelligent Signal Sensing (ISS) technology saves electricity
  • Iso-Pod table stand insulates the speaker from vibration and enables you to tilt its position upward or downward
  • Versatile mounting options with threading for ceiling and wall mounts


Cut-Off Frequency Lower: ≤ 56 Hz at -6 dB
Upper: ≥ 25 kHz at -6 dB
Frequency Response 62 Hz to 20 kHz (±2.5 dB)
SPL ≥ 100 dB SPL maximum (short-term sine-wave acoustic output on axis in half-space, averaged from 100 Hz to 3 kHz at 3.3′ / 1 m)
93 dB SPL maximum (long-term RMS acoustic output in the same conditions with IEC weighted noise (limited by driver protection circuit) at 3.3′ / 1 m)
Peak Output Capacity ≥ 107 db maximum peak acoustic output (per pair in listening room with music material at 3.3′ / 1 m)
Self-Generated Noise Level ≤ 5 dB (in free field at 3.3′ / 1 m on axis (A-weighted))
Harmonic Distortion < 3% (at 85 dB SPL at 3.3′ / 1 m on axis, 50 to 200 Hz)
< 0.5% (at 85 dB SPL at 3.3′ / 1 m on axis, higher than 200 Hz)
Drivers Bass: 4″ / 105 mm cone
Treble: ¾” / 19 mm metal dome
Both drivers are magnetically shielded
Amplifier Bass Amplifier Short-Term Output Power: 50 W
Treble Amplifier Short-Term Output Power: 50 W
Long-term output power is limited by driver protection circuitry
THD ≤ 0.05% at nominal output
Crossover Frequency Bass/Treble: 3 kHz
Digital Controls GLM Software Frequency Response Adjustment
Parametric Notch Filters: 16x
Shelving Filters: 2 x LF and 2 x HF
System Room Response Calibration: Genelec GLM AutoCal, GLM manual, standalone
Mains Voltage 100 to 240 VAC 50/60 Hz
Power Consumption Idle: 3 W
Standby: < 0.5 W
Full Output: 60 W
Analog Input XLR female, balanced (pin 1 ground, pin 2 positive, pin 3 negative)
Input Level -6 dBu at volume control max (for 100 dB SPL at 3.3′ / 1 m)
Input Impedance 10 kOhms
Sensitivity -12 dB (constantly variable, control range relative to maximum output)
Controls Treble Tilt Control (operating range): 0 to -2 dB at 15 kHz
Desktop 200-Hz Control: -4 dB at 200 Hz
Bass Roll-Off Control: 0 to -4 dB at 65 Hz
Analog Input Maximum Analog Input Level: +24 dBu
Analog Input Sensitivity: -6 dBu (100 dBSPL at 3.3′ / 1 m)
Analog Input Sensitivity Control: Adjustable from +36 to -6 dBu
Dimensions (H x W x D) 9.5 x 6.0 x 5.6″ / 242.0 x 151.0 x 142.0 mm, Iso-Pod stand included
9.1 x 6.0 x 5.6″ / 230.0 x 151.0 x 142.0 mm, Iso-Pod stand excluded
Weight 7.0 lb / 3.2 kg
